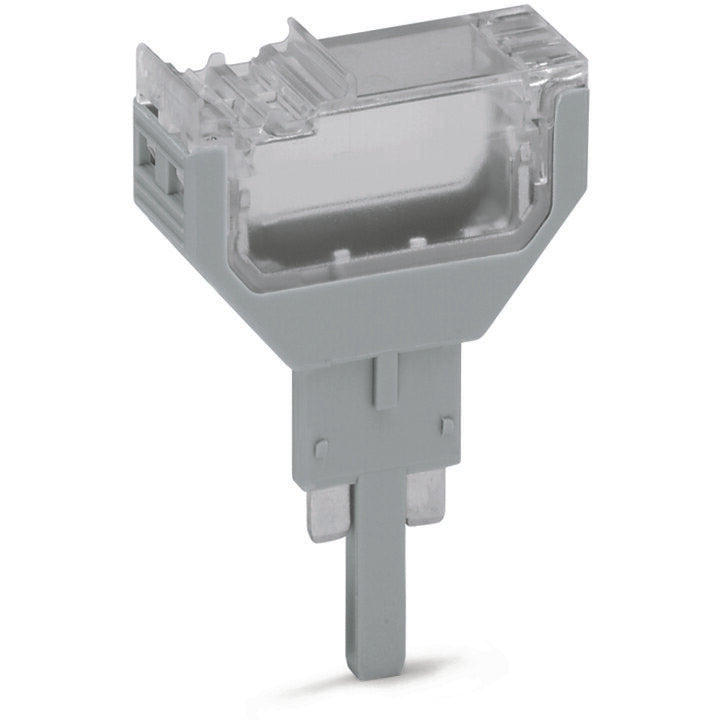

WAGO - 2002-810

Empty component plug housing - type 2 - WAGO (2002 TOPJOB S series) - 2-poles (2P) - Gray color - Plug-in mounting - equivalent to 2002810

Specifications

• Primary brand: WAGO
• Functions: Empty component plug housing
• Design: type 2
• Poles: 2-poles (2P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Gray
• Mounting mode: Plug-in
• Dimensions: W10.4mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• GTIN code: 4045454857776
• ETIM code: EC002018
• eClass code: 27-14-11-49
• Order code / Manufacturer SKU: 2002-810
• Manufacturer product status: Commercialized
• Equivalent to: 2002810
• EAN code: 4045454857776
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Empty component plug housing - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-49
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC002018
• ETIM 9.0: EC002018
• GTIN: 4045454857776
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 50 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.118MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 3.4g

Mechanical data

• Marking level: Center marking

Physical data

• Depth: 41.8 mm / 1.646 inches
• Height: 29.6 mm / 1.165 inches
• Width: 10.4 mm / 0.409 inches
