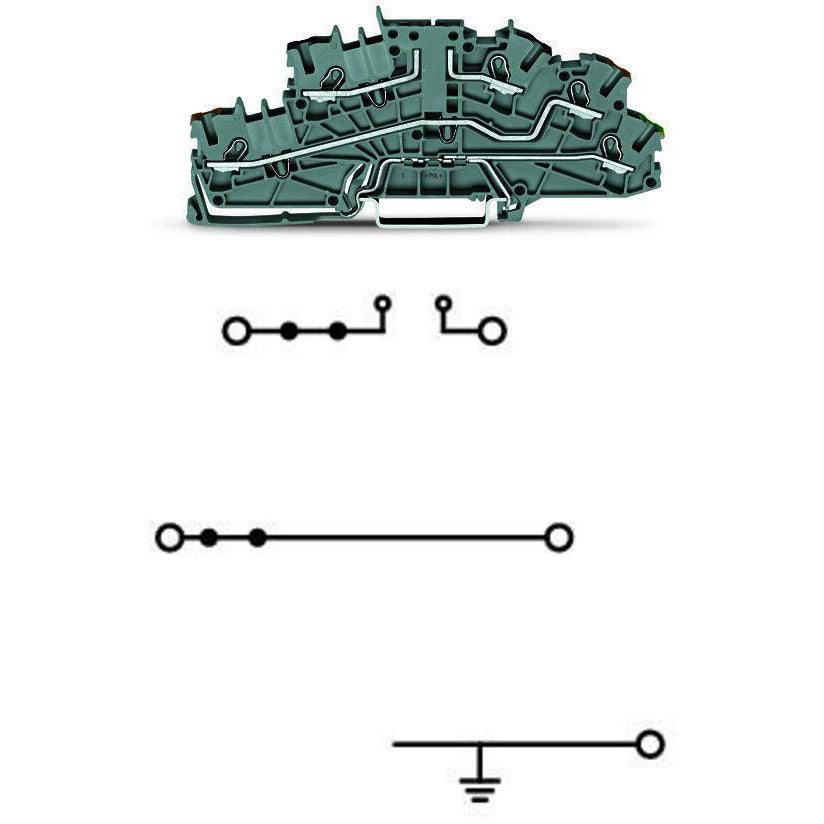

Multilevel installation feed-through/thru + ground/earthing terminal block with 3-decks/levels (triple-deck) + pluggable-disconnect + side/lateral and center marking slots - with "L/L/PE" marking - WAGO (2003 TOPJOB S series) - Gray - 2 feed-through poles + protective-earth (2P+PE) / 5-wires (2 push-in + 3 push-in) (2+3) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 20A / 25A - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (5.2mm width) - equivalent to 20036662

Specifications

• Primary brand: WAGO
• Functions: Multilevel installation feed-through/thru + ground/earthing terminal block
• Design: 3-decks/levels (triple-deck)|pluggable-disconnect|side/lateral and center marking slots
• Poles: 2 feed-through poles + protective-earth (2P+PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 20A|(IEC) 25A|(UL) 6.3A|(CSA) 20A
• Color: Gray
• Connection capacity: 5-wires (2 push-in + 3 push-in) (2+3)
• Rated operating voltage (Ue): (IEC) 250V|(IEC) 400V|(UL) 250V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV|(IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 0.75mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #18AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: DIN-35 rail
• Dimensions: H110mm x W5.2mm x D45.2mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• ETIM code: EC001329
• GTIN code: 4055143987219
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 2003-6662
• Manufacturer product status: Commercialized
• Equivalent to: 20036662
• EAN code: 4055143987219
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 70111102|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Marking: "L/L/PE"
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Multilevel installation feed-through/thru + ground/earthing terminal block - 3-decks/levels (triple-deck) - WAGO (TOPJOB S series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001329
• ETIM 9.0: EC001329
• GTIN: 4055143987219
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 3
• Total number of potentials: 3

Electrical data

• Power Loss - Power loss, per pole (potential): 0.133W
• Power Loss - Rated current I_N for specified power loss: 10A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 20A
• Ratings per CSA - Rated current CSA (Use Group D): 10A|10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V|300V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 25A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 20A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Ratings: Potential - ground
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per IEC/EN – Notes - Rated current (note): Maximum current depends on accessories used.
• Ratings per IEC/EN 2 - Current at conductor cross-section (max.): 25A
• Ratings per IEC/EN 2 - Rated current: 20A
• Ratings per IEC/EN 2 - Rated impulse withstand voltage (III/3): 6kV
• Ratings per IEC/EN 2 - Rated voltage (III/3): 400V
• Ratings per IEC/EN 2 - Ratings: Potential - potential
• Ratings per IEC/EN 2 - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 6.3A
• Ratings per UL - Rated current UL (Use Group C): 6.3A
• Ratings per UL - Rated current UL (Use Group D): 6.3A
• Ratings per UL - Rated voltage UL (Use Group B): 250V
• Ratings per UL - Rated voltage UL (Use Group C): 150V
• Ratings per UL - Rated voltage UL (Use Group D): 250V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.309MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.9g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail
• Potential marking: L/L/PE

Physical data

• Depth from upper-edge of DIN-rail: 45.2 mm / 1.78 inches
• Height: 110 mm / 4.331 inches
• Width: 5.2 mm / 0.205 inches
