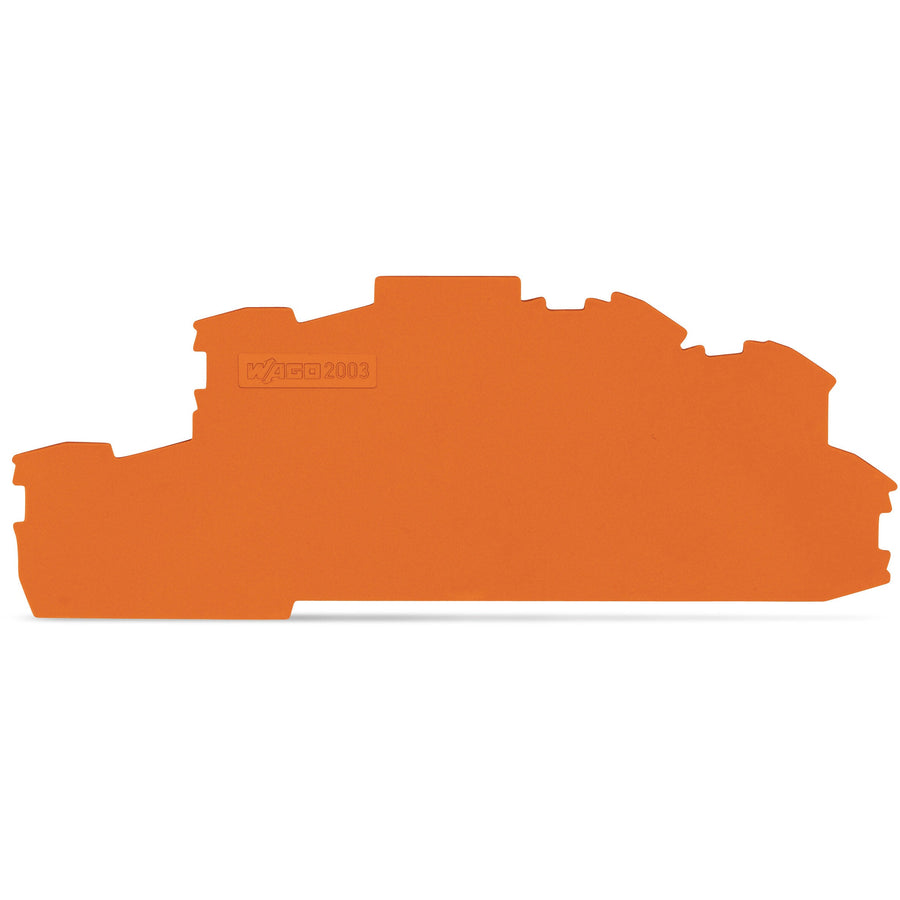

WAGO - 2003-6692

End and intermediate plate - WAGO (2003 TOPJOB S series) - Orange color (0.8mm width) - equivalent to 20036692

Specifications

• Primary brand: WAGO
• Functions: End and intermediate plate
• Color: Orange
• Dimensions: H110mm x W0.8mm x D44.3mm
• Net Width (mm): 0.8mm
• Material: Polyamide (PA) 66
• GTIN code: 4050821322108
• Customs Tariff Number: 85389099990
• eClass code: 27-14-11-33
• ETIM code: EC000886
• Order code / Manufacturer SKU: 2003-6692
• Manufacturer product status: Commercialized
• Equivalent to: 20036692
• EAN code: 4050821322108
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: End and intermediate plate - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4050821322108
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: orange
• Fire load: 0.099MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 3.4g

Mechanical data

• Mounting type: snap-on type

Physical data

• Depth: 44.3 mm / 1.744 inches
• Height: 110 mm / 4.331 inches
• Width: 0.8 mm / 0.031 inches
