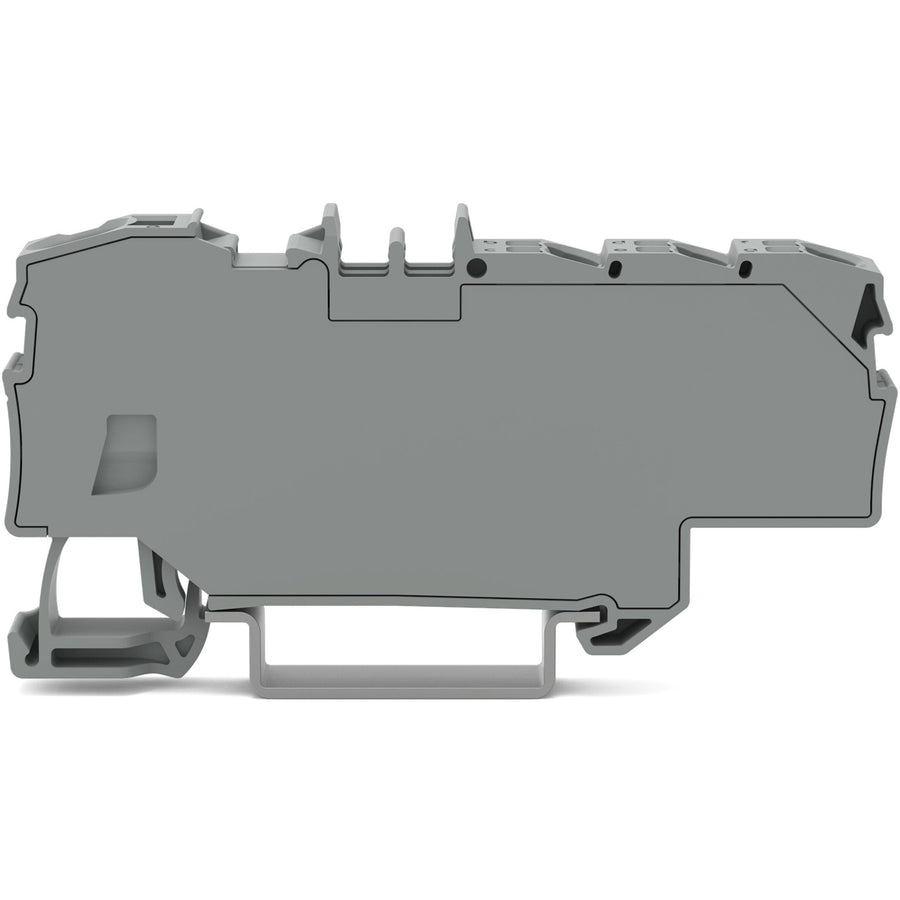

Feed-through/thru distribution terminal block with 1-deck/level + built-in end plate (terminal is closed on both sides) + side/lateral and center marking slots - WAGO (2006 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 7-wires (1 push-in + 6 push-in) (1+6) - 6mm2 nominal cross-section - for 0.5mm2...10mm2 / for #20AWG...#8AWG - Rated current 41A / 57A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (9mm width) - equivalent to 20068031

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru distribution terminal block
• Design: 1-deck/level|built-in end plate (terminal is closed on both sides)|side/lateral and center marking slots|2 jumper slots
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 41A|(IEC) 57A
• Color: Gray
• Connection capacity: 7-wires (1 push-in + 6 push-in) (1+6)
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...10mm2 fine stranded or solid conductors|for 0.5mm2...6mm2 fine stranded conductors with insulated ferrule|for 2.5mm2...6mm2 fine stranded conductors with ferrule; push-in termination|for 2.5mm2...10mm2 solid conductors; push-in termination|for #20AWG...#8AWG fine stranded or solid conductors|for #20AWG...#10AWG fine stranded conductors with insulated ferrule|for #16AWG...#10AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#8AWG solid conductors; push-in termination|6mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H73.8mm x W9mm x D32.9mm
• Net Width (mm): 9mm
• Material: Polyamide (PA) 66
• GTIN code: 4066966185751
• ETIM code: EC000897
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 2006-8031
• Manufacturer product status: Commercialized
• Equivalent to: 20068031
• EAN code: 4066966185751
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7925/1|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 71-122840 REV.1|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E 185892 (AEx eb IIC Gb / Ex eb IIC Gb)|- CCCEx - CQST/CNEx - GB/T 3836.3 - certificate 2020312313000231|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru distribution terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4066966185751
• Packaging type: Box
• PU (SPU): 12 pcs

Connection data

• Clamping units: 7
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Connection type 1: Input
• Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Nominal cross-section: 6 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Number of connection points: 1
• Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Solid conductor; push-in termination: 2.5 … 10 mm² / 14 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Connection technology: Push-in CAGE CLAMP^®
• Connection 2 - Connection type: Output
• Connection 2 - Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 2 - Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
• Connection 2 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Connection 2 - Nominal cross-section: 1.5 mm²
• Connection 2 - Number of connection points: 6
• Connection 2 - Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 2 - Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
• Connection 2 - Strip length: 9 … 11 mm / 0.35 … 0.43 inches
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 1.311W
• Power Loss - Rated current I_N for specified power loss: 41A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 57A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Fire load: 0.32MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 16.2g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 73.8 mm / 2.905 inches
• Width: 9 mm / 0.354 inches
