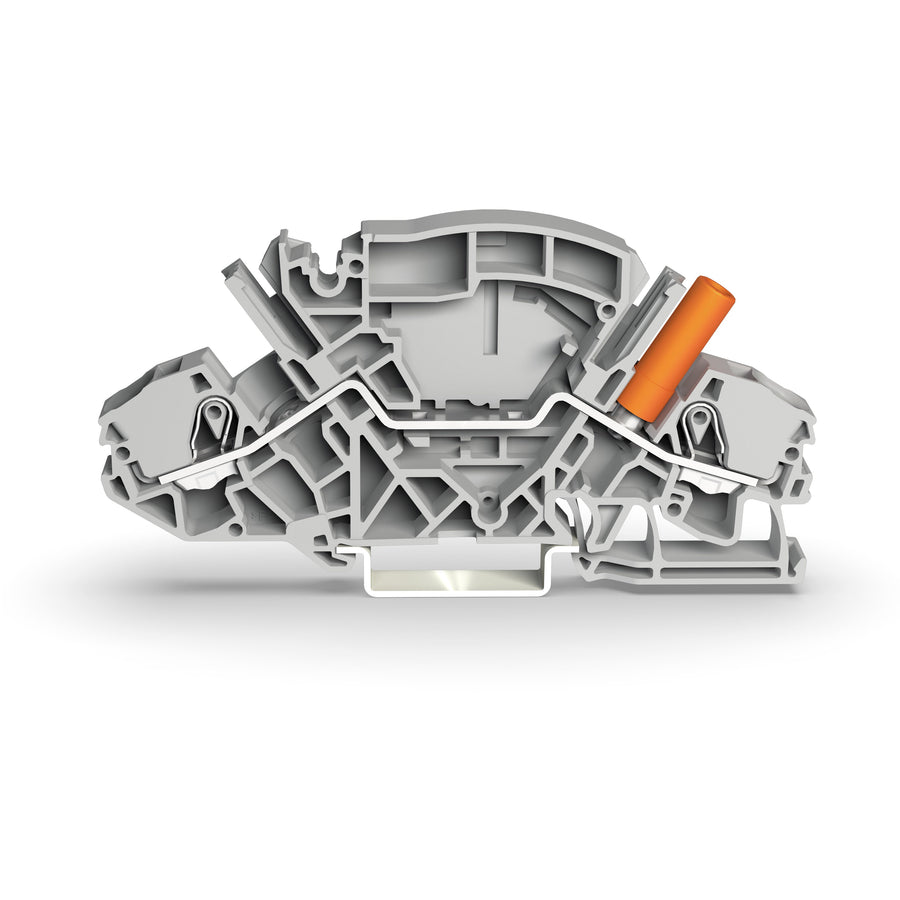

Feed-through/thru terminal block with 1-deck/level + side/lateral and center marking slots - with touchproof test point - WAGO (2007 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 2-wires (1 push-in + 1 push-in) (1+1) - 6mm2 nominal cross-section - for 0.5mm2...10mm2 / for #20AWG...#8AWG - Rated current 30A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 20078801

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral and center marking slots|2 jumper slots|with touchproof test point
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 30A|(UL) 30A|(CSA) 30A
• Color: Gray
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...10mm2 fine stranded or solid conductors|for 0.5mm2...6mm2 fine stranded conductors with insulated ferrule|for 2.5mm2...6mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...10mm2 solid conductors; push-in termination|for #20AWG...#8AWG fine stranded or solid conductors|for #20AWG...#10AWG fine stranded conductors with insulated ferrule|for #16AWG...#10AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#8AWG solid conductors; push-in termination|6mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H99.6mm x W8mm x D46.8mm
• Net Width (mm): 8mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-20
• ETIM code: EC000897
• GTIN code: 4055143074742
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 2007-8801
• Manufacturer product status: Commercialized
• Equivalent to: 20078801
• EAN code: 4055143074742
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 71-122099|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7911|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 70009679|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant with exemption (6(c))|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143074742
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 20 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 1.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Nominal cross-section: 6 mm² / 10 AWG
• Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 0.702W
• Power Loss - Rated current I_N for specified power loss: 30A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 30A
• Ratings per CSA - Rated current CSA (Use Group C): 30A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 30A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 30A
• Ratings per UL - Rated current UL (Use Group C): 30A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 601a98d7-272a-40d1-9338-800f44e0abc9
• SCIP notification number (Belgium): f8119565-f9e5-4f9d-9cea-850ba19284de
• SCIP notification number (Bulgaria): dcde2ab7-04dc-43eb-8417-dc5425d5123d
• SCIP notification number (Czech Republic): e55dcafe-462c-4c5b-9848-bc85925eeb42
• SCIP notification number (Denmark): 00e45482-2ac2-47f1-950b-6445fb05b635
• SCIP notification number (Finland): e957bc14-a6bc-437b-ace4-eac57f6c2151
• SCIP notification number (France): adc6786b-3e44-4ce0-81e6-1a6d0340cecd
• SCIP notification number (Germany): 6c1d2d34-984a-49da-bd2c-d2b8c90c4a19
• SCIP notification number (Hungary): c14f593c-c2d1-4922-8d85-9de53ae2e96c
• SCIP notification number (Italy): c091b7c5-9ad0-4d18-918d-3f70b5907b72
• SCIP notification number (Netherlands): 97c90059-066a-415b-9049-08161410a54d
• SCIP notification number (Poland): a499b168-8afa-4b08-984c-52a35280df7f
• SCIP notification number (Romania): 750784a7-8b51-4baa-b131-43ccc7c5c2e1
• SCIP notification number (Sweden): 680a5641-2df1-4d84-8296-9bbef87435ec

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.387MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Test socket color: orange
• Weight: 22g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 46.8 mm / 1.843 inches
• Height: 99.6 mm / 3.921 inches
• Width: 8 mm / 0.315 inches
