Part number: 20090192

$0.48

Ships in manufacturer lead time. Contact us for an ETA.

20090192

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

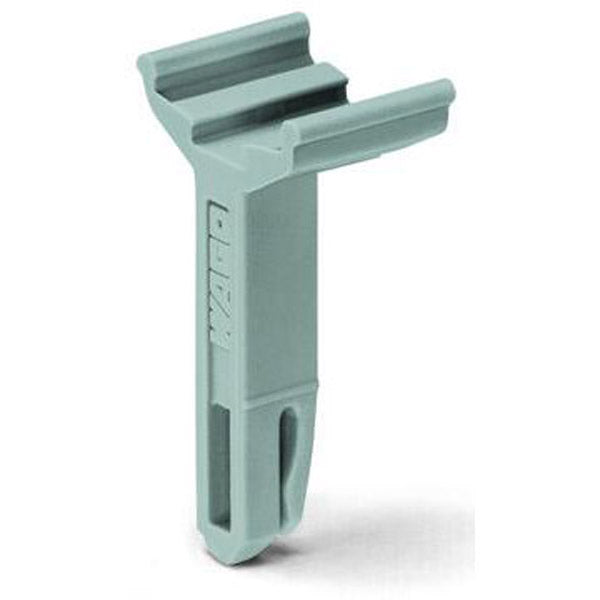

Group marker carrier - WAGO (2009 TOPJOB S series) - Gray color - Dimensions W10mm - equivalent to 2009192

Specifications

  • Primary brand: WAGO
  • Functions: Group marker carrier
  • Color: Gray
  • Dimensions: W10mm
  • GTIN code: 4044918935975
  • eClass code: 27-14-40-75
  • Customs Tariff Number: 39269097900
  • ETIM code: EC002248
  • Order code / Manufacturer SKU: 2009-192
  • Manufacturer product status: Commercialized
  • Equivalent to: 2009192
  • EAN code: 4044918935975
  • Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant
  • Location of origin: Germany
  • Level 1 category: Automation components
  • Product title: Group marker carrier - WAGO (TOPJOB S series)

Commercial data

  • Country of origin: DE
  • Customs tariff number: 39269097900
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-40-75
  • eCl@ss 9.0: 27-14-40-75
  • ETIM 8.0: EC002248
  • ETIM 9.0: EC002248
  • GTIN: 4044918935975
  • Packaging type: box
  • Product Group: 2 (Terminal Block Accessories)
  • PU (SPU): 50 (25) pcs

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
  • Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
  • Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
  • Environmental Testing (Environmental Conditions) - Frequency: f1 = 5 Hz to f2 = 150 Hz|f1 = 5 Hz to f2 = 150 Hz
  • Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
  • Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
  • Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
  • Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
  • Environmental Testing (Environmental Conditions) - Shock form: Half sine
  • Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
  • Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
  • Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
  • Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
  • Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
  • Environmental Testing (Environmental Conditions) - Test procedure
    Railway applications –
    Rolling stock equipment –
    Shock and vibration tests:     DIN EN 61373 (VDE 0115-0106):2011-04
  • Environmental Testing (Environmental Conditions) - Test specification
    Railway applications –
    Rolling stock –
    Electronic equipment:     DIN EN 50155 (VDE 0115-200):2022-06
  • Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
  • Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed

Material data

  • Color: gray
  • Fire load: 0.016MJ
  • Weight: 1.2g

Physical data

  • Width: 10 mm / 0.394 inches

Technical data

  • Suitable: snaps into jumper slot; for WMB markers or marking strips
