WAGO - 2016-7607

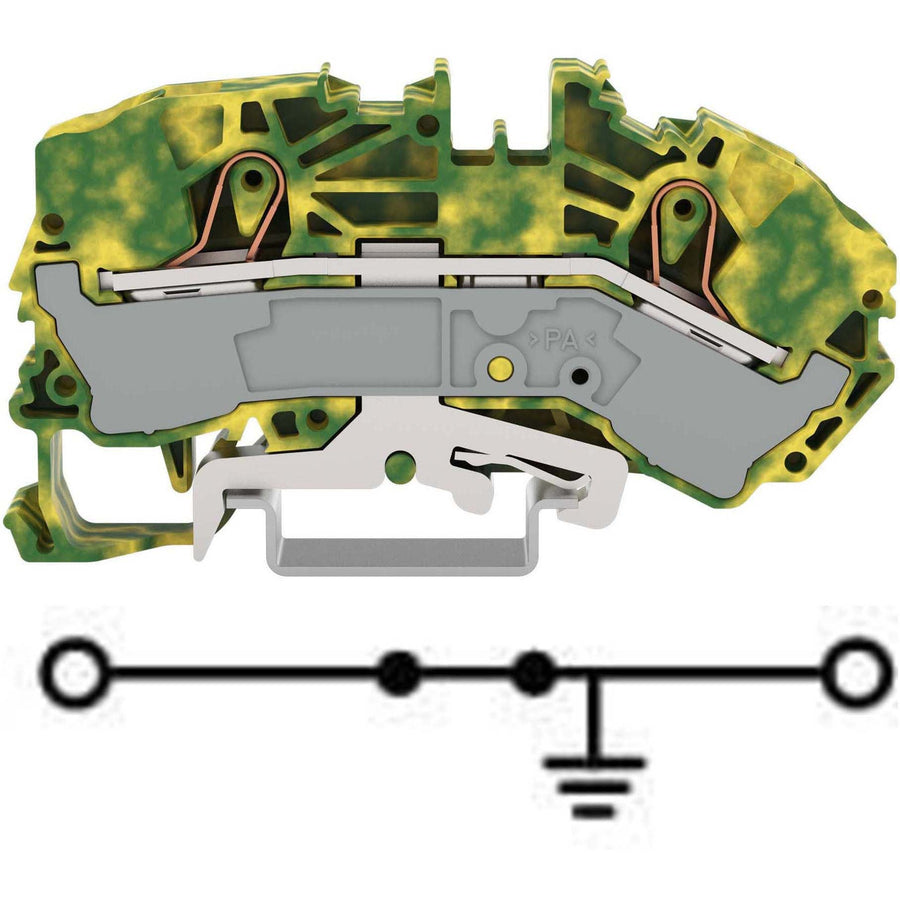

Ground/earthing terminal block with 1-deck/level + side/lateral and center marking slots - WAGO (2016 TOPJOB S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 push-in + 1 push-in) (1+1) - 16mm2 nominal cross-section of main feed-through conductor inside the terminal - for 0.5mm2...25mm2 / for #20AWG...#4AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (12mm width) - equivalent to 20167607

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|side/lateral and center marking slots|2 jumper slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...25mm2 fine stranded conductors|for 0.5mm2...16mm2 solid conductors|for 0.5mm2...16mm2 fine stranded conductors with insulated ferrule|for 6mm2...16mm2 fine stranded conductors with ferrule; push-in termination|for 6mm2...16mm2 solid conductors; push-in termination|for #20AWG...#4AWG fine stranded conductors|for #20AWG...#6AWG solid conductors|for #20AWG...#6AWG fine stranded conductors with insulated ferrule|for #10AWG...#6AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#6AWG solid conductors; push-in termination|16mm2 nominal cross-section of main feed-through conductor inside the terminal
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H85.7mm x W12mm x D40.8mm
• Net Width (mm): 12mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC000901
• eClass code: 27-14-11-41
• GTIN code: 4045454725112
• Order code / Manufacturer SKU: 2016-7607
• Manufacturer product status: Commercialized
• Equivalent to: 20167607
• EAN code: 4045454725112
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7881|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-119271|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454725112
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 20 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Nominal cross-section: 16 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  AWG specifications were converted according to IEC.
• Connection 1 - Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Solid conductor; push-in termination: 6 … 16 mm² / 14 … 6 AWG
• Connection 1 - Strip length: 18 … 20 mm / 0.71 … 0.79 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN – Notes - Rated current (note): 15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 8a7efa4a-83b9-4a45-a931-2be15094669c
• SCIP notification number (Belgium): 56bc599b-b4c5-48ca-bcfb-4e4e9b533772
• SCIP notification number (Bulgaria): 8020763f-aa1d-4631-8603-7d879788f299
• SCIP notification number (Czech Republic): 7defc346-ee83-4e2e-a480-c203417322a1
• SCIP notification number (Denmark): cfdb7c78-e29f-4057-a27f-eca2caf7dade
• SCIP notification number (Finland): 2d99618d-8a9b-4025-aa54-a01be8b67a01
• SCIP notification number (France): fa79bff4-fcc9-4754-8099-60c29d367274
• SCIP notification number (Germany): 102ed0fb-58fa-4503-895d-177d08927d63
• SCIP notification number (Hungary): 1aa38cb6-6f74-491f-bf13-ba532274cecf
• SCIP notification number (Italy): 5dcf9267-8c3c-4c08-9bd0-9b954193e648
• SCIP notification number (Netherlands): ce185ff1-560a-41cd-8fba-fd484d391ce8
• SCIP notification number (Poland): cac6eeca-3277-4142-98dd-adf12e3d3b05
• SCIP notification number (Romania): fe8f4f00-50dc-4b7e-9e26-a27a08701b67
• SCIP notification number (Sweden): 4f5a09f4-868e-49e8-ba82-024b87581726

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.062MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 43.6g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 40.8 mm / 1.606 inches
• Height: 85.7 mm / 3.374 inches
• Width: 12 mm / 0.472 inches
