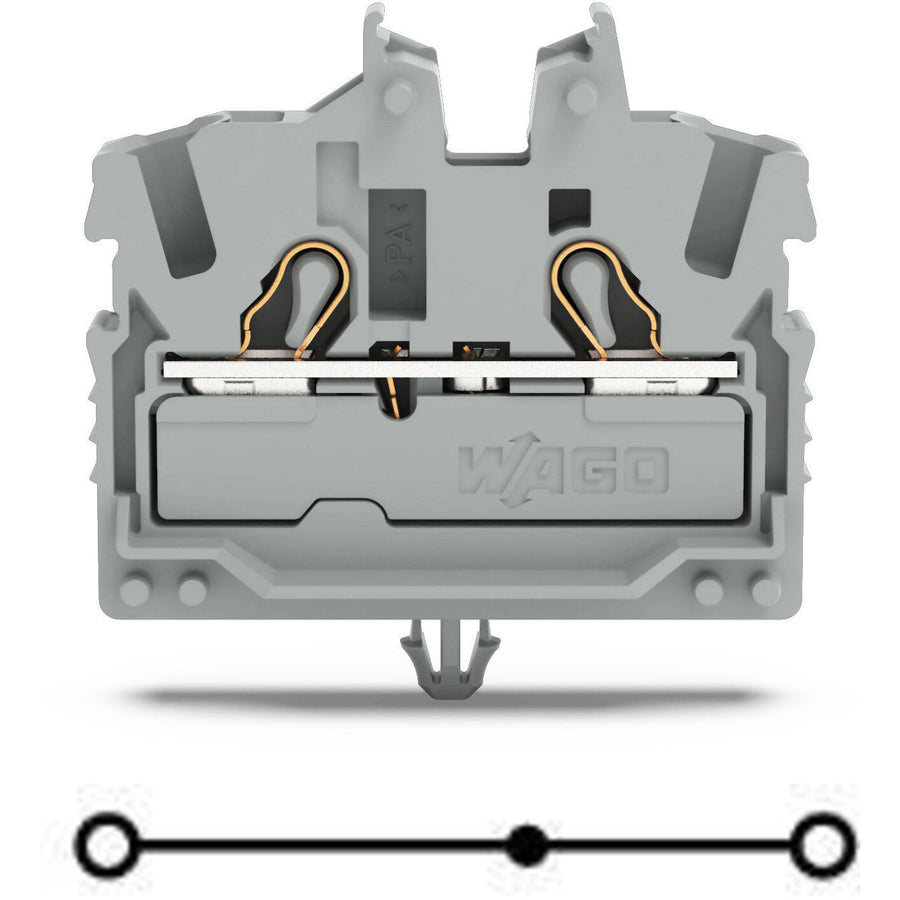

Feed-through/thru miniature terminal block with 1-deck/level + snap-in mounting foot + side/lateral and center marking slots - Suitable for Ex e II applications - with test port - WAGO (2052 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 2-wires (1 push-in + 1 push-in) (1+1) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 24A / 32A - with Push-in CAGE CLAMP spring connections - Mounts on DIN rail or surface via accessory snap-in foot mounting (5.2mm width) - equivalent to 2052311

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru miniature terminal block
• Design: 1-deck/level|snap-in mounting foot|side/lateral and center marking slots|1 jumper slot|Suitable for Ex e II applications|with test port
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 24A|(IEC) 32A|(UL) 20A|(CSA) 20A|(Ex e II) 22A|(Ex e II with jumper) 20A
• Color: Gray
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 800V|(UL) 600V|(CSA) 600V|(Ex e II) 550V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #18AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
• Dimensions: H30mm x W5.2mm x D35.5mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC001284
• GTIN code: 4066966168808
• Order code / Manufacturer SKU: 2052-311
• Manufacturer product status: Commercialized
• Equivalent to: 2052311
• EAN code: 4066966146967
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL 7885|- CSA - DEKRA Certification B.V. - C22.2 - certificate 80058059|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-119680|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN IEC 60079-0 - certificate PTB 20 ATEX 1013 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CQST/CNEx - GB/T 3836.1 - certificate 2022312313000512|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 20.0029 U (Ex eb IIC Gb resp. Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 22.0015 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: India
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru miniature terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: IN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4066966168808
• Packaging type: Box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 1 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 1
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 22A
• Ex information - Rated current (Ex e II) with jumper: 20A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Ratings per: ATEX: PTB 20 ATEX 1013 U / IECEx: PTB 20.0029U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 0.766W
• Power Loss - Rated current I_N for specified power loss: 24A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 20A
• Ratings per CSA - Rated current CSA (Use Group C): 20A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 32A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60998-2-2
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 20A
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.091MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.2g

Mechanical data

• Marking level: Center/side marking
• Mounting type: Snap-in foot

Physical data

• Depth: 35.5 mm / 1.398 inches
• Height from the surface: 30 mm / 1.181 inches
• Width: 5.2 mm / 0.205 inches
