WAGO - 2091-1710

WAGO component - equivalent to 20911710

Specifications

• Primary brand: WAGO
• GTIN code: 4055143934831
• Order code / Manufacturer SKU: 2091-1710
• Manufacturer product status: Commercialized
• Equivalent to: 20911710
• EAN code: 4055143934831

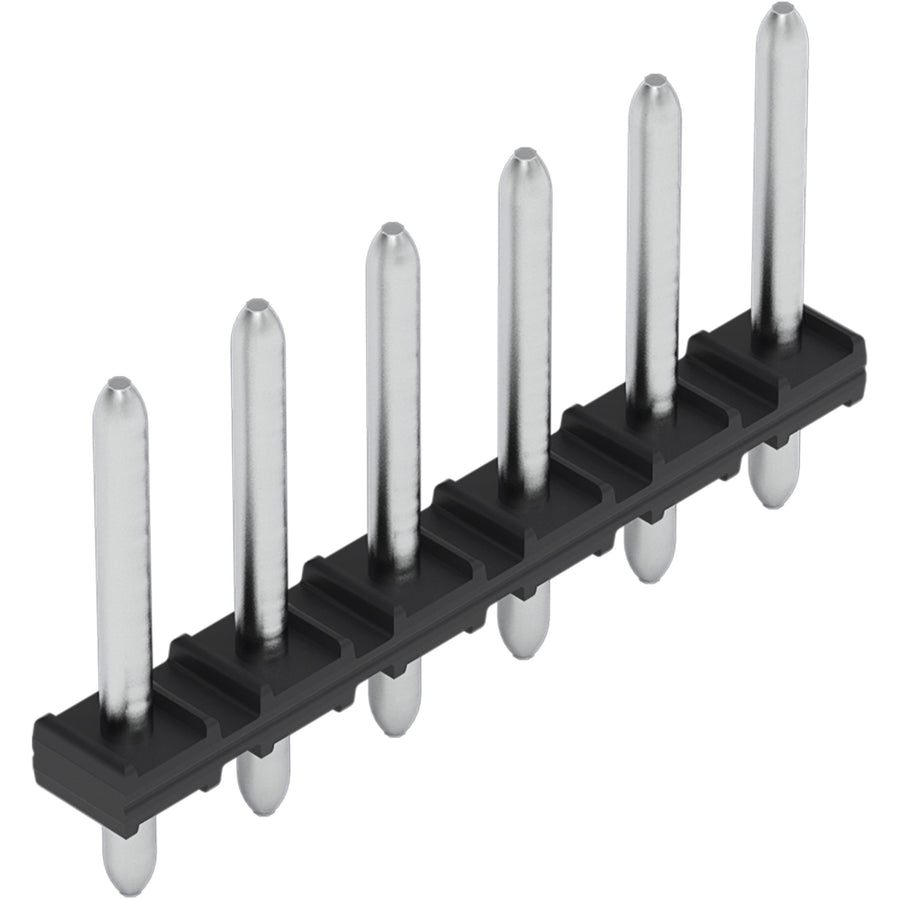

• Manufacturer description: THT pin strip; 1mm diam. solder pin; straight; Pin spacing 3.5mm; 10-pole; black
• Manufacturer product specifications: Notes - Safety Information -- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated current -- 10A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Pole number -- 10|Physical data - Pin spacing -- 3.5mm / 0.138"|Physical data - Width -- 36.5mm / 1.437"|Physical data - Height -- 12.9mm / 0.508"|Physical data - Height from the surface -- 9.3mm / 0.366"|Physical data - Depth -- 2.5mm / 0.098"|Physical data - Solder pin length -- 3.6mm|Physical data - Solder pin diameter -- 1mm|Physical data - Drilled hole diameter with tolerance -- 1.2 ^(+0.1)mm|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for PCB|Plug-in connection - Mismating protection -- No|Plug-in connection - Plugging without loss of pin spacing -- Yes|Plug-in connection - Mating direction to the PCB -- 90°|Plug-in connection - Locking of plug-in connection -- none|PCB contact - PCB contact -- THT|Material data - Color -- black|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyphthalamide (PPA GF)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Weight -- 1g|Environmental requirements - Limit temperature range -- -60...+100°C|Commercial data - ETIM 9.0 -- EC002637|Commercial data - ETIM 8.0 -- EC002637|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 400 pcs|Commercial data - Packaging type -- bag|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4055143934831|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: China
• Level 1 category: Electrical components

Commercial data

• Country of origin: CN
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002637
• ETIM 9.0: EC002637
• GTIN: 4055143934831
• Packaging type: bag
• PU (SPU): 400 pcs

Connection data

• Connection 1 - Pole number: 10
• Number of connection types: 1
• Number of levels: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 320V
• Ratings per IEC/EN - Nominal voltage (III/3): 160V
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 2.5kV
• Ratings per IEC/EN - Rated voltage (III/2): 160V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +100 °C

Material data

• Color: black
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Flammability class per UL94: V0
• Insulation material (main housing): Polyphthalamide (PPA GF)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The picoMAX^® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

PCB contact

• PCB contact: THT

Physical data

• Depth: 2.5 mm / 0.098 inches
• Drilled hole diameter with tolerance: 1.2 ^(+0.1) mm
• Height: 12.9 mm / 0.508 inches
• Height from the surface: 9.3 mm / 0.366 inches
• Pin spacing: 3.5 mm / 0.138 inches
• Solder pin diameter: 1mm
• Solder pin length: 3.6mm
• Width: 36.5 mm / 1.437 inches

Plug-in connection

• Connector (connection type): for PCB
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mating direction to the PCB: 90°
• Mismating protection: No
• Plugging without loss of pin spacing: Yes
