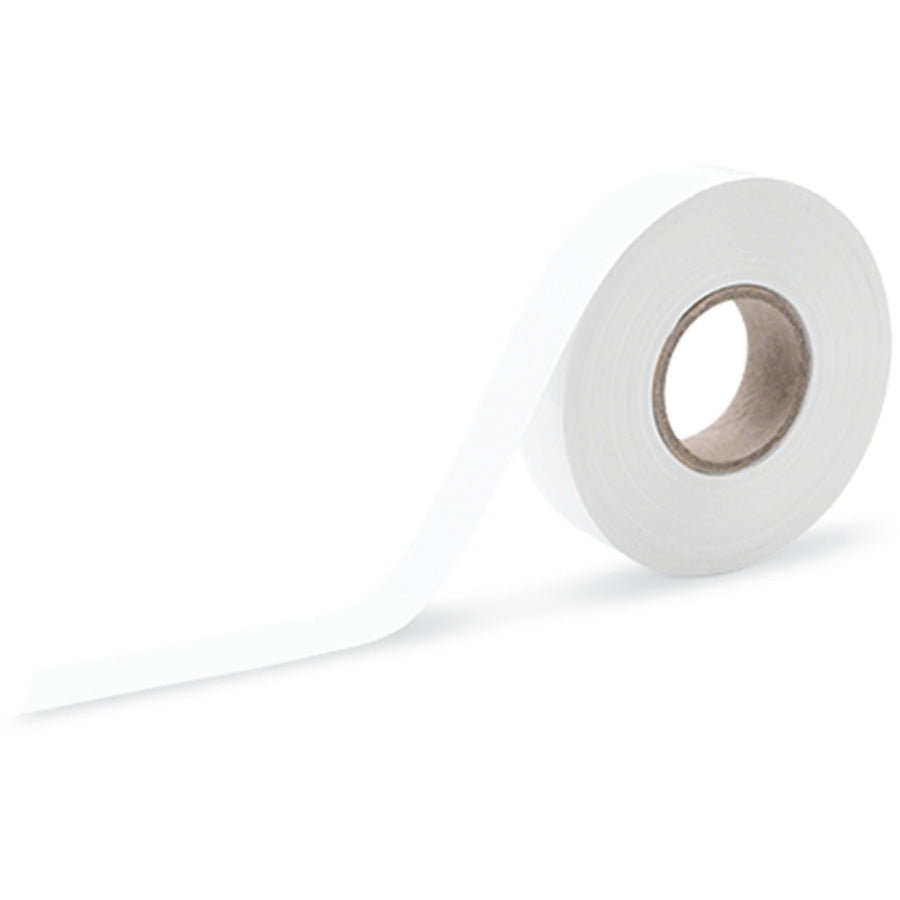

WAGO - 210-882

WAGO component - equivalent to 210882

Specifications

• Primary brand: WAGO
• GTIN code: 4055143651615
• Order code / Manufacturer SKU: 210-882
• Manufacturer product status: Commercialized
• Equivalent to: 210882
• EAN code: 4055143651615
• Manufacturer description: Marking strips; for Smart Printer; permanent adhesive; 22.6mm; white
• Location of origin: Germany
• Manufacturer product specifications: Technical data - Suitable -- for Siemens S7|Technical data - Marking method -- Thermal transfer|Technical data - Marking -- plain|Technical data - Delivery form -- Roll|Technical data - Delivery form configuration -- 20 m; 1 line|Technical data - Printing device -- Smart Printer (Thermal Transfer Printer)|Physical data - Width -- 22.6mm|Physical data - Depth -- 0.2mm|Physical data - Strip width -- 22.6mm|Mechanical data - Mounting type -- Sticking|Mechanical data - Smear resistance -- in conjunction with 258-5005 Ink Ribbon|Material data - Color -- white|Material data - Material -- Polyester|Material data - UV resistance -- EN 60068-2-52010 Procedure B|Material data - Adhesive information -- Acrylic; permanent|Material data - Halogen-free -- Yes|Material data - Weight -- 181g|Environmental requirements - Ambient temperature (storage) -- +10...+21°C|Environmental requirements - Ambient temperature (operation) -- -40...+150°C|Environmental requirements - Relative humidity -- 40...50%|Commercial data - eClass 10.0 -- 27-40-06-29|Commercial data - eClass 9.0 -- 27-40-06-29|Commercial data - ETIM 9.0 -- EC001288|Commercial data - ETIM 8.0 -- EC001288|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143651615|Commercial data - Customs tariff number -- 39199080888|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Labelling

Commercial data

• Country of origin: DE
• Customs tariff number: 39199080888
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-06-29
• eCl@ss 9.0: 27-40-06-29
• ETIM 8.0: EC001288
• ETIM 9.0: EC001288
• GTIN: 4055143651615
• Packaging type: box
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +150 °C
• Ambient temperature (storage): +10 … +21 °C
• Relative humidity: 40 … 50 %

Material data

• Adhesive information: Acrylic; permanent
• Color: white
• Halogen-free: Yes
• Material: Polyester
• UV resistance: EN 60068-2-5:2010 Procedure B
• Weight: 181g

Mechanical data

• Mounting type: Sticking
• Smear resistance: in conjunction with 258-5005 Ink Ribbon

Physical data

• Depth: 0.2 mm
• Strip width: 22.6mm
• Width: 22.6 mm

Technical data

• Delivery form: Roll
• Delivery form configuration: 20 m; 1 line
• Marking: plain
• Marking method: Thermal transfer
• Printing device: Smart Printer (Thermal Transfer Printer)
• Suitable: for Siemens S7
