Wago - 215-611

WAGO

WAGO - 215-611

Part number: 51174956

$2.80

Ships in manufacturer lead time. Contact us for an ETA.

51174956

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

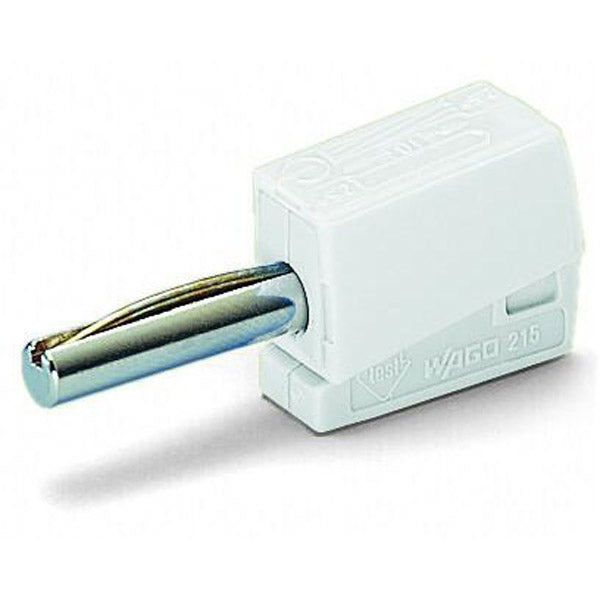

Banana plug for 4mm diameter socket - WAGO (215 series) - 1-pole (1P) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 20A - White color - with CAGE CLAMP spring connections - Plug-in mounting (8mm width) - equivalent to 215611

Specifications

  • Primary brand: WAGO
  • Functions: Banana plug for 4mm diameter socket
  • Poles: 1-pole (1P)
  • Rated current: 20A
  • Color: White
  • Connection type: CAGE CLAMP spring connections
  • Cross-section: for 0.08mm2...2.5mm2 conductor|for #28AWG...#14AWG conductor
  • Mounting mode: Plug-in
  • Dimensions: W8mm
  • Net Width (mm): 8mm
  • Customs Tariff Number: 85366990990
  • eClass code: 27-44-03-13
  • ETIM code: EC002255
  • GTIN code: 4045454293536
  • Order code / Manufacturer SKU: 215-611
  • Manufacturer product status: Commercialized
  • Equivalent to: 215611
  • EAN code: 4045454293536
  • Compliant with standard(s): RoHS compliant with exemption (6(c))
  • Location of origin: Germany
  • Level 1 category: Cabling systems
  • Level 2 category: Connectors & Inserts
  • Product title: Banana plug for 4mm diameter socket - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85366990990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-44-03-13
  • eCl@ss 9.0: 27-44-03-13
  • ETIM 8.0: EC002255
  • ETIM 9.0: EC002255
  • GTIN: 4045454293536
  • Packaging type: box
  • Product Group: 2 (Terminal Block Accessories)
  • PU (SPU): 50 pcs

Connection data

  • Clamping units: 1
  • Connection technology: CAGE CLAMP®
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 9 … 11 mm / 0.35 … 0.43 inches

Electrical data

  • Rated current: 20A
  • Test voltage: 42V

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)
  • SCIP notification number (Austria): 675cc8ff-f6ae-4c46-9a60-3ea0a0f460d9
  • SCIP notification number (Belgium): 56c5dcf4-508a-4868-a586-544637bcf0ee
  • SCIP notification number (Bulgaria): 5a5afa3b-377f-4e6c-bf09-65741106b324
  • SCIP notification number (Czech Republic): 609d05d3-fd7e-4da4-8ab2-71f00a086401
  • SCIP notification number (Denmark): f187967d-33a9-4211-9980-9f255c623bb9
  • SCIP notification number (Finland): eb85138e-3889-4a07-a87e-25abeb8fffd9
  • SCIP notification number (France): 043f5732-eda2-4ef9-aabc-645b5d884d52
  • SCIP notification number (Germany): 6022578d-1e7e-4789-b421-b986fdbe7c97
  • SCIP notification number (Hungary): 35eb67a0-91c9-48c7-a6ce-e7ffe291d340
  • SCIP notification number (Italy): 0b24a49e-fc74-444e-834f-00bb3e3f74b4
  • SCIP notification number (Netherlands): 842d5267-e2a6-4227-99ae-d9157569497c
  • SCIP notification number (Poland): fa5b5feb-ba09-4dd5-8aa4-b9ea8e3ebb86
  • SCIP notification number (Romania): aac5de8c-cb45-4821-91fb-0f85a94ab209
  • SCIP notification number (Sweden): 39908af4-7f7d-469a-a278-d41d1b6fca00

Material data

  • Color: white
  • Fire load: 0.066MJ
  • Weight: 3.9g

Physical data

  • Depth: 40 mm / 1.575 inches
  • Height: 15 mm / 0.591 inches
  • Width: 8 mm / 0.315 inches

Technical data

  • Total number of potentials: 1
