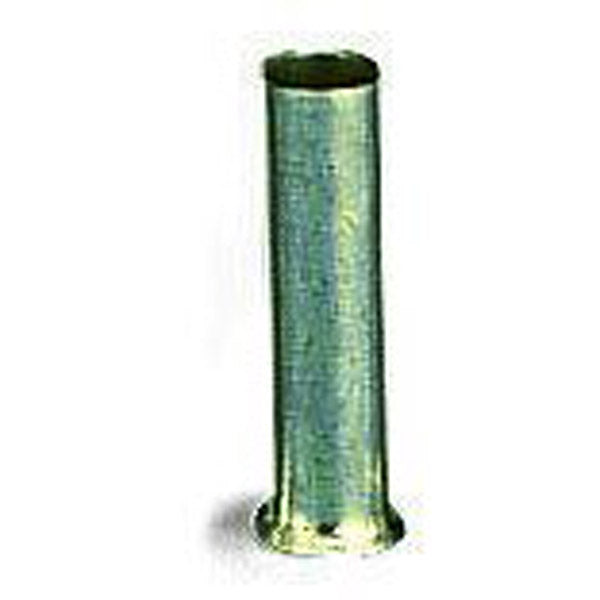

WAGO - 216-101

Electro Tin-plated Copper compression/crimp end sleeve / ferrule - WAGO (216 series) - for 1 x 0.5mm2 / for #20AWG - Silver color - 8mm length - equivalent to 216101

Specifications

• Primary brand: WAGO
• Functions: Electro Tin-plated Copper compression/crimp end sleeve / ferrule
• Color: Silver
• Cross-section: for 1 x 0.5mm2 conductor|for #20AWG conductor
• Length: 8mm
• Dimensions: 1mm ferrule diameter (D2)|requires 8mm / 0.31" cable stripping length
• Customs Tariff Number: 85369010000
• eClass code: 27-40-02-01
• GTIN code: 4017332277617
• ETIM code: EC000005
• Order code / Manufacturer SKU: 216-101
• Manufacturer product status: Commercialized
• Equivalent to: 216101
• EAN code: 4017332277617
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Electro Tin-plated Copper compression/crimp end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-02-01
• eCl@ss 9.0: 27-40-02-01
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• GTIN: 4017332277617
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 5000 (1000) pcs

Connection data

• Cross-section AWG: 20AWG
• Cross-section metric: 0.5mm²
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: silver-colored
• Weight: 0g

Physical data

• Diameter crimp sleeve inside: 1mm
• Total length: 8mm
• Wall thickness crimp sleeve: 0.15mm
