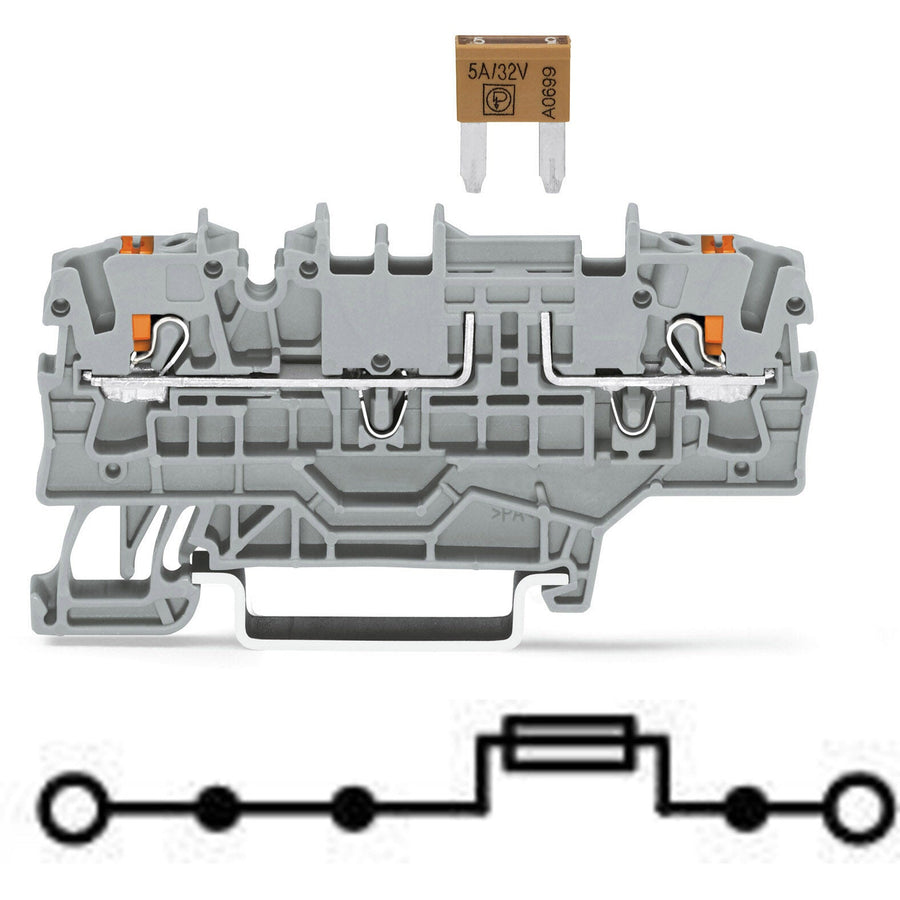

Feed-through/thru terminal block with 1-deck/level + mini blade-style fused-disconnect + btn. + additional jumper position + side/lateral and center marking slots - with test point - WAGO (2202 TOPJOB S series) - Gray - 1 disconnect feed-through pole (1P) / 2-wires (1 push-in + 1 push-in) (1+1) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 10A - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (5.2mm width) - equivalent to 22021981

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|mini blade-style fused-disconnect|btn.|additional jumper position|side/lateral and center marking slots|3 jumper slots|with test point
• Poles: 1 disconnect feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 10A|(UL) 10A|(CSA) 10A
• Color: Gray|Orange actuator
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 400V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 0.75mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #18AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: DIN-35 rail
• Dimensions: H72.9mm x W5.2mm x D32.9mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• GTIN code: 4066966082968
• ETIM code: EC000899
• Customs Tariff Number: 85369095000
• Order code / Manufacturer SKU: 2202-1981
• Manufacturer product status: Commercialized
• Equivalent to: 22021981
• EAN code: 4066966082968
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70173745|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate UL-CA-L45172-6189178-11508102-1|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000899
• ETIM 9.0: EC000899
• GTIN: 4066966082968
• Packaging type: Box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 3
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• General information - Fuse receptacle: pluggable
• General information - Fuse type: Mini flat plug-in fuse; 10.9 x 3.6 x 16.3 mm
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 10A
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 400V
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-3
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.
• Ratings per IEC/EN 2 - Ratings (note): Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!

  • 10 A (individual arrangement)
  • 5 A (block arrangement)
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 10A
• Ratings per UL - Rated current UL (Use Group C): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: gray
• Fire load: 0.18MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 7.8g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 72.9 mm / 2.87 inches
• Width: 5.2 mm / 0.205 inches
