WAGO - 2204-1401

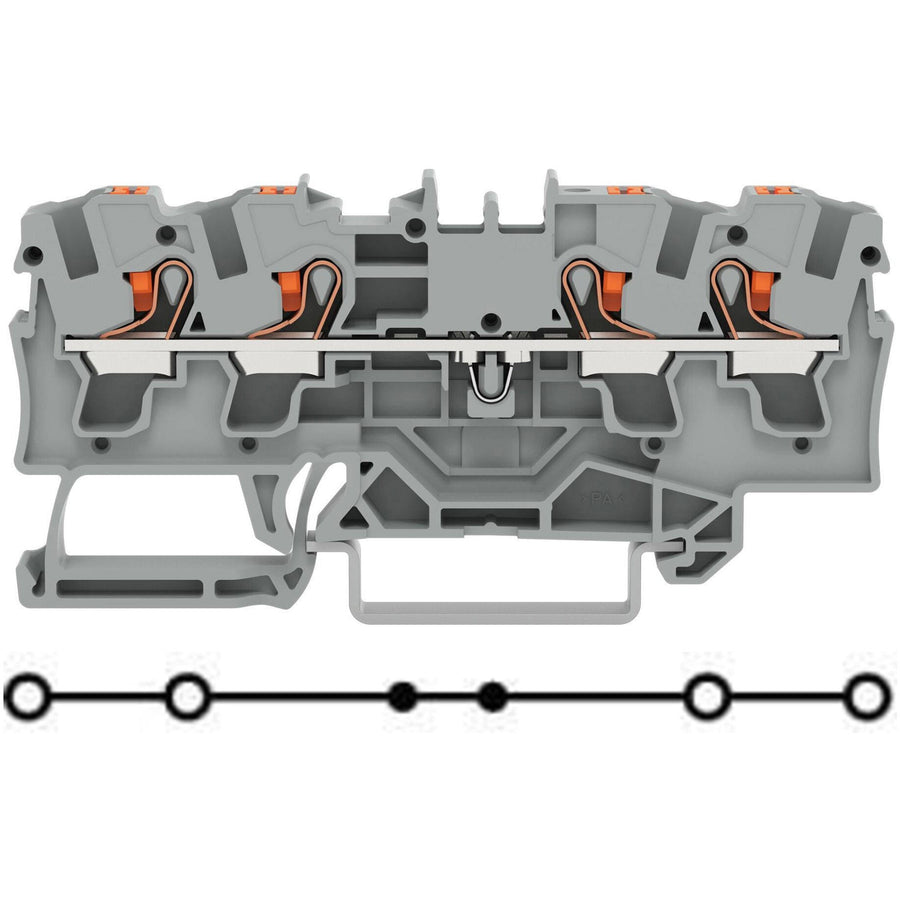

Feed-through/thru terminal block with 1-deck/level + btn. + side/lateral and center marking slots - Suitable for Ex e II applications - with test port - WAGO (2204 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 4-wires (2 push-in + 2 push-in) (2+2) - 4mm2 nominal cross-section - for 0.5mm2...6mm2 / for #20AWG...#10AWG - Rated current 32A / 41A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6.2mm width) - equivalent to 22041401

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|btn.|side/lateral and center marking slots|2 jumper slots|Suitable for Ex e II applications|with test port
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 32A|(IEC) 41A|(UL) 30A|(CSA) 30A|(Ex e II) 31A|(Ex e II with jumper) 30A
• Color: Gray|Orange actuator
• Connection capacity: 4-wires (2 push-in + 2 push-in) (2+2)
• Rated operating voltage (Ue): (IEC) 800V|(UL) 600V|(CSA) 600V|(Ex e II) 550V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...6mm2 fine stranded or solid conductors|for 0.5mm2...4mm2 fine stranded conductors with insulated ferrule|for 1.5mm2...4mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...6mm2 solid conductors; push-in termination|for #20AWG...#10AWG fine stranded or solid conductors|for #20AWG...#12AWG fine stranded conductors with insulated ferrule|for #18AWG...#12AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#10AWG solid conductors; push-in termination|4mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H78.7mm x W6.2mm x D39.5mm
• Net Width (mm): 6.2mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• GTIN code: 4055143711371
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 2204-1401
• Manufacturer product status: Commercialized
• Equivalent to: 22041401
• EAN code: 4055143711371
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7666|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70175102|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-102877|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- Railway - WAGO GmbH & Co. KG - certificate Z00004405.000|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1866350-PDA|- BV - Bureau Veritas S.A. - IEC 60947 - certificate 58186/A0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00003JT|- LR - Lloyds Register - certificate 19/20050|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate PTB 18 ATEX 1006 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000170 (Ex eb IIC Gb / Ex eb I Mb)|- CCCEx - CQST/CNEx - GB/T 3836.3 - certificate 2020312313000170 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 18.00 13U (Ex eb IIC Gb and Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.0086 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143711371
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Solid conductor; push-in termination: 1 … 6 mm² / 14 … 10 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 31A
• Ex information - Rated current (Ex e II) with jumper: 30A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Ratings per: ATEX: PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 1.024W
• Power Loss - Rated current I_N for specified power loss: 32A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 30A
• Ratings per CSA - Rated current CSA (Use Group C): 30A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 41A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 30A
• Ratings per UL - Rated current UL (Use Group C): 30A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: gray
• Fire load: 0.273MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 11.3g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth: 39.5 mm / 1.555 inches
• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 78.7 mm / 3.098 inches
• Width: 6.2 mm / 0.244 inches
