Wago - 232-240

WAGO

WAGO - 232-240

Part number: 232-240

$8.17

Ships in manufacturer lead time. Contact us for an ETA.

232-240

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

WAGO component - equivalent to 232240

Specifications

  • Primary brand: WAGO
  • GTIN code: 4044918579261
  • Order code / Manufacturer SKU: 232-240
  • Manufacturer product status: Commercialized
  • Equivalent to: 232240
  • EAN code: 4044918579261

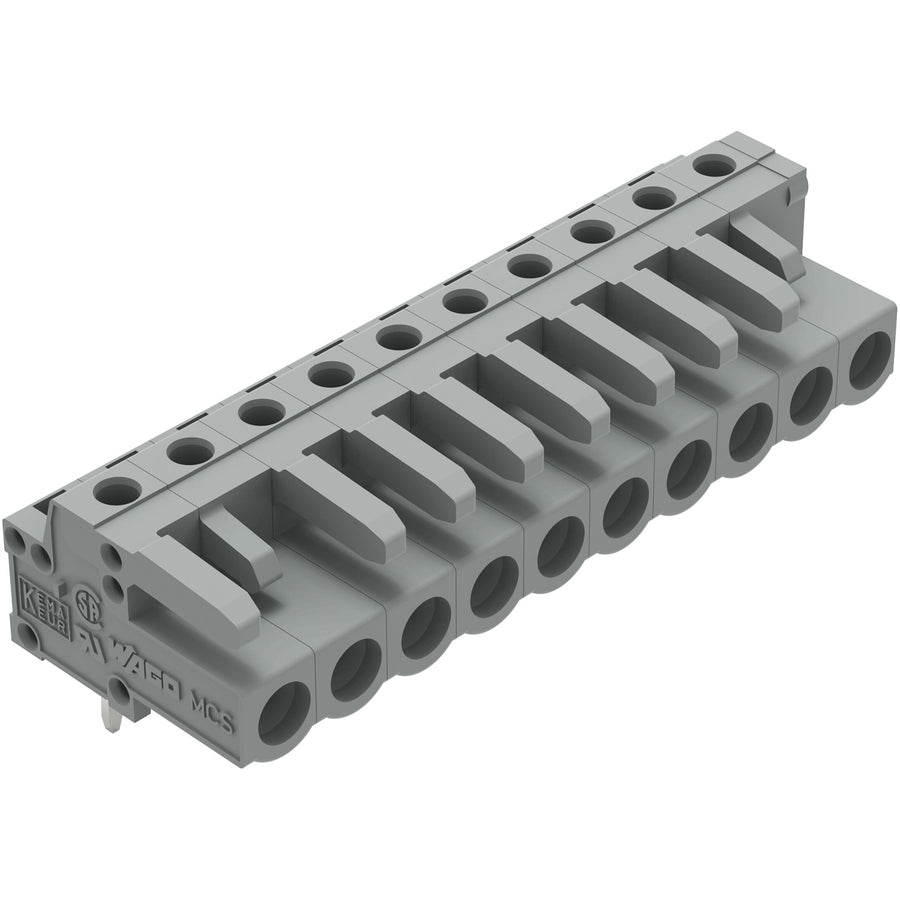

  • Manufacturer description: THT female header; angled; Pin spacing 5mm; 10-pole; 0.6 x 1mm solder pin; gray
  • Location of origin: Germany
  • Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 12A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 15A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 15A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 15A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 10A|Connection data - Total number of potentials -- 10|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Pole number -- 10|Physical data - Pin spacing -- 5mm / 0.197"|Physical data - Width -- 51.5mm / 2.028"|Physical data - Height -- 16.6mm / 0.654"|Physical data - Height from the surface -- 11.6mm / 0.457"|Physical data - Depth -- 18.25mm / 0.719"|Physical data - Solder pin length -- 5mm|Physical data - Solder pin dimensions -- 0.6 x 1mm|Physical data - Drilled hole diameter with tolerance -- 1.3 (+0.1)mm|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Female connector/socket|Plug-in connection - Connector (connection type) -- for PCB|Plug-in connection - Mismating protection -- No|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Mating direction to the PCB -- 0°|Plug-in connection - Locking of plug-in connection -- none|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire female connector (in-line)|PCB contact - Number of solder pins per potential -- 1|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Copper alloy|Material data - Contact plating -- Tin|Material data - Fire load -- 0.217MJ|Material data - Weight -- 9.3g|Environmental requirements - Limit temperature range -- -60...+100°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - Product Group -- 3 (Multi Conn. System)|Commercial data - eClass 10.0 -- 27-44-04-02|Commercial data - eClass 9.0 -- 27-44-04-02|Commercial data - ETIM 9.0 -- EC002637|Commercial data - ETIM 8.0 -- EC002637|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 50 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4044918579261|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
  • Level 1 category: Electrical components

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85366990990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-44-04-02
  • eCl@ss 9.0: 27-44-04-02
  • ETIM 8.0: EC002637
  • ETIM 9.0: EC002637
  • GTIN: 4044918579261
  • Packaging type: box
  • Product Group: 3 (Multi Conn. System)
  • PU (SPU): 50 pcs

Connection data

  • Connection 1 - Pole number: 10
  • Number of connection types: 1
  • Number of levels: 1
  • Total number of potentials: 10

Electrical data

  • Ratings per CSA - Approvals per: CSA
  • Ratings per CSA - Rated current CSA (Use Group B): 15A
  • Ratings per CSA - Rated current CSA (Use Group D): 10A
  • Ratings per CSA - Rated voltage CSA (Use Group B): 300V
  • Ratings per CSA - Rated voltage CSA (Use Group D): 300V
  • Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
  • Ratings per IEC/EN - Nominal voltage (II/2): 630V
  • Ratings per IEC/EN - Nominal voltage (III/3): 320V
  • Ratings per IEC/EN - Rated current: 12A
  • Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
  • Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
  • Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
  • Ratings per IEC/EN - Rated voltage (III/2): 320V
  • Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
  • Ratings per UL - Approvals per: UL 1059
  • Ratings per UL - Rated current UL (Use Group B): 15A
  • Ratings per UL - Rated current UL (Use Group D): 10A
  • Ratings per UL - Rated voltage UL (Use Group B): 300V
  • Ratings per UL - Rated voltage UL (Use Group D): 300V
  • Ratings per UL 1977 - Rated current UL 1977: 15A
  • Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Limit temperature range: -60 … +100 °C
  • Processing temperature: -35 … +60 °C

Material data

Mechanical data

  • Anti-rotation protection: Yes
  • Variable coding: Yes

Notes

  • Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
  • Variants:: Other pole numbers|3.8 mm pin projection for male headers with straight solder pins|Gold-plated or partially gold-plated contact surfaces|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

  • Number of solder pins per potential: 1
  • PCB contact: THT
  • Solder pin arrangement: over the entire female connector (in-line)

Physical data

  • Depth: 18.25 mm / 0.719 inches
  • Drilled hole diameter with tolerance: 1.3 (+0.1) mm
  • Height: 16.6 mm / 0.654 inches
  • Height from the surface: 11.6 mm / 0.457 inches
  • Pin spacing: 5 mm / 0.197 inches
  • Solder pin dimensions: 0.6 x 1 mm
  • Solder pin length: 5mm
  • Width: 51.5 mm / 2.028 inches

Plug-in connection

  • Connector (connection type): for PCB
  • Contact type (pluggable connector): Female connector/socket
  • Locking of plug-in connection: none
  • Mating direction to the PCB: 0°
  • Mismating protection: No
  • Plugging without loss of pin spacing: No
