WAGO - 248-503

Part number: 248-503

$7.02

Ships in manufacturer lead time. Contact us for an ETA.

248-503

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

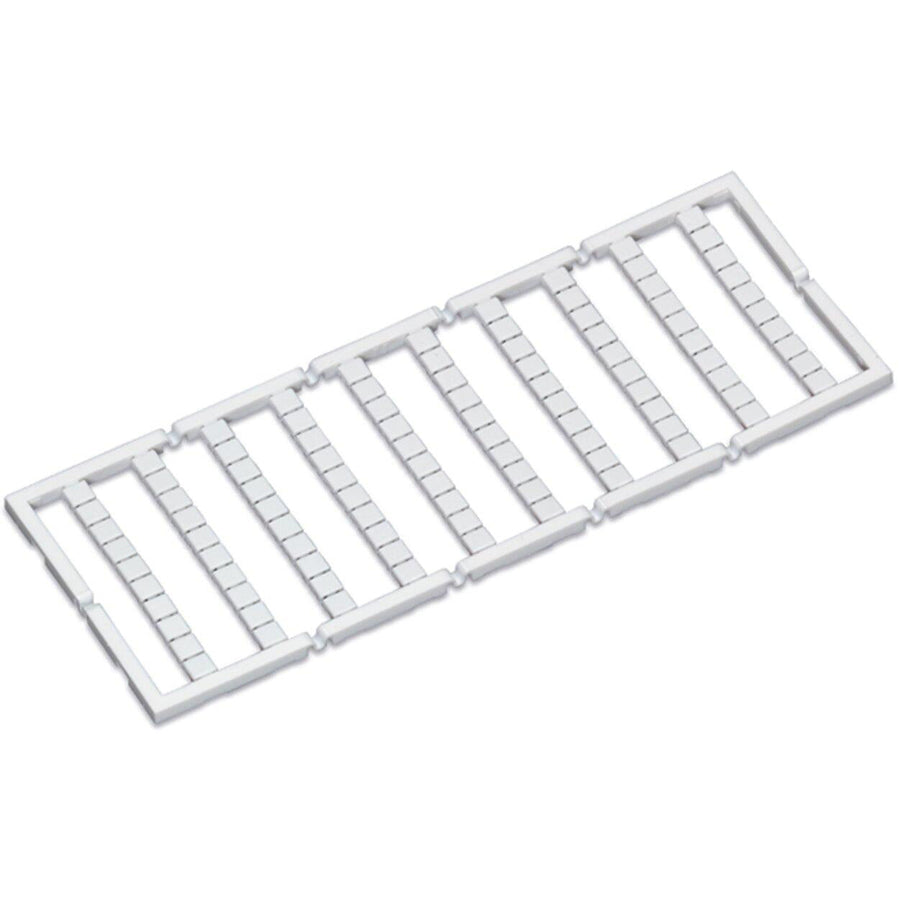

Labeled Mini-WSB marking card - horizontal marking - with numbers "11-20" marking - WAGO (248 series) - White color - Snap-on mounting - contains 100 labels per card (10 strips x 10 labels per strip) - compatible with 5mm-wide term. blck. - equivalent to 248503

Specifications

  • Primary brand: WAGO
  • Functions: Labeled Mini-WSB marking card
  • Design: horizontal marking
  • Color: White
  • Mounting mode: Snap-on
  • Dimensions: H152mm x W56.8mm x D3.2mm
  • Material: Halogen-free materials
  • Contents: 100 labels per card (10 strips x 10 labels per strip)
  • Technical compatibility with: 5mm-wide term. blck.
  • Customs Tariff Number: 49119900000
  • eClass code: 27-14-11-37
  • ETIM code: EC000761
  • GTIN code: 4055143694438
  • Order code / Manufacturer SKU: 248-503
  • Manufacturer product status: Commercialized
  • Equivalent to: 248503
  • EAN code: 4055143694438
  • Compliant with standard(s): RoHS compliant
  • Location of origin: Germany
  • Marking: numbers "11-20"
  • Level 1 category: Cabling systems
  • Level 2 category: Labelling
  • Level 3 category: Terminal blocks labelling
  • Product title: Labeled Mini-WSB marking card - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 49119900000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-37
  • eCl@ss 9.0: 27-14-11-37
  • ETIM 8.0: EC000761
  • ETIM 9.0: EC000761
  • GTIN: 4055143694438
  • Packaging type: bag
  • Product Group: 2 (Terminal Block Accessories)
  • PU (SPU): 5 pcs

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Material data

  • Color: white
  • Fire load: 0.185MJ
  • Halogen-free: Yes
  • UV resistance: EN 60068-2-5:2010 Procedure B
  • Weight: 6.2g

Mechanical data

  • Smear resistance: EN 60998-1:2004

Physical data

  • Depth: 3.2 mm / 0.126 inches
  • Height: 152 mm / 5.984 inches
  • Marker width: 5mm
  • Marker/strip width: 5 mm
  • Width: 56.8 mm / 2.236 inches

Technical data

  • Delivery form: Marker card
  • Delivery form configuration: 10 strips with 10 markers per card
  • Marking: 11 … 20
  • Marking (number): 10
  • Marking color: black
  • Marking differentiation: Consecutive numbers per strip
  • Marking direction: Horizontal marking
  • Marking method: Thermal transfer
  • Marking type: Numbers
