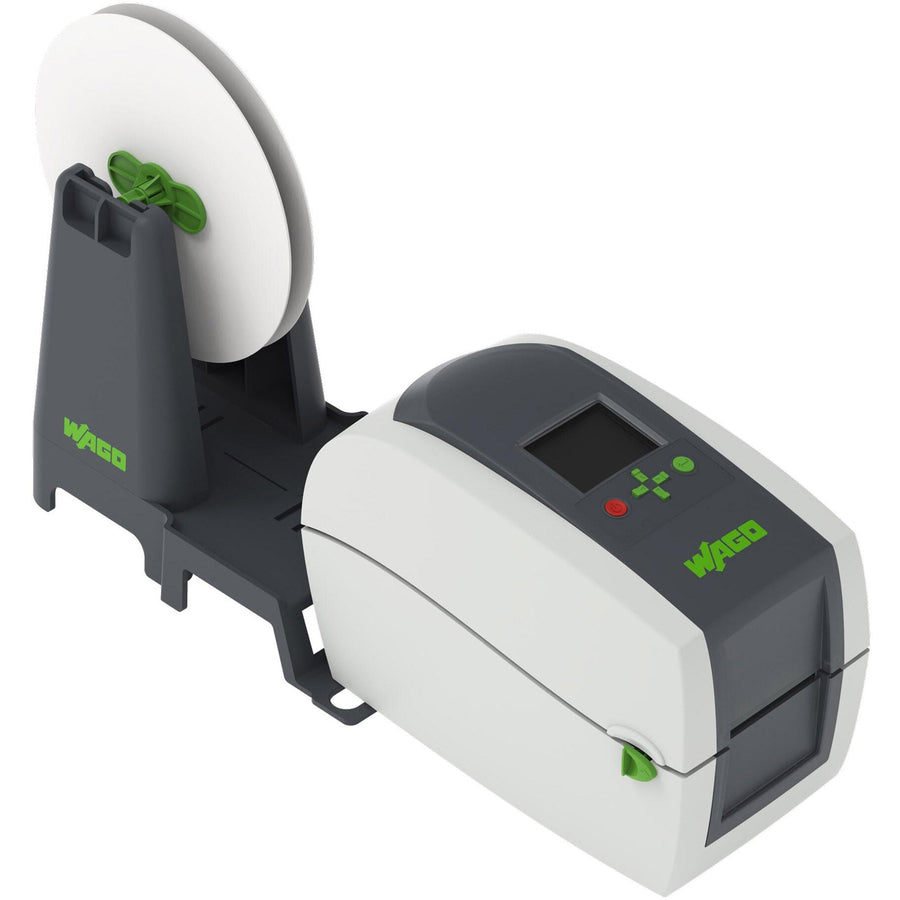

WAGO - 258-5107

Thermal transfer printer (TTP) / Smart printer with marking material - 300dpi (12 pixels/mm) - WAGO (258 series) - with Color TFT LCD - with 16MB (SDRAM) + 8MB internal memory (flash) - supply voltage 100-240Vac - with RS-232 connector + USB type-A port + USB type-B port - rated for +5°C...+40°C ambient - replaces obsolete component(s) 258-5000 - equivalent to 2585107

Specifications

• Primary brand: WAGO
• Functions: Thermal transfer printer (TTP) / Smart printer
• Design: marking material|300dpi (12 pixels/mm)
• Supply voltage (AC): 100-240Vac
• Display: Color TFT LCD
• Memory capacity: 16MB (SDRAM)|8MB internal memory (flash)
• Connection type: RS-232 connector|USB type-A port|USB type-B port
• Dimensions: H175mm x W135mm x D245mm
• Ambient air temperature for operation: +5°C...+40°C
• Ambient air temperature for storage: -20°C...+50°C
• Contents: 1 x Power supply and cable|1 x USB cable|1 x Thermal transfer ink ribbon; black (258-5005)|1 x Roller; for marking strips (258-5006)|1 x Roller; for WMB-Inline (258-5007)|1 x Reel holder|1 x Marking strips; on reel; not stretchable; plain; snap-on type; white (2009-110)|1 x WMB-Inline; 1500 pieces on roll; stretchable 5mm...5.2mm; plain; snap-on type; white (2009-115)
• Customs Tariff Number: 84433210000
• GTIN code: 4066966520644
• ETIM code: EC000610
• Order code / Manufacturer SKU: 258-5107
• Manufacturer product status: Commercialized
• Replaces: 258-5000
• Equivalent to: 2585107
• Compliant with standard(s): General approvals|- CCC - CHINA QUALITY CERT. CENTRE - certificate 2024010904626771|- EAC - GZO Almaty Standart - TP TC 004/2011 / TP TC 020/2011 - certificate EAC CoC 03079|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate R-R-W43-258-5101|- UL - Underwriters Laboratories Inc. - UL 60950-1 - certificate E482462|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Operating System (OS): Compatible with|Linux|Windows 11|Windows 10|Windows 8|Windows 7
• Level 1 category: Labelling systems
• Level 2 category: General purpose labelling systems
• Level 3 category: General purpose label printers
• Product title: Thermal transfer printer (TTP) / Smart printer - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 84433210000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000610
• ETIM 9.0: EC000610
• GTIN: 4066966520644
• Packaging type: Box
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +5 … +40 °C
• Ambient temperature (storage): -20 … +50 °C

Material data

• Fire load: 10.154MJ
• Weight: 3840g

Physical data

• Depth: 245 mm / 9.646 inches
• Height: 175 mm / 6.89 inches
• Width: 135 mm / 5.315 inches

System requirements

• Memory: 4 GB
• Supported operating systems: Windows 7|Windows 8|Windows 10|Windows 11|Linux®

Technical data

• Ink ribbon: External roll diameter: 40 mm; Internal core diameter: 12.7 mm (0.5 inch); Max. length: 110 m; Max. width: 58 mm
• Ink ribbon length: 360.9
• Interfaces: USB type A, (for BT and WiFi connection), USB type B (for PC connection), RS-232, ETHERNET 10/100 Mbps
• Memory: 8,192MB
• Operating display: Color TFT LCD with navigation button
• Operating voltage: 100 … 240 VAC, 50 … 60 Hz (automatic adjustment)
• Print head: Glass layer, spring-mounted
• Print length (max.): 762mm
• Print resolution: 300|300 dpi (12 pixels/mm)
• Print speed: Max. 127 mm/s (WAGO recommends 50.8 mm/s)
• Print width: 47mm
• Safety approvals: CE (EMC)
• Scope of delivery: Power supply + cable, 2 rollers (258-5006 + 258-5007), 1 reel holder, 1 ink ribbon (258-5005), Smart Script marking software and driver, USB cable, external unwinder, 1 empty cardboard core, 1 reel each of marking strips (2009-110) and WMB Inline markers (2009-115)
• See-through/reflective sensor: Yes, centrally mounted
