WAGO - 261-252

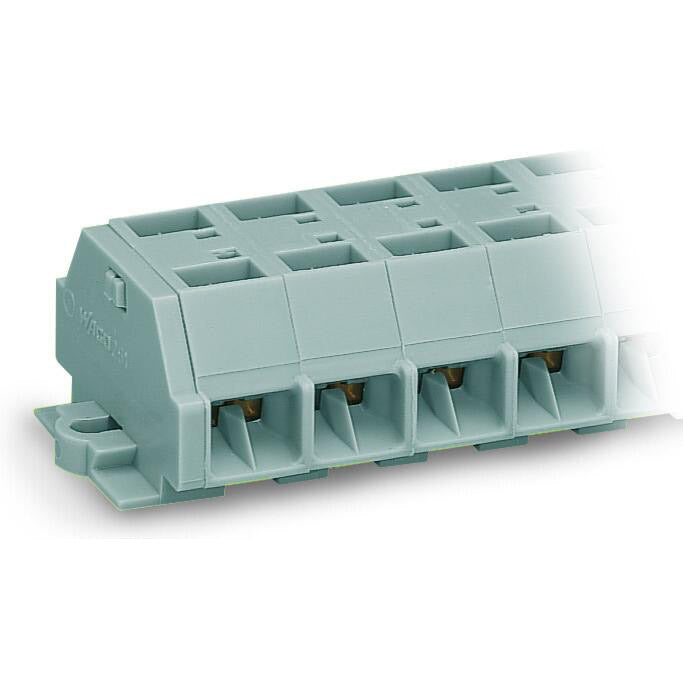

Feed-through/thru terminal strip with 1-deck/level + snap-in mounting feet - WAGO (261 series) - Gray - 2 feed-through poles (2P) / 8-wires (4 clamps + 4 clamps) (4+4) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 24A - with CAGE CLAMP spring connections - Mounts on DIN rail or surface via accessory snap-in foot mounting - equivalent to 261252

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal strip
• Design: 1-deck/level|snap-in mounting feet
• Poles: 2 feed-through poles (2P)
• Rated current: (IEC) 24A|(UL) 15A|(CSA) 10A
• Color: Gray
• Connection capacity: 8-wires (4 clamps + 4 clamps) (4+4)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#14AWG fine stranded or solid conductors
• Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
• Dimensions: H28mm x W23mm x D22.5mm
• Material: Polyamide (PA) 66|Halogen-free materials
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-06
• ETIM code: EC001284
• GTIN code: 4044918628020
• Order code / Manufacturer SKU: 261-252
• Manufacturer product status: Commercialized
• Equivalent to: 261252
• EAN code: 4044918628020
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR-NL 6509|- CCA - DEKRA Certification B.V. - EN 60998 - certificate 2110272.02|- CCC - CQC - GB/T 13140.1 - certificate CQC04003009928|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003009928|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70010891|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1869868-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- LR - Lloyds Register - IEC 60998 - certificate LR22173030TA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918628020
• Packaging type: box
• Product Group: 9 (Std Chassis Mt Blocks)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 8
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated current CSA (Use Group D): 5A
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group C): 15A
• Ratings per UL - Rated current UL (Use Group D): 5A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.141MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 8.5g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: Snap-in foot

Physical data

• Depth: 22.5 mm / 0.886 inches
• Height: 28 mm / 1.102 inches
• Height from the surface: 18.1 mm / 0.713 inches
• Module width: 10 mm / 0.394 inches
• Width: 23 mm / 0.906 inches
