Part number: 261-337

$1.71

Ships in manufacturer lead time. Contact us for an ETA.

261-337

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

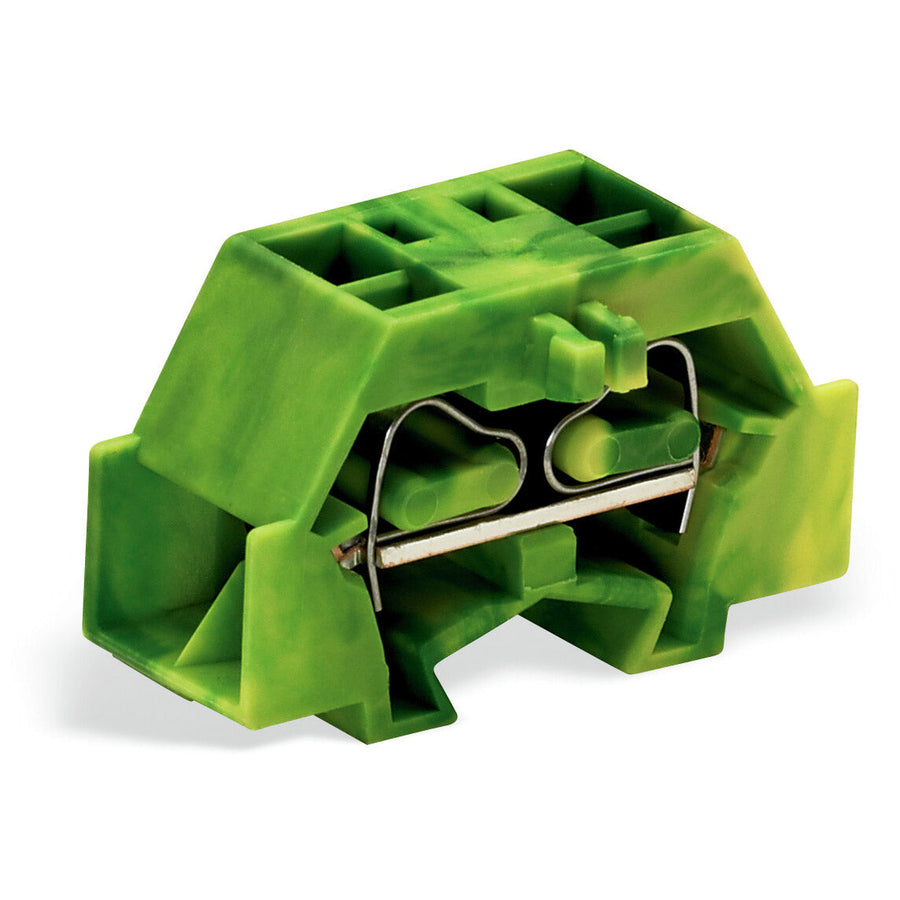

Feed-through/thru for ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (261 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 4-wires (2 clamps + 2 clamps) (2+2) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - with CAGE CLAMP spring connections - 3.2mm fixing hole mounting - equivalent to 261337

Specifications

  • Primary brand: WAGO
  • Functions: Feed-through/thru for ground/earthing terminal block
  • Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry
  • Poles: 1 grounding / protective-earth (1PE)
  • Color: Green-Yellow
  • Connection capacity: 4-wires (2 clamps + 2 clamps) (2+2)
  • Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V
  • Rated impulse voltage (Uimp): (IEC) 6kV
  • Connection type: CAGE CLAMP spring connections
  • Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#14AWG fine stranded or solid conductors
  • Mounting mode: 3.2mm fixing hole
  • Dimensions: H28mm x W10mm x D18mm
  • Material: Polyamide (PA) 66|Halogen-free materials
  • Customs Tariff Number: 85369010000
  • ETIM code: EC001284
  • eClass code: 27-14-11-06
  • GTIN code: 4044918610858
  • Order code / Manufacturer SKU: 261-337
  • Manufacturer product status: Commercialized
  • Equivalent to: 261337
  • EAN code: 4044918610858
  • Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR-NL 6509|- CCA - DEKRA Certification B.V. - EN 60998 - certificate 2110272.02|- CCC - CQC - GB/T 13140.1 - certificate CQC04003009928|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003009928|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70010891|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1869868-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - IEC 60998 - certificate LR22173030TA|RoHS compliant|material group I|V-0 flammability rating
  • Location of origin: Switzerland
  • Level 1 category: Electrical components
  • Level 2 category: Terminal blocks
  • Product title: Feed-through/thru for ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

  • Country of origin: CH
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-06
  • eCl@ss 9.0: 27-14-11-06
  • ETIM 8.0: EC001284
  • ETIM 9.0: EC001284
  • GTIN: 4044918610858
  • Packaging type: box
  • Product Group: 9 (Std Chassis Mt Blocks)
  • PU (SPU): 200 (50) pcs

Connection data

  • Clamping units: 4
  • Connection 1 - Actuation type: Operating tool
  • Connection 1 - Connectable conductor materials: Copper
  • Connection 1 - Connection technology: CAGE CLAMP®
  • Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 - Pole number: 1
  • Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Connection 1 - Wiring direction: Side-entry wiring
  • Number of levels: 1
  • Total number of potentials: 1

Electrical data

  • Ratings per CSA - Rated current CSA (Use Group C): 10A
  • Ratings per CSA - Rated current CSA (Use Group D): 5A
  • Ratings per CSA - Rated voltage CSA (Use Group C): 300V
  • Ratings per CSA - Rated voltage CSA (Use Group D): 600V
  • Ratings per IEC/EN - Nominal voltage (III/3): 500V
  • Ratings per IEC/EN - Rated current: 24A
  • Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
  • Ratings per UL - Rated current UL (Use Group B): 15A
  • Ratings per UL - Rated current UL (Use Group C): 15A
  • Ratings per UL - Rated current UL (Use Group D): 5A
  • Ratings per UL - Rated voltage UL (Use Group B): 300V
  • Ratings per UL - Rated voltage UL (Use Group C): 300V
  • Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Material data

Mechanical data

  • Design: horizontal type
  • Marking level: Side marking
  • Mounting type: Mounting flange

Physical data

  • Depth: 18 mm / 0.709 inches
  • Height: 28 mm / 1.102 inches
  • Height from the surface: 18.1 mm / 0.713 inches
  • Width: 10 mm / 0.394 inches
