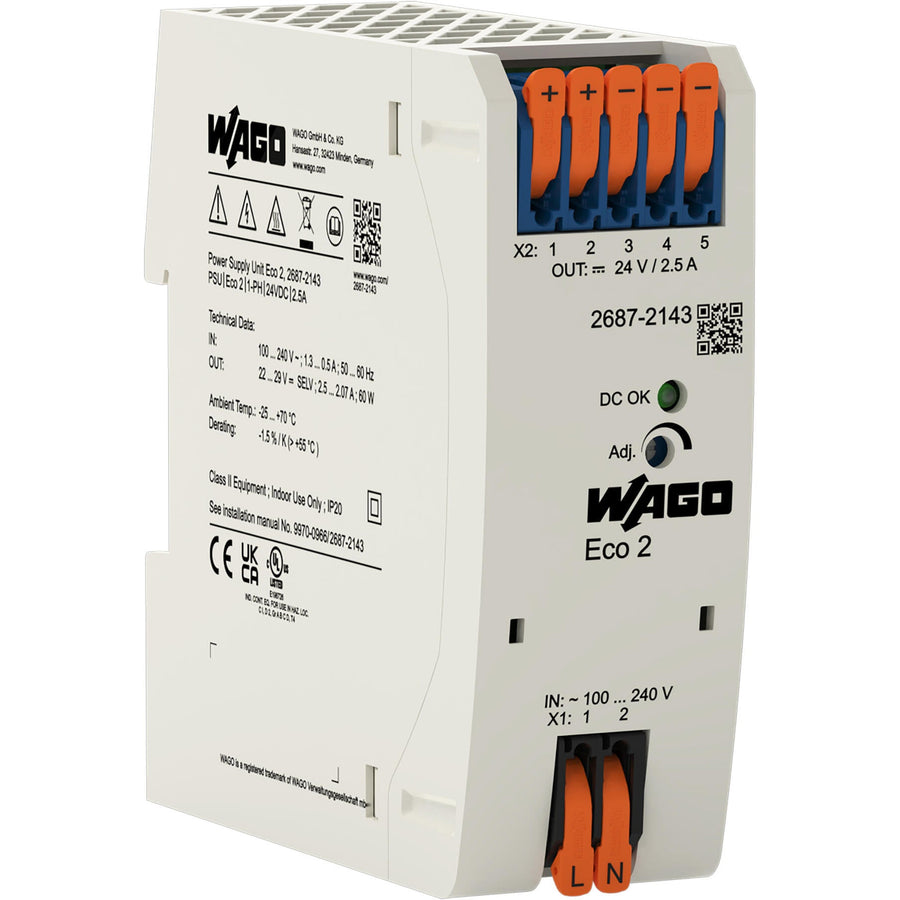

AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Power supply units Eco 2 series) - 24Vdc (SELV) / 2.5A / 60W output - Input voltage 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac) (Single-phase AC (1AC)) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (35mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 26872143

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU)|Series operation possible|Parallel operation possible
• Supply voltage (AC): 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
• Display: LED status indication (DC OK -- green)
• Type of network: Single-phase AC (1AC)
• Rated current: 2.5A
• Rated power: 60W
• Output voltage (DC): 24Vdc (SELV)|22-29Vdc (adjustable)
• Hold time: 130ms (230Vac)|23ms (110Vac)
• Connection type: Push-in CAGE CLAMP spring connections
• Protection functions: T 2A / 250Vac internal fuse|Constant power (up to 130%)|Shutdown and automatic restart in the event of a short circuit|Short-circuit protection|Open circuit protection
• Efficiency: 0.905
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 1% (output error)
• Dimensions: H100mm x W35mm x D90mm|H3.937" x W1.378" x D3.54"
• Net Width (mm): 35mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-96% relative humidity (RH; non-condensing)
• Current consumption: 0.5A (230Vac; Nominal load)|1.1A (100Vac; Nominal load)|20A inrush (after 1 ms)
• ETIM code: EC002540
• Customs Tariff Number: 85044083900
• GTIN code: 4066966480061
• Order code / Manufacturer SKU: 2687-2143
• Manufacturer product status: Commercialized
• Equivalent to: 26872143
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III (≤ 2000m a.s.l.); II (> 2000m a.s.l.)|- Isolation voltage (pri.-sec.; AC) -- 3510V|CE|UKCA|EN 61010-1|EN 61010-2-201|EN 61204-3|SEMI F47|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate UL_E255817|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate UL_E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: China
• Degree of pollution: 2
• Ripple: 20mVpp (output voltage)
• MTBF (Mean Time Between Failures): 1 100 000h (as per IEC 61709)
• Benefits: Optical status indication|Suitable for both parallel and series operation|Natural convection cooling when horizontally mounted|Connection technology with push-in termination and tool-free lever operation|Electrically isolated output voltage (SELV/PELV) per EN 61010/UL 61010|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Eco 2 series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4066966480061
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output
• Fine-stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): e017187f-9e94-48f1-87d8-dd2bb4c80249
• SCIP notification number (Belgium): 48b90fd9-af9e-42fb-9817-40509f3746fc
• SCIP notification number (Bulgaria): be1e41b3-a542-4051-9b85-652f2f6d1a4d
• SCIP notification number (Czech Republic): 23e57abf-4f13-4729-8ee6-037120462b0b
• SCIP notification number (Denmark): ce5521f3-89fa-46ed-b119-44241bcbb9da
• SCIP notification number (Finland): af0ac358-7114-4f8c-8e4a-39cfc778c6d1
• SCIP notification number (France): 7059bd10-bc24-4622-b9a7-52edb8b6ac4f
• SCIP notification number (Germany): 15c620d6-5799-4bbb-8261-2cd43fe6fae6
• SCIP notification number (Hungary): f5d0f531-abaa-4b3f-aae9-38875074b6c5
• SCIP notification number (Italy): fb3cb27a-d888-4690-83cc-95d6d15b4906
• SCIP notification number (Netherlands): a0188a42-c999-4daa-9d0d-92c37e10b6a3
• SCIP notification number (Poland): 14ad6c5a-05de-4056-beeb-51cd36b95272
• SCIP notification number (Romania): 596802ac-d363-4a11-95de-76252c1e49d6
• SCIP notification number (Sweden): 4dc8b222-ea9a-4c84-82fa-83702da0254b

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C (Device starts at -40 °C (type-tested))
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: Siehe Typenschild/Handbuch
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 250g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 90 mm / 3.54 inches
• Height: 100 mm / 3.937 inches
• Width: 35 mm / 1.378 inches

Safety and protection

• Isolation voltage (pri.-sec., AC): 3,510V
• MTBF: > 1,100,000 h
• Open-circuit-proof: Yes
• Overvoltage category: III (≤ 2000 m a. s.l.); II (>2000 m a. s.l.)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: II
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 35 VDC
• Series operation: Yes
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE; UKCA
• Standards/specifications: EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|SEMI F47

Technical data

• Circuit protection - Backup fusing (recommended): 16 A (for USA/Canada: 15 A)
• Circuit protection - Internal fuse: T 2 A / 250 VAC
• Efficiency/power losses - Efficiency (typ.): 90.5 %
• Efficiency/power losses - Power loss P_l: ≤ 0.1 W (no load); ≤ 6 W (nominal load)
• Input - Input current I_i: ≤ 0.5 A (230 VAC; nominal load); ≤ 1.1 A (100 VAC; nominal load)
• Input - Input voltage range: 1 x 90 … 264 VAC
• Input - Inrush current: ≤ 20 A (after 1 ms)
• Input - Mains failure hold-up time: ≥ 130 ms (230 VAC); ≥ 23 ms (110 VAC)
• Input - Nominal input voltage U_{i nom}: 1 x 100 … 240 VAC
• Input - Nominal mains frequency range: 50 … 60 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Passive
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 2.5 A (24 VDC)
• Output - Nominal output power: 60W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Output voltage range: 22 … 29 VDC (adjustable)
• Output - Overload behavior: Constant power up to 130 %; shutdown and automatic restart in the event of a short circuit
• Output - Residual ripple: ≤ 20 mV (peak-to-peak, at 230 VAC)
• Signaling and communication - Signaling: 1 x LED DC OK (green)
