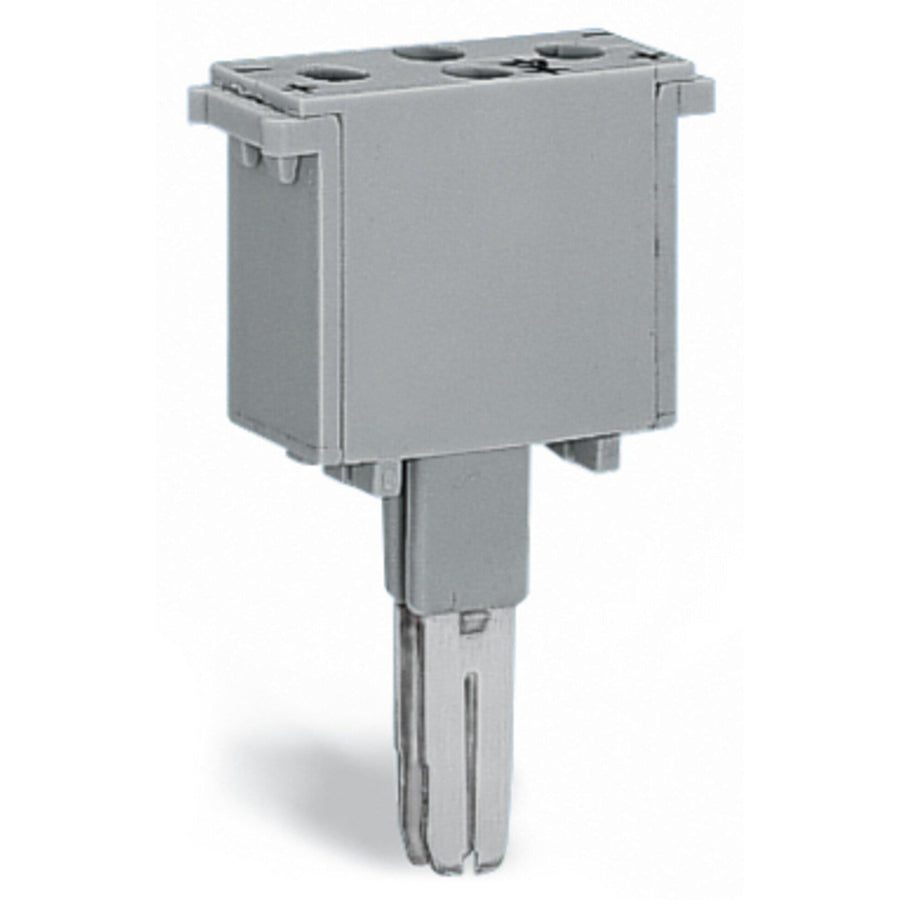

Wago - 280-803

WAGO

WAGO - 280-803

Part number: 280-803

$5.72

Ships in manufacturer lead time. Contact us for an ETA.

280-803

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

Empty component plug housing - type 4 - WAGO (280 series) - 2-poles (2P) - Rated current 6A - Gray color - Plug-in mounting - equivalent to 280803

Specifications

  • Primary brand: WAGO
  • Functions: Empty component plug housing
  • Design: type 4
  • Poles: 2-poles (2P)
  • Temperature: Processing temperature -35°C...+85°C
  • Rated current: 6A
  • Color: Gray
  • Rated operating voltage (Ue): 250V
  • Mounting mode: Plug-in
  • Dimensions: W10mm
  • Material: Polyamide (PA) 66
  • eClass code: 27-14-11-49
  • ETIM code: EC002018
  • GTIN code: 4044918270397
  • Customs Tariff Number: 85366990990
  • Order code / Manufacturer SKU: 280-803
  • Manufacturer product status: Commercialized
  • Equivalent to: 280803
  • EAN code: 4044918270397
  • Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
  • Location of origin: Germany
  • Degree of pollution: 3
  • Level 1 category: Electrical components
  • Product title: Empty component plug housing - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85366990990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-49
  • eCl@ss 9.0: 27-18-27-02
  • ETIM 8.0: EC002018
  • ETIM 9.0: EC002018
  • GTIN: 4044918270397
  • Packaging type: box
  • Product Group: 1 (Rail Mounted Terminal Blocks)
  • PU (SPU): 50 pcs

Connection data

  • Pole number: 2
  • Wiring direction: Front-entry wiring

Electrical data

  • Rated continuous current: 6A

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Processing temperature: -35 … +85 °C

Material data

  • Color: gray
  • Fire load: 0.126MJ
  • Flammability class per UL94: V0
  • Insulation material (main housing): Polyamide (PA66)
  • Material group: I
  • Weight: 3.9g

Mechanical data

  • Housing design: Plug for carrier terminal blocks
  • Mounting type: Pluggable module for carrier terminal block

Notes

  • Note: Plug inside dimensions: W/H/L (8.2/15/15) mm

Physical data

  • Width: 10 mm / 0.394 inches

Safety and protection

  • Pollution degree: 3
  • Rated impulse withstand voltage: 4kV
  • Rated voltage: 250V
