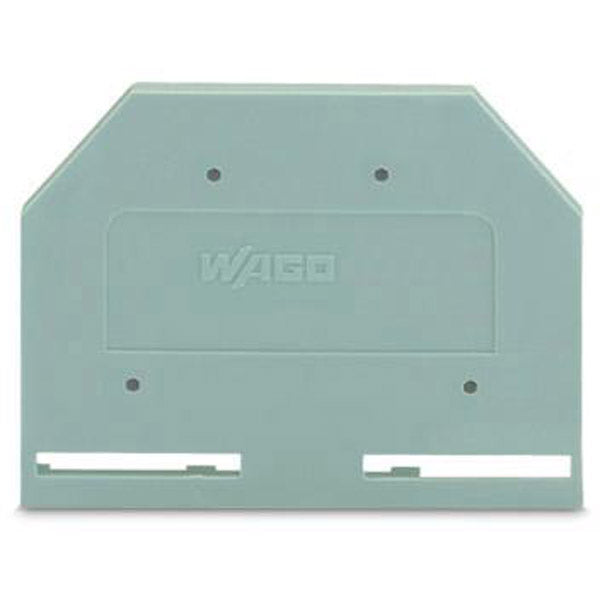

WAGO - 281-301

End and intermediate plate - WAGO (281 series) - Gray color (3mm width) - equivalent to 281301

Specifications

• Primary brand: WAGO
• Functions: End and intermediate plate
• Color: Gray
• Dimensions: H40mm x W3mm x D32mm
• Net Width (mm): 3mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-33
• ETIM code: EC000886
• GTIN code: 4017332292559
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 281-301
• Manufacturer product status: Commercialized
• Equivalent to: 281301
• EAN code: 4017332292559
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Product title: End and intermediate plate - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332292559
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.075MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.5g

Physical data

• Depth: 32 mm / 1.26 inches
• Height: 40 mm / 1.575 inches
• Width: 3 mm / 0.118 inches
