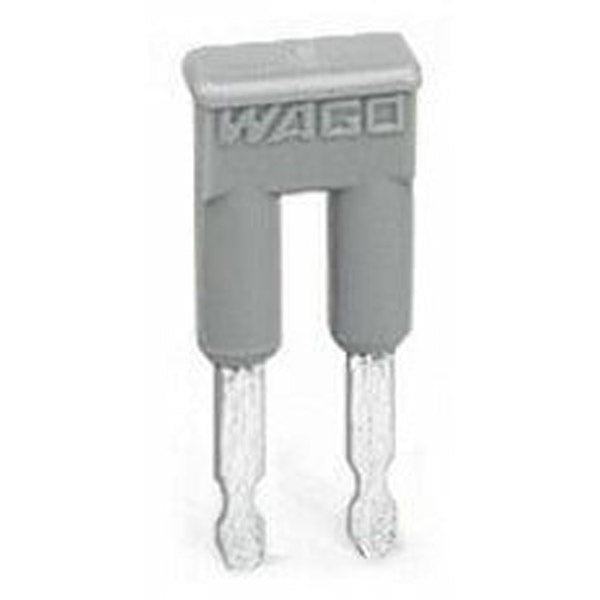

WAGO - 281-482

Insulated push-in type comb-style jumper bar - 2-way - WAGO (281 series) - 2-poles (2P) - Gray color - equivalent to 281482

Specifications

• Primary brand: WAGO
• Functions: Insulated push-in type comb-style jumper bar
• Design: 2-way
• Poles: 2-poles (2P)
• Color: Gray
• Dimensions: H5mm x W10.3mm x D20.6mm
• Material: Polyamide (PA) 66
• ETIM code: EC000489
• GTIN code: 4044918523042
• eClass code: 27-14-11-40
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 281-482
• Manufacturer product status: Commercialized
• Equivalent to: 281482
• EAN code: 4044918523042
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated push-in type comb-style jumper bar - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918523042
• Packaging type: box
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.009MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.5g

Physical data

• Depth: 20.6 mm / 0.811 inches
• Height: 5 mm / 0.197 inches
• Jumper assignment: 1-2
• Width: 10.3 mm / 0.405 inches
