Wago - 282-107

WAGO

WAGO - 282-107

Part number: 60290210

$9.68

Ships in manufacturer lead time. Contact us for an ETA.

60290210

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

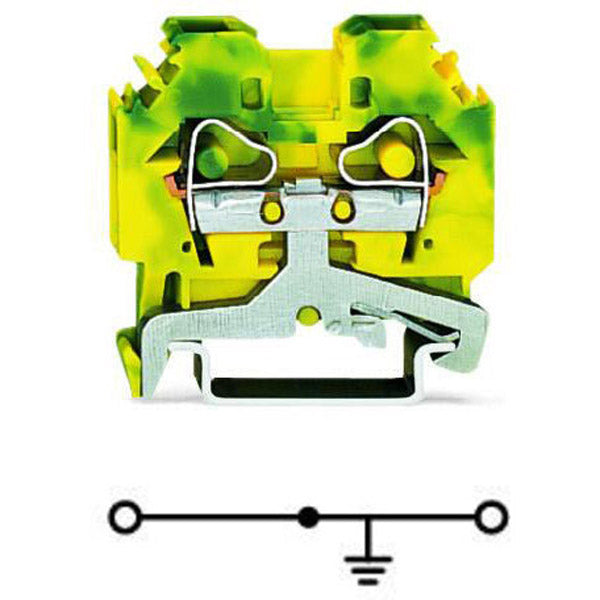

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (282 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 282107

Specifications

  • Primary brand: WAGO
  • Functions: Ground/earthing terminal block
  • Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry
  • Poles: 1 grounding / protective-earth (1PE)
  • Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
  • Color: Green-Yellow
  • Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
  • Connection type: CAGE CLAMP spring connections
  • Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
  • Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
  • Dimensions: H46.5mm x W8mm x D37mm
  • Net Width (mm): 8mm
  • Material: Polyamide (PA) 66
  • Customs Tariff Number: 85369010000
  • ETIM code: EC000901
  • GTIN code: 4044918550925
  • eClass code: 27-14-11-41
  • Order code / Manufacturer SKU: 282-107
  • Manufacturer product status: Commercialized
  • Equivalent to: 282107
  • EAN code: 4045454084523
  • Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
  • Location of origin: India
  • Level 1 category: Electrical components
  • Level 2 category: Terminal blocks
  • Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

  • Country of origin: IN
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-41
  • eCl@ss 9.0: 27-14-11-41
  • ETIM 8.0: EC000901
  • ETIM 9.0: EC000901
  • GTIN: 4044918550925
  • Packaging type: box
  • PU (SPU): 50 pcs

Connection data

  • Clamping units: 2
  • Connection 1 - Actuation type: Operating tool
  • Connection 1 - Connectable conductor materials: Copper
  • Connection 1 - Connection technology: CAGE CLAMP®
  • Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
  • Connection 1 - Wiring direction: Side-entry wiring
  • Number of levels: 1
  • Total number of potentials: 1

Electrical data

  • Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): 3f3b1c60-0f1b-43ae-9c84-8228a423ff39
  • SCIP notification number (Belgium): 0962ef8e-fc6f-4a9c-874e-34764fce7d81
  • SCIP notification number (Bulgaria): 160e05d9-498a-4107-a359-f52236766aa6
  • SCIP notification number (Czech Republic): 73a01a4d-6d42-4460-a718-bb328e979e34
  • SCIP notification number (Denmark): 5e260d57-98fe-407d-bc9a-c3ad6eb59eb5
  • SCIP notification number (Finland): 0360c2d6-40c9-4e0b-a444-3f8a0c6f3ca2
  • SCIP notification number (France): 59bfe626-47d7-4f7a-b0f4-1774b8d27f9e
  • SCIP notification number (Germany): 906c6082-c7b5-4c85-b8eb-25a38dbdae29
  • SCIP notification number (Hungary): aeac8f8d-3d0c-4153-9f22-7f944b24e905
  • SCIP notification number (Italy): 78123e31-a9f8-4fba-95ec-55bed939f006
  • SCIP notification number (Netherlands): ccfa0b7b-0661-4a4f-a238-ed3c01e51290
  • SCIP notification number (Poland): 5c8e5b57-5108-4d31-914e-11edb0f09c85
  • SCIP notification number (Romania): 49c37848-df30-4c13-b9de-e96eb2547d7b
  • SCIP notification number (Sweden): 1ff09f3f-c2b8-4cf2-a674-404c269badb7

Environmental requirements

  • Continuous operating temperature: -60 … +105 °C
  • Processing temperature: -35 … +85 °C

Material data

Mechanical data

  • Design: horizontal type
  • Marking level: Side marking
  • Mounting type: DIN-35 rail

Physical data

  • Depth from upper-edge of DIN-rail: 37 mm / 1.457 inches
  • Height: 46.5 mm / 1.831 inches
  • Width: 8 mm / 0.315 inches
