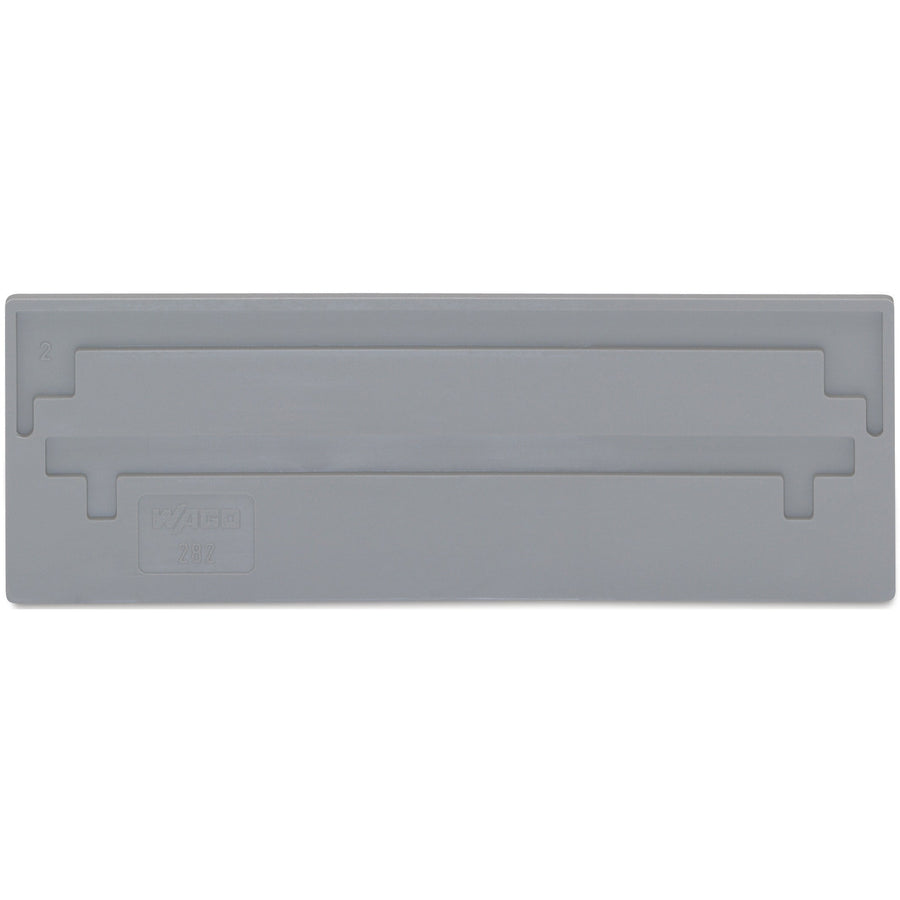

WAGO - 282-309

Oversized separator / partition / barrier plate - WAGO (282 series) - Gray color (2mm width) - equivalent to 282309

Specifications

• Primary brand: WAGO
• Functions: Oversized separator / partition / barrier plate
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Gray
• Dimensions: H91.9mm x W2mm x D31mm
• Net Width (mm): 2mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-33
• GTIN code: 4017332293105
• Customs Tariff Number: 85389099990
• ETIM code: EC000886
• Order code / Manufacturer SKU: 282-309
• Manufacturer product status: Commercialized
• Equivalent to: 282309
• EAN code: 4017332293105
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Oversized separator / partition / barrier plate - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332293105
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.127MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4g

Physical data

• Depth: 31 mm / 1.22 inches
• Height: 91.9 mm / 3.618 inches
• Width: 2 mm / 0.079 inches
