WAGO - 282-687

Part number: 282-687

$14.43

Ships in manufacturer lead time. Contact us for an ETA.

282-687

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

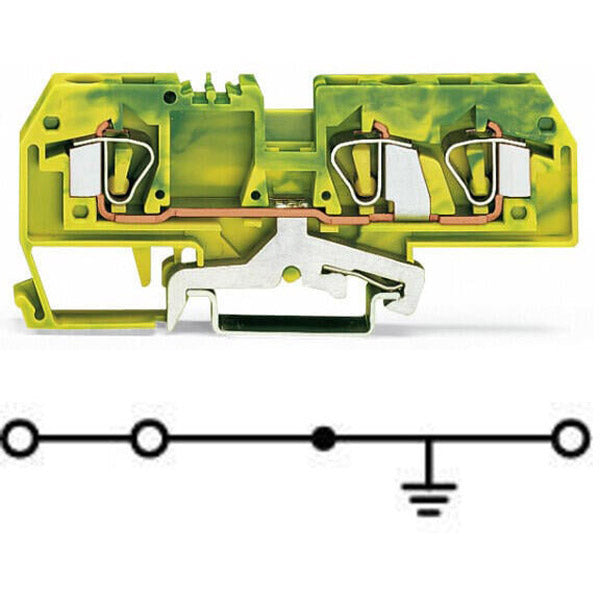

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (282 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (1 clamp + 2 clamps) (1+2) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 282687

Specifications

  • Primary brand: WAGO
  • Functions: Ground/earthing terminal block
  • Design: 1-deck/level|center marking slot
  • Poles: 1 grounding / protective-earth (1PE)
  • Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
  • Color: Green-Yellow
  • Connection capacity: 3-wires (1 clamp + 2 clamps) (1+2)
  • Connection type: CAGE CLAMP spring connections
  • Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
  • Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
  • Dimensions: H93mm x W8mm x D32.5mm
  • Net Width (mm): 8mm
  • Material: Polyamide (PA) 66
  • Customs Tariff Number: 85369010000
  • ETIM code: EC000901
  • GTIN code: 4044918471749
  • eClass code: 27-14-11-41
  • Order code / Manufacturer SKU: 282-687
  • Manufacturer product status: Commercialized
  • Equivalent to: 282687
  • EAN code: 4044918471749
  • Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1505033|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
  • Location of origin: Poland
  • Level 1 category: Electrical components
  • Level 2 category: Terminal blocks
  • Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

  • Country of origin: PL
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-41
  • eCl@ss 9.0: 27-14-11-41
  • ETIM 8.0: EC000901
  • ETIM 9.0: EC000901
  • GTIN: 4044918471749
  • Packaging type: box
  • Product Group: 1 (Rail Mounted Terminal Blocks)
  • PU (SPU): 25 pcs

Connection data

  • Clamping units: 3
  • Connection 1 - Actuation type: Operating tool
  • Connection 1 - Connectable conductor materials: Copper
  • Connection 1 - Connection technology: CAGE CLAMP®
  • Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
  • Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
  • Connection 1 - Wiring direction: Front-entry wiring
  • Number of levels: 1
  • Total number of potentials: 1

Electrical data

  • Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): c146e775-1838-43a8-81a7-b043e03b0931
  • SCIP notification number (Belgium): fad6aefa-3034-4b2b-a1cb-e2717c19691f
  • SCIP notification number (Bulgaria): 199898d1-e9f6-4cf9-803b-e021c1c4aa7d
  • SCIP notification number (Czech Republic): a91e7af7-0888-4354-84d9-ffb5114bf341
  • SCIP notification number (Denmark): 3dc58e58-baba-4342-a282-ce858ab68f59
  • SCIP notification number (Finland): 71fba3d7-fe48-4d33-9c14-db48abe701ab
  • SCIP notification number (France): c74a78c0-24c2-4c5d-81a1-33ccb1f5b8a2
  • SCIP notification number (Germany): cab928de-9d15-46c0-ba24-c654ef721485
  • SCIP notification number (Hungary): 804fb27c-4e15-4558-b86b-7b0dd8331744
  • SCIP notification number (Italy): c5d5a325-1642-4365-be34-57f168dffa85
  • SCIP notification number (Netherlands): 5305f689-b9a3-4687-b7c6-f839e2bbe57f
  • SCIP notification number (Poland): 435a1e2a-f9b6-433f-bb43-3aab61afd19d
  • SCIP notification number (Romania): bdd7aa23-cfd9-4f32-ac6b-cb67ebc3cbb7
  • SCIP notification number (Sweden): dc0029a0-3f52-4b6b-b619-a563c5361ce5

Environmental requirements

  • Continuous operating temperature: -60 … +105 °C
  • Processing temperature: -35 … +85 °C

Material data

Mechanical data

  • Design: horizontal type
  • Marking level: Center marking
  • Mounting type: DIN-35 rail

Physical data

  • Depth from upper-edge of DIN-rail: 32.5 mm / 1.28 inches
  • Height: 93 mm / 3.661 inches
  • Width: 8 mm / 0.315 inches
