WAGO - 282-691

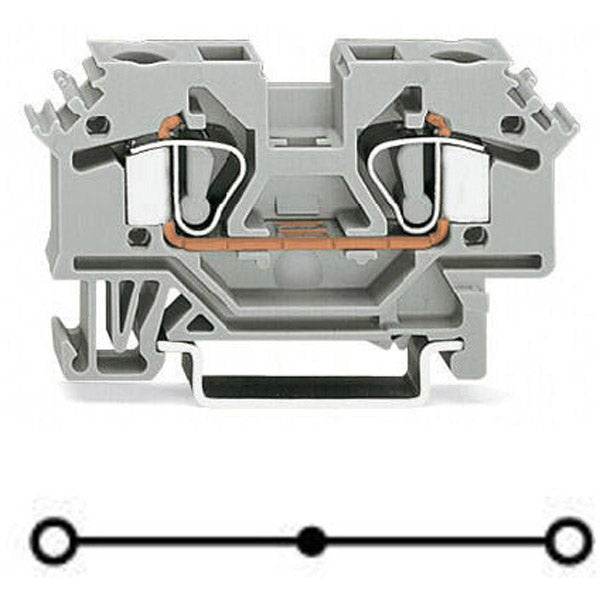

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - Suitable for Ex e II applications - WAGO (282 series) - Light Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - Rated current 39A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 282691

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|Suitable for Ex e II applications
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (Ex e II) 39A
• Color: Light Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (Ex e II) 550V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H62mm x W8mm x D31.5mm
• Net Width (mm): 8mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC000897
• eClass code: 27-14-11-20
• GTIN code: 4044918306898
• Order code / Manufacturer SKU: 282-691
• Manufacturer product status: Commercialized
• Equivalent to: 282691
• EAN code: 4044918306898
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1505033|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|- UR - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|Approvals for hazardous areas|- AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892 (AEx e II resp. Ex e II)|- ATEX - Physikalisch Technische Bundesanstalt (PTB) - certificate PTB 98 ATEX 3131 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000232 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4044918306898
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 39A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Reference hazardous areas: See application instructions in section “Knowledge and
  Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 1.186W
• Power Loss - Rated current I_N for specified power loss: 39A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: light gray
• Fire load: 0.207MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 12.6g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 31.5 mm / 1.24 inches
• Height: 62 mm / 2.441 inches
• Width: 8 mm / 0.315 inches
