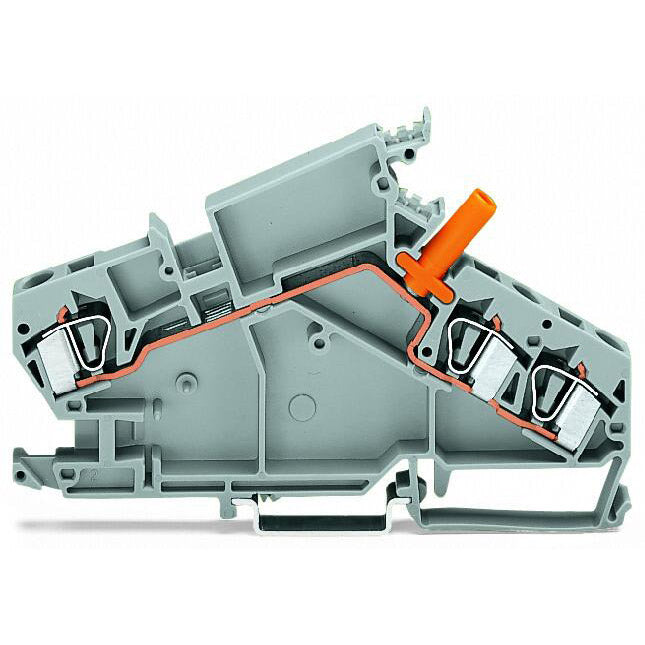

Feed-through/thru terminal block with 1-deck/level + center marking slot - with touchproof test point - WAGO (282 series) - Gray - 1 feed-through pole (1P) / 3-wires (1 clamp + 2 clamps) (1+2) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - Rated current 30A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 282866

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|center marking slot|with touchproof test point
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 30A|(UL) 30A|(CSA) 5A
• Color: Gray
• Connection capacity: 3-wires (1 clamp + 2 clamps) (1+2)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 600V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H122mm x W8mm x D74mm
• Net Width (mm): 8mm
• Material: Polyamide (PA) 66
• GTIN code: 4044918454179
• Customs Tariff Number: 85369010000
• ETIM code: EC000897
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 282-866
• Manufacturer product status: Commercialized
• Equivalent to: 282866
• EAN code: 4044918454179
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant with exemption (6(c))|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4044918454179
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 20 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 0.702W
• Power Loss - Rated current I_N for specified power loss: 30A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 30A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): af56c741-f0e8-4955-b49b-8f8fc82fe364
• SCIP notification number (Belgium): aa084f89-0e23-4926-9853-1a1fcb2250fb
• SCIP notification number (Bulgaria): 6c1d0add-de57-4173-b2c4-abfa4bc2e54e
• SCIP notification number (Czech Republic): 6628bf33-2b10-4712-b499-edb7ca9b9a0e
• SCIP notification number (Denmark): dfa28db7-d708-4942-a1b6-f6494bf7fde8
• SCIP notification number (Finland): 899334a2-f2ce-4011-a8c7-02a6f243263d
• SCIP notification number (France): 2827d88e-ddfd-4fd7-bf01-5f2e9bf73c6c
• SCIP notification number (Germany): d365d9fa-8b13-4253-bc7f-6ef92f851b30
• SCIP notification number (Hungary): 0a2b2bdf-1c89-49e5-bc0f-ff3024c42688
• SCIP notification number (Italy): c6327115-6b04-4046-826e-95e156f00357
• SCIP notification number (Netherlands): cda58c6a-3fbb-4ebc-9d62-97186f5a5255
• SCIP notification number (Poland): c07a4f33-3c81-4785-ac63-9a0d3118fa7d
• SCIP notification number (Romania): 21a5cc61-4eae-4a07-9187-6758ea8633fe
• SCIP notification number (Sweden): 645c65f5-6a02-458b-8f48-f942ff34581b

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.613MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 36.4g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 74 mm / 2.913 inches
• Height: 122 mm / 4.803 inches
• Width: 8 mm / 0.315 inches
