WAGO - 283-101

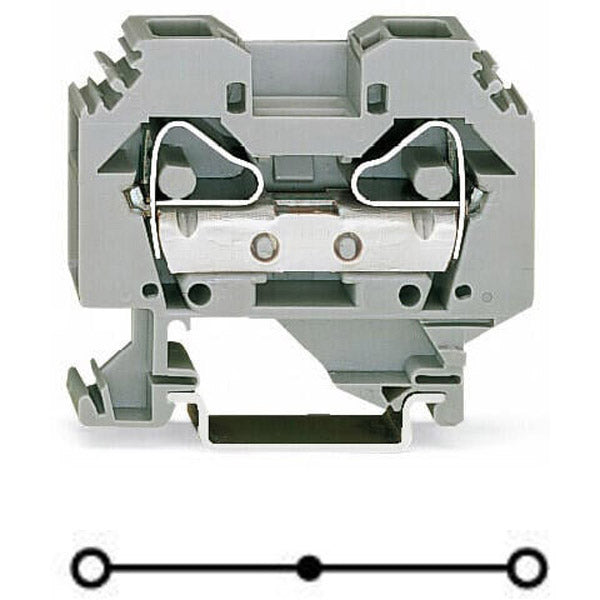

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - WAGO (283 series) - Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...16mm2 / for #24AWG...#6AWG - Rated current 76A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (12mm width) - equivalent to 283101

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 76A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...16mm2 fine stranded or solid conductors|for #24AWG...#6AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H58mm x W12mm x D45.5mm
• Net Width (mm): 12mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• eClass code: 27-14-11-20
• GTIN code: 4050821413110
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 283-101
• Manufacturer product status: Commercialized
• Equivalent to: 283101
• EAN code: 4050821413110
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7895|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1536072|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120777|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4050821413110
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Connection 1 - Strip length: 16 … 17 mm / 0.63 … 0.67 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 2.426W
• Power Loss - Rated current I_N for specified power loss: 76A
• Power Loss - Resistance value for specified, current-dependent power loss: 0Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 76A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.374MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 27.2g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 45.5 mm / 1.791 inches
• Height: 58 mm / 2.283 inches
• Width: 12 mm / 0.472 inches
