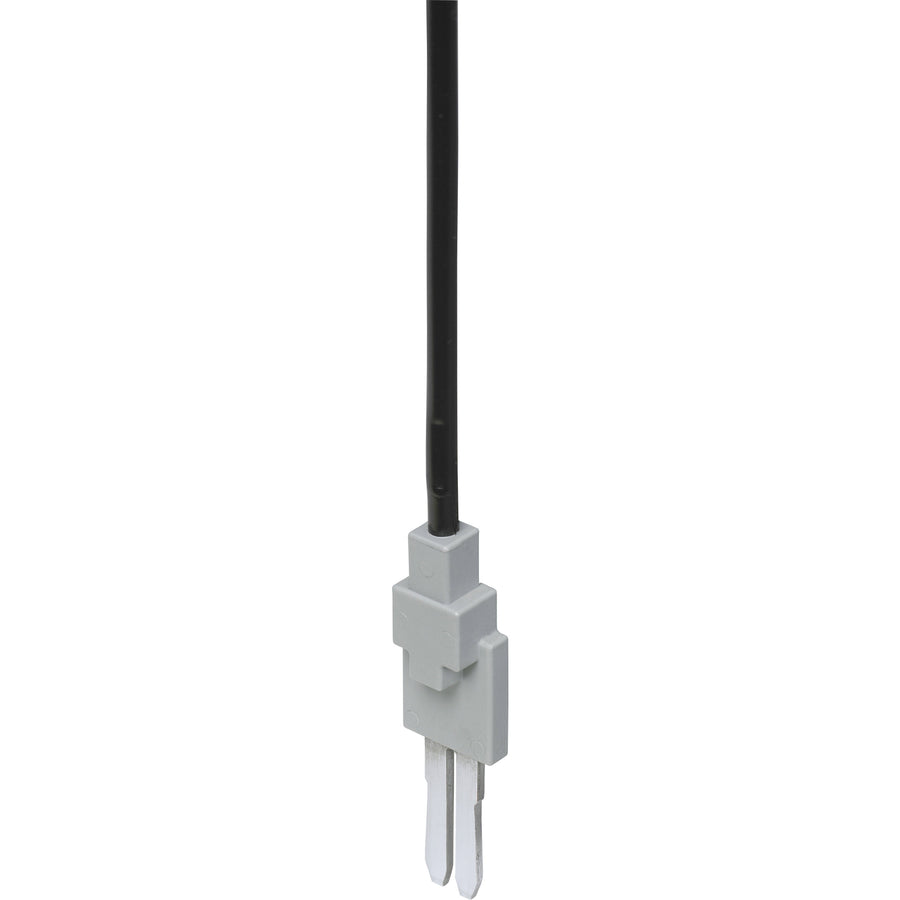

WAGO - 283-407

Power tap - WAGO (283 series) - for 16mm2 - Rated current 24A - Gray color - equivalent to 283407

Specifications

• Primary brand: WAGO
• Functions: Power tap
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 24A
• Color: Gray
• Rated operating voltage (Ue): 800V
• Cross-section: for 16mm2 / 35mm2 conductor
• Material: Polyamide (PA) 66
• Technical compatibility with: 283 series|783 series
• ETIM code: EC002848
• GTIN code: 4044918853408
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-92
• Order code / Manufacturer SKU: 283-407
• Manufacturer product status: Commercialized
• Equivalent to: 283407
• EAN code: 4044918853408
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Power tap - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-92
• eCl@ss 9.0: 27-14-11-92
• ETIM 8.0: EC002848
• ETIM 9.0: EC002848
• GTIN: 4044918853408
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 25 pcs

Electrical data

• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 15.474MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 22.1g

Notes

• Safety Information: Always push voltage tap down into the terminal block until fully inserted!
