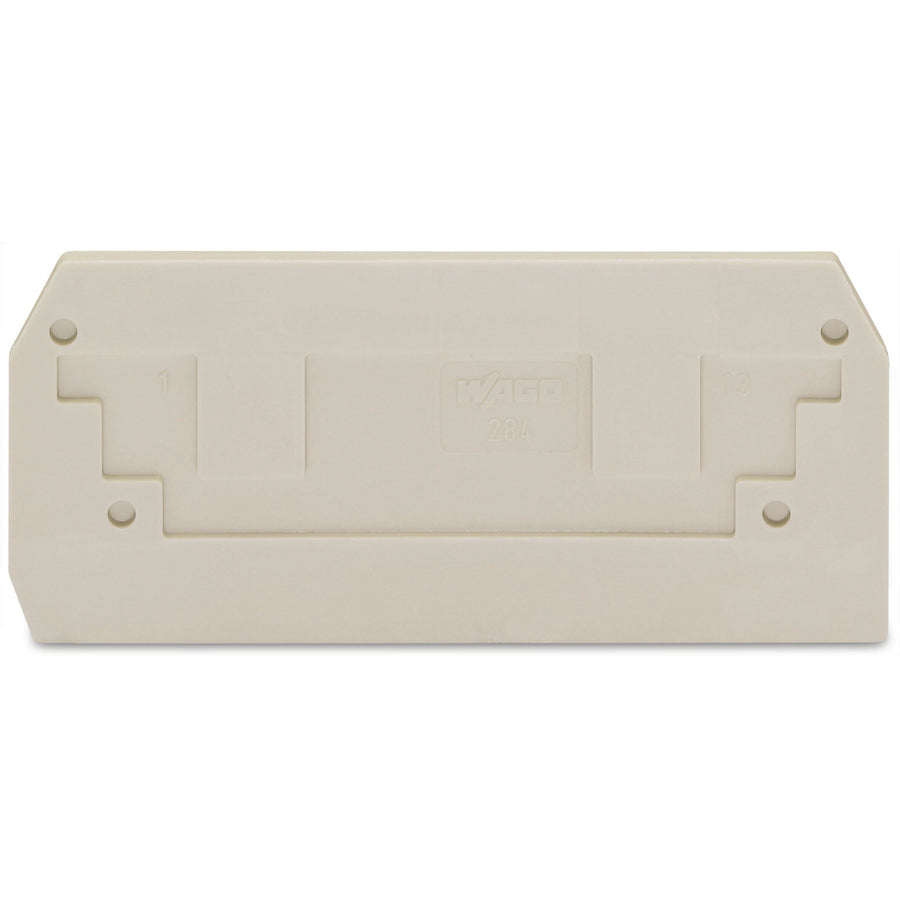

WAGO - 284-330

End and intermediate plate - WAGO (284 series) - Light Gray color (2.5mm width) - equivalent to 284330

Specifications

• Primary brand: WAGO
• Functions: End and intermediate plate
• Color: Light Gray
• Dimensions: H77.5mm x W2.5mm x D35mm
• Net Width (mm): 2.5mm
• Material: Polyamide (PA) 66
• GTIN code: 4017332291651
• eClass code: 27-14-11-33
• ETIM code: EC000886
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 284-330
• Manufacturer product status: Commercialized
• Equivalent to: 284330
• EAN code: 4017332291651
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Product title: End and intermediate plate - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332291651
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: light gray
• Fire load: 0.137MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.5g

Physical data

• Depth: 35 mm / 1.378 inches
• Height: 77.5 mm / 3.051 inches
• Width: 2.5 mm / 0.098 inches
