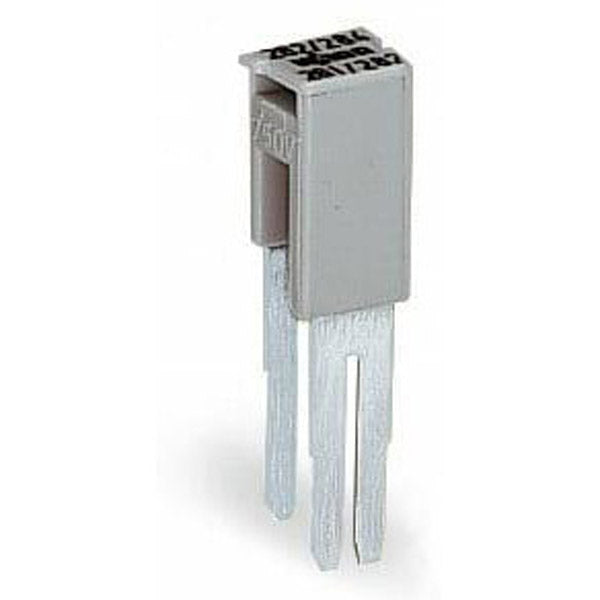

WAGO - 284-413

Insulated step-down jumper - WAGO (284 series) - 2-poles (2P) - Rated current 30A - Gray color - Dimensions W7mm x D9mm - equivalent to 284413

Specifications

• Primary brand: WAGO
• Functions: Insulated step-down jumper
• Poles: 2-poles (2P)
• Rated current: 30A
• Color: Gray
• Dimensions: W7mm x D9mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-40
• ETIM code: EC000489
• GTIN code: 4044918255455
• Order code / Manufacturer SKU: 284-413
• Manufacturer product status: Commercialized
• Equivalent to: 284413
• EAN code: 4044918255455
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated step-down jumper - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918255455
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 (25) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 30A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.017MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.8g

Physical data

• Depth: 30.6 mm / 1.205 inches
• Height: 9.6 mm / 0.378 inches
• Jumper assignment: 1-2
• Width: 7 mm / 0.276 inches
