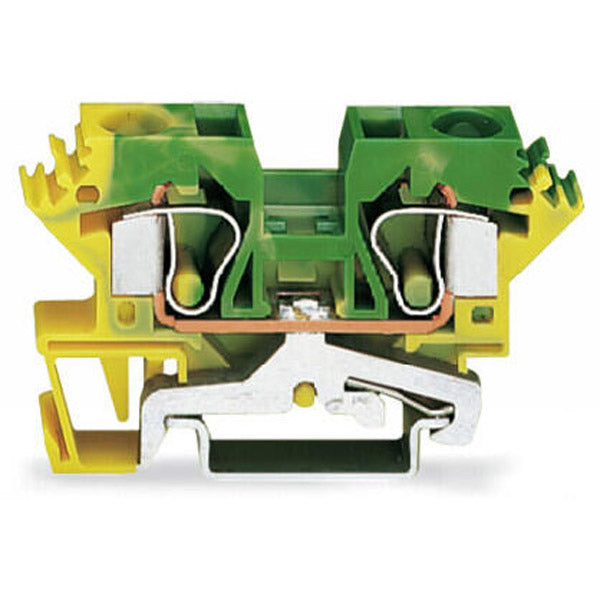

WAGO - 284-607

Part number: 284-607

$12.93

Ships in manufacturer lead time. Contact us for an ETA.

284-607

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (284 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...10mm2 / for #24AWG...#8AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (10mm width) - equivalent to 284607

Specifications

  • Primary brand: WAGO
  • Functions: Ground/earthing terminal block
  • Design: 1-deck/level|side/lateral marking slots
  • Poles: 1 grounding / protective-earth (1PE)
  • Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
  • Color: Green-Yellow
  • Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
  • Connection type: CAGE CLAMP spring connections
  • Cross-section: for 0.2mm2...10mm2 fine stranded or solid conductors|for #24AWG...#8AWG fine stranded or solid conductors
  • Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
  • Dimensions: H69mm x W10mm x D33.5mm
  • Net Width (mm): 10mm
  • Material: Polyamide (PA) 66
  • ETIM code: EC000901
  • Customs Tariff Number: 85369010000
  • eClass code: 27-14-11-41
  • GTIN code: 4045454084592
  • Order code / Manufacturer SKU: 284-607
  • Manufacturer product status: Commercialized
  • Equivalent to: 284607
  • EAN code: 4045454084592
  • Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7379|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010081|- CSA - CSA Group - C22.2 - certificate 1536073|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2178517.01|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
  • Location of origin: Germany
  • Level 1 category: Electrical components
  • Level 2 category: Terminal blocks
  • Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-41
  • eCl@ss 9.0: 27-14-11-41
  • ETIM 8.0: EC000901
  • ETIM 9.0: EC000901
  • GTIN: 4045454084592
  • Packaging type: box
  • Product Group: 1 (Rail Mounted Terminal Blocks)
  • PU (SPU): 25 pcs

Connection data

  • Clamping units: 2
  • Connection 1 - Actuation type: Operating tool
  • Connection 1 - Connectable conductor materials: Copper
  • Connection 1 - Connection technology: CAGE CLAMP®
  • Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
  • Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
  • Connection 1 - Wiring direction: Front-entry wiring
  • Number of levels: 1
  • Total number of potentials: 1

Electrical data

  • Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): c155851e-51b7-4dbb-9786-0ff56c0789a2
  • SCIP notification number (Belgium): 61170ba6-8da4-4761-a5fc-605f53d02107
  • SCIP notification number (Bulgaria): fb97b439-f56d-489c-b991-88895786d5d7
  • SCIP notification number (Czech Republic): ecf32cb8-083f-46b4-b518-7691ff7919aa
  • SCIP notification number (Denmark): 56959675-483c-45ee-88bd-1c6217e41458
  • SCIP notification number (Finland): e27678e1-2d36-4241-ba44-2ddd7c6afc77
  • SCIP notification number (France): 702c533c-f1ba-4425-a53f-aad7c314203b
  • SCIP notification number (Germany): 882323f4-b872-46dc-99e0-992cc08bbbfb
  • SCIP notification number (Hungary): 28e0b038-266f-4faf-a8d5-25e6de5e62b4
  • SCIP notification number (Italy): c2b1edc7-555c-499a-9fb8-e6608645fa8c
  • SCIP notification number (Netherlands): 29122cc8-c0bf-4881-8264-11e577cba40b
  • SCIP notification number (Poland): a6586cf3-e53e-4074-a527-64ca7626743c
  • SCIP notification number (Romania): 426538b0-4fd1-464e-a353-4d288796d15b
  • SCIP notification number (Sweden): ab4a58d4-8640-4650-a5fb-16bc76adf92a

Environmental requirements

  • Continuous operating temperature: -60 … +105 °C
  • Processing temperature: -35 … +85 °C

Material data

Mechanical data

  • Design: horizontal type
  • Marking level: Side marking
  • Mounting type: DIN-35 rail

Physical data

  • Depth from upper-edge of DIN-rail: 33.5 mm / 1.319 inches
  • Height: 69 mm / 2.717 inches
  • Width: 10 mm / 0.394 inches
