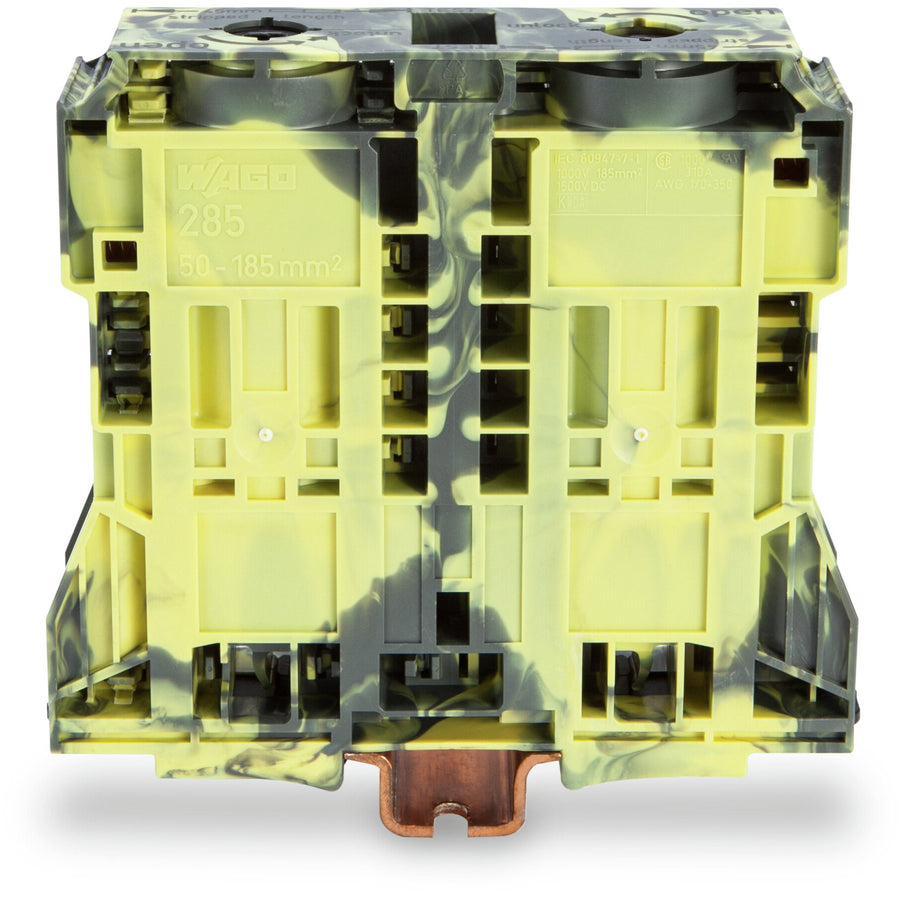

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - WAGO (285 series) - Dark Gray-Yellow - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - 185mm2 nominal cross-section - for 50mm2...185mm2 / for #1/0AWG...#350kcmil fine stranded or solid conductors - Rated current 353A - with POWER CAGE-CLAMP screw connections - DIN-35 rail (35 x 15) mounting (32mm width) - equivalent to 2851181

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry|2 jumper slots
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 353A|(UL) 310A|(CSA) 310A
• Color: Dark Gray-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 1000V|(IEC) 1500V|(UL) 600V|(CSA) 1000V
• Rated impulse voltage (Uimp): (IEC) 12kV
• Connection type: POWER CAGE-CLAMP screw connections
• Cross-section: for 50mm2...185mm2 fine stranded or solid conductors|for 50mm2...150mm2 fine stranded conductors with insulated ferrule|for #1/0AWG...#350kcmil fine stranded or solid conductors|for #1/0AWG...#300kcmil fine stranded conductors with insulated ferrule|185mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H130mm x W32mm x D116mm
• Net Width (mm): 32mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143418508
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-20
• ETIM code: EC000897
• Order code / Manufacturer SKU: 285-1181
• Manufacturer product status: Commercialized
• Equivalent to: 2851181
• EAN code: 4055143418508
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7965|- CSA - DEKRA Certification B.V. - C22.2 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-126013|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143418508
• Packaging type: box
• PU (SPU): 5 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: T-wrench; 8 mm
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: POWER CAGE CLAMP
• Connection 1 - Fine-stranded conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 50 … 150 mm² / 1/0 AWG … 300 kcmil
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Connection 1 - Nominal cross-section: 185 mm² / 350 kcmil
• Connection 1 - Solid conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Connection 1 - Stranded conductor: 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Connection 1 - Strip length: 45 … 47 mm / 1.77 … 1.85 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• General information - Voltage type 1: AC/DC
• General information - Voltage type 2: DC
• Power Loss - Power loss, per pole (potential): 11.215W
• Power Loss - Rated current I_N for specified power loss: 353A
• Power Loss - Resistance value for specified, current-dependent power loss: 9Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 310A
• Ratings per CSA - Rated current CSA (Use Group D): 310A
• Ratings per CSA - Rated voltage CSA (Use Group B): 1000V
• Ratings per CSA - Rated voltage CSA (Use Group C): 1000V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 353A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 12kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per IEC/EN 2 - Rated impulse withstand voltage (III/3): 12kV
• Ratings per IEC/EN 2 - Rated voltage (III/3): 1500V
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 310A
• Ratings per UL - Rated current UL (Use Group C): 310A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: dark gray/yellow
• Fire load: 5.812MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 528.6g

Mechanical data

• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-rail 35 x 15

Physical data

• Depth from upper-edge of DIN-rail: 116 mm / 4.567 inches
• Height: 130 mm / 5.118 inches
• Width: 32 mm / 1.26 inches
