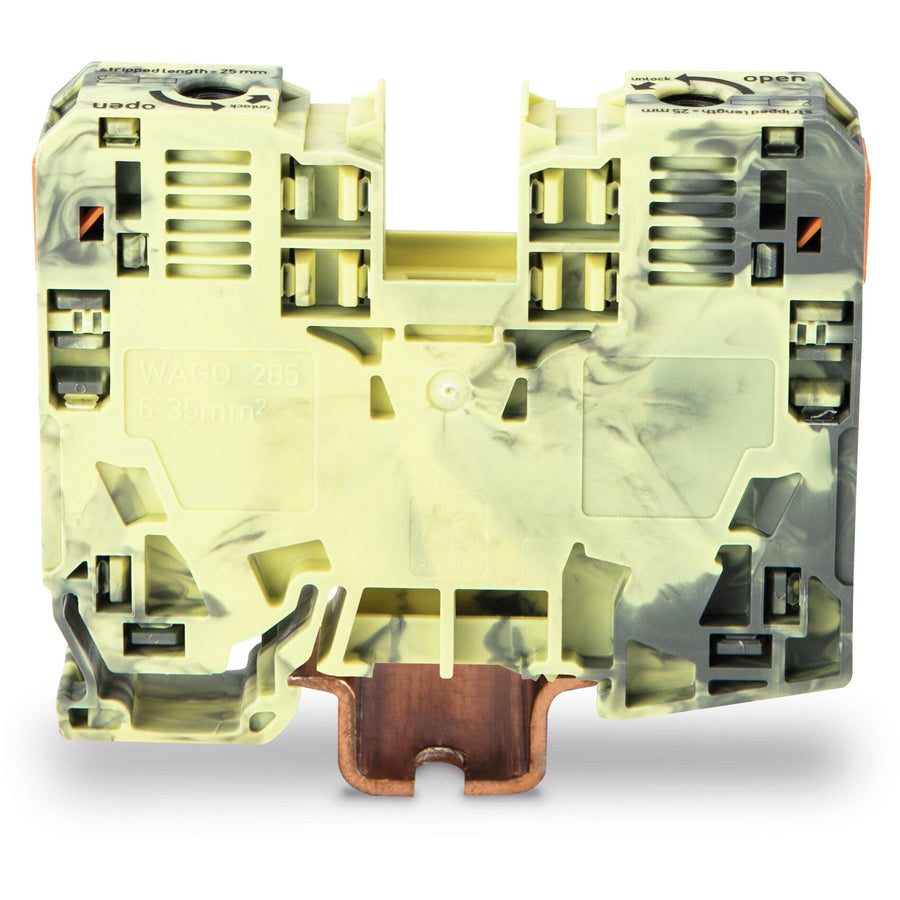

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - WAGO (285 series) - Dark Gray-Yellow - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - 35mm2 nominal cross-section - for 6mm2...35mm2 / for #8AWG...#2AWG - Rated current 125A - with POWER CAGE-CLAMP screw connections - DIN-35 rail (35 x 15) mounting (16mm width) - equivalent to 285131

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry|2 jumper slots
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 125A|(UL) 115A|(CSA) 115A
• Color: Dark Gray-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 1000V|(UL) 600V|(CSA) 600V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: POWER CAGE-CLAMP screw connections
• Cross-section: for 6mm2...35mm2 fine stranded or solid conductors|for 6mm2...35mm2 fine stranded conductors with insulated ferrule|for #8AWG...#2AWG fine stranded or solid conductors|for #8AWG...#2AWG fine stranded conductors with insulated ferrule|35mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H86mm x W16mm x D63mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC000897
• GTIN code: 4055143500838
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 285-131
• Manufacturer product status: Commercialized
• Equivalent to: 285131
• EAN code: 4055143500838
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CSA - DEKRA Certification B.V. - C22.2 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143500838
• Packaging type: box
• PU (SPU): 15 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: POWER CAGE CLAMP
• Connection 1 - Fine-stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Nominal cross-section: 35 mm²
• Connection 1 - Solid conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Strip length: 25 mm / 0.98 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 4.062W
• Power Loss - Rated current I_N for specified power loss: 125A
• Power Loss - Resistance value for specified, current-dependent power loss: 0Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 115A
• Ratings per CSA - Rated current CSA (Use Group D): 115A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 125A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 115A
• Ratings per UL - Rated current UL (Use Group C): 115A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: dark gray/yellow
• Fire load: 0.717MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 79.2g

Mechanical data

• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-rail 35 x 15

Physical data

• Depth from upper-edge of DIN-rail: 63 mm / 2.48 inches
• Height: 86 mm / 3.386 inches
• Width: 16 mm / 0.63 inches
