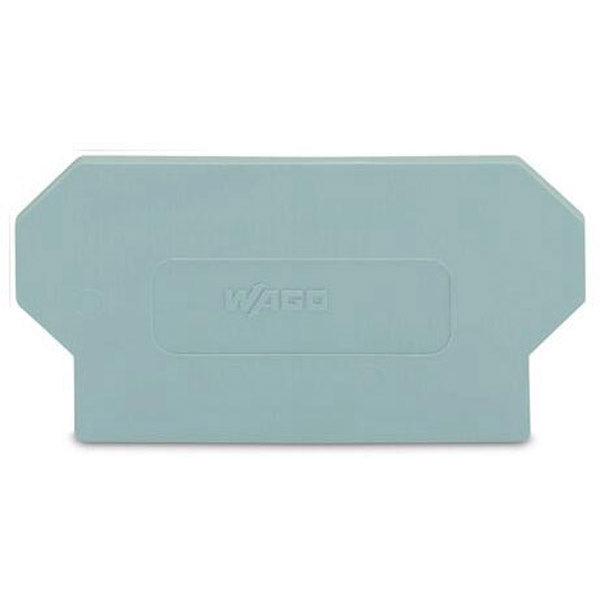

WAGO - 285-338

Oversized separator / partition / barrier plate - WAGO (285 series) - Light Gray color - equivalent to 285338

Specifications

• Primary brand: WAGO
• Functions: Oversized separator / partition / barrier plate
• Color: Light Gray
• Dimensions: H115mm x W2mm x D50mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85389099990
• eClass code: 27-14-11-33
• ETIM code: EC000886
• GTIN code: 4017332199421
• Order code / Manufacturer SKU: 285-338
• Manufacturer product status: Commercialized
• Equivalent to: 285338
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Product title: Oversized separator / partition / barrier plate - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332199421
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: light gray
• Fire load: 0.234MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 7.8g

Physical data

• Depth: 50 mm / 1.969 inches
• Height: 115 mm / 4.528 inches
• Width: 2 mm / 0.079 inches
