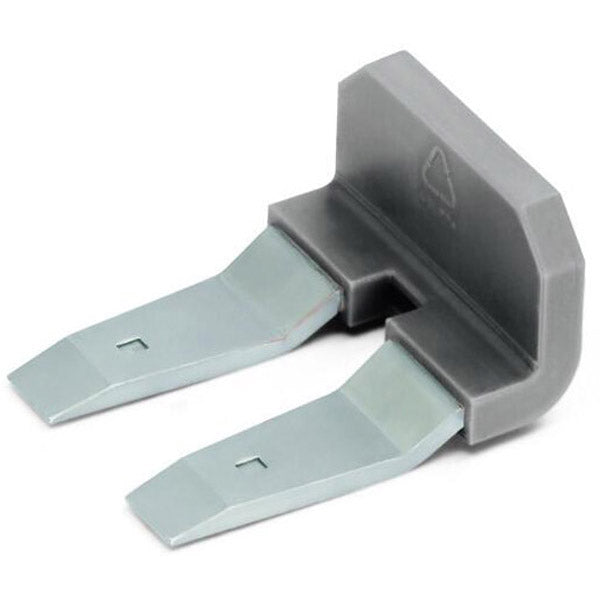

WAGO - 285-450

Insulated adjacent jumper - WAGO (285 series) - 2-poles (2P) - Rated current 150A - Gray color - equivalent to 285450

Specifications

• Primary brand: WAGO
• Functions: Insulated adjacent jumper
• Poles: 2-poles (2P)
• Rated current: 150A
• Color: Gray
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-40
• ETIM code: EC000489
• GTIN code: 4045454549664
• Order code / Manufacturer SKU: 285-450
• Manufacturer product status: Commercialized
• Equivalent to: 285450
• EAN code: 4045454549664
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 - certificate 154112|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated adjacent jumper - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4045454549664
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 150A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.09MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 26.4g

Physical data

• Depth: 40.6 mm / 1.598 inches
• Height: 19.4 mm / 0.764 inches
• Jumper assignment: 1-2
• Width: 34.4 mm / 1.354 inches
