WAGO - 285-634

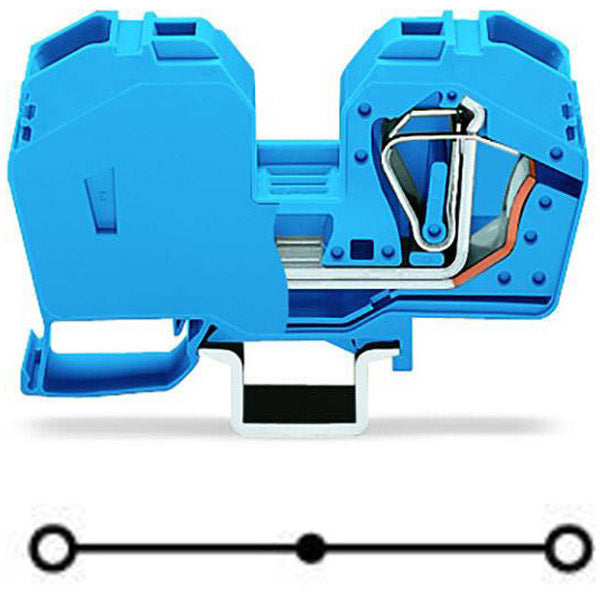

Neutral-through terminal block with 1-deck/level + built-in end plate (terminal is closed on both sides) + side/lateral and center marking slots - WAGO (285 series) - Blue - Neutral-through pole (N) / 2-wires (1 clamp + 1 clamp) (1+1) - 35mm2 nominal cross-section - for 6mm2...35mm2 / for #10AWG...#2AWG - Rated current 125A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15) mounting (16mm width) - equivalent to 285634

Specifications

• Primary brand: WAGO
• Functions: Neutral-through terminal block
• Design: 1-deck/level|built-in end plate (terminal is closed on both sides)|side/lateral and center marking slots
• Poles: Neutral-through pole (N)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 125A|(UL) 115A|(CSA) 120A
• Color: Blue
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 1000V|(UL) 600V|(CSA) 600V
• Rated impulse voltage (Uimp): (IEC) 12kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 6mm2...35mm2 fine stranded or solid conductors|for #10AWG...#2AWG fine stranded or solid conductors|35mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H100mm x W16mm x D53mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• Customs Tariff Number: 85369010000
• GTIN code: 4045454218706
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 285-634
• Manufacturer product status: Commercialized
• Equivalent to: 285634
• EAN code: 4045454218706
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010080|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- CSA - DEKRA Certification B.V. - C22.2 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Neutral-through terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4045454218706
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 15 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 6 … 35 mm² / 10 … 2 AWG
• Connection 1 - Nominal cross-section: 35 mm²
• Connection 1 - Solid conductor: 6 … 35 mm² / 10 … 2 AWG
• Connection 1 - Strip length: 23 mm / 0.91 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 4.062W
• Power Loss - Rated current I_N for specified power loss: 125A
• Power Loss - Resistance value for specified, current-dependent power loss: 0Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 125A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 12kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per IEC/EN 2 - Rated impulse withstand voltage (III/3): 12kV
• Ratings per IEC/EN 2 - Rated voltage (III/3): 1500V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: blue
• Fire load: 1.082MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 87.5g

Mechanical data

• Marking level: Center/side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 53 mm / 2.087 inches
• Height: 100 mm / 3.937 inches
• Width: 16 mm / 0.63 inches
