WAGO - 285-995

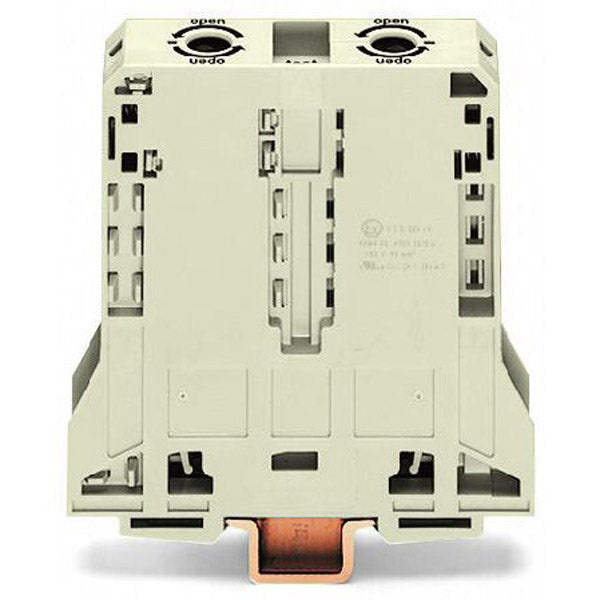

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - Suitable for Ex e II applications - WAGO (285 series) - Light Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - 95mm2 nominal cross-section - for 25mm2...95mm2 / for #4AWG...#4/0AWG - Rated current 211A - with POWER CAGE-CLAMP screw connections - DIN-35 rail (35 x 15) mounting (25mm width) - equivalent to 285995

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry|2 jumper slots|Suitable for Ex e II applications
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (Ex e II) 211A|(UL) 200A|(CSA) 210A|(Ex e II with jumper) 175A
• Color: Light Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (UL) 600V|(CSA) 600V|(Ex e II) 880V
• Connection type: POWER CAGE-CLAMP screw connections
• Cross-section: for 25mm2...95mm2 fine stranded or solid conductors|for 25mm2...95mm2 fine stranded conductors with insulated ferrule|for #4AWG...#4/0AWG fine stranded or solid conductors|for #4AWG...#4/0AWG fine stranded conductors with insulated ferrule|95mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H107mm x W25mm x D101mm
• Net Width (mm): 25mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• eClass code: 27-14-11-20
• GTIN code: 4055143254311
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 285-995
• Manufacturer product status: Commercialized
• Equivalent to: 285995
• EAN code: 4055143254311
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 98 ATEX 3134 U (II 2 G Ex eb IIC Gb or I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000177 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 16.0001U (Ex eb IIC Gb or Ex eb I Mb)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143254311
• Packaging type: box
• PU (SPU): 5 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: T-wrench; 8 mm|Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: POWER CAGE CLAMP
• Connection 1 - Fine-stranded conductor: 25 … 95 mm² / 4 … 4/0 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 25 … 95 mm² / 4 … 4/0 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 25 … 95 mm² / 4 … 4/0 AWG
• Connection 1 - Nominal cross-section: 95 mm²
• Connection 1 - Solid conductor: 25 … 95 mm² / 4 … 4/0 AWG
• Connection 1 - Stranded conductor: 25 … 95 mm² / 4 … 4/0 AWG
• Connection 1 - Strip length: 35 mm / 1.38 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 211A
• Ex information - Rated current (Ex e II) with jumper: 175A
• Ex information - Rated voltage EN (Ex e II): 880V
• Ex information - Ratings per: ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 6.233W
• Power Loss - Rated current I_N for specified power loss: 211A
• Power Loss - Resistance value for specified, current-dependent power loss: 0Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 210A
• Ratings per CSA - Rated current CSA (Use Group D): 210A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 200A
• Ratings per UL - Rated current UL (Use Group C): 200A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: light gray
• Fire load: 0.734MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 263.5g

Mechanical data

• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-rail 35 x 15

Physical data

• Depth from upper-edge of DIN-rail: 101 mm / 3.976 inches
• Height: 107 mm / 4.213 inches
• Width: 25 mm / 0.984 inches
