WAGO - 286-661

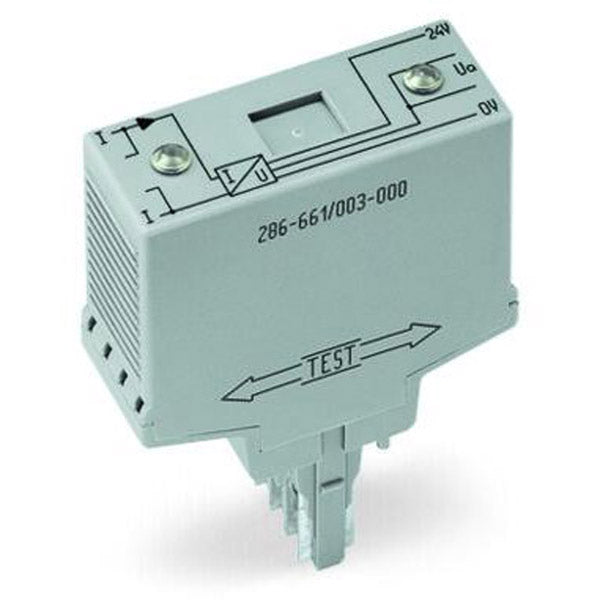

Current flow monitoring module - WAGO (286 series) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - Light Gray color - Plug-in mounting - IP20 - equivalent to 286661

Specifications

• Primary brand: WAGO
• Functions: Current flow monitoring module
• Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
• Display: Green LED; Output 0V (operation; current >80mA)|Red LED; Output 24Vdc (current flow interruption; current <80mA)
• Color: Light Gray
• Mounting mode: Plug-in
• Dimensions: H52mm x W20mm x D82.5mm
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 22mA (24Vdc; at nominal load)
• eClass code: 27-37-18-02
• Customs Tariff Number: 85364900990
• ETIM code: EC001440
• Order code / Manufacturer SKU: 286-661
• Manufacturer product status: Commercialized
• Equivalent to: 286661
• EAN code: 4017332157476
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Current flow monitoring module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-18-02
• eCl@ss 9.0: 27-37-18-02
• ETIM 8.0: EC001440
• ETIM 9.0: EC001440
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 12e65cbe-cb4a-4d55-bfc9-560d50e16394
• SCIP notification number (Belgium): 22734e31-8f12-43e5-a027-f20cabd96b66
• SCIP notification number (Bulgaria): e954e395-27e8-45a2-8eb1-4408e2571324
• SCIP notification number (Czech Republic): 5efcc77d-7691-4053-8eae-ad8fcef5d9b6
• SCIP notification number (Denmark): 7ffd275e-6612-42f5-b3fc-20e2f1bd423d
• SCIP notification number (Finland): 1d86358a-211e-416d-9aee-0de3ce0320f7
• SCIP notification number (France): 8daaa4eb-4fd9-4792-9158-6357e21c404e
• SCIP notification number (Germany): f329001a-8720-467e-ac13-e58c5584fefa
• SCIP notification number (Hungary): a05ae252-b7ad-4ea9-97a5-9bc26bc46bf3
• SCIP notification number (Italy): c6890112-a1d5-470a-aed9-57f794cd50c5
• SCIP notification number (Netherlands): 435a1988-4f9e-42ae-a852-2b8bd4a3d507
• SCIP notification number (Poland): 3a53c835-f491-4ead-8e87-bbdcf41c32f1
• SCIP notification number (Romania): 2203c846-997f-47b0-89ab-b6c4fb0840c8
• SCIP notification number (Sweden): 6ed2be51-a1d5-4d12-bd40-910d0cb4c92a

Environmental requirements

• Ambient temperature (operation): -25 … +40 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 30 K)

Material data

• Color: light gray
• Fire load: 4.266MJ
• Weight: 46.6g

Mechanical data

• Housing design: Plug for carrier terminal blocks
• Mounting type: Pluggable module for receptacle terminal blocks

Notes

• Note: Only use the product in signal processing networks that are not supplied directly from the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Width: 20 mm / 0.787 inches

Safety and protection

• Dielectric strength, input/output (AC, 1 min): 2.2kV_rms
• Insulation type: Basic insulation
• Insulation type (between adjacent devices of the same type): Double insulation (safe isolation)
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 3.8kV
• Rated voltage: 250V

Technical data

• Input - Frequency range: 50 Hz
• Input - Input signal (current): AC 0 … 6 A
• Input - Input voltage (max.): 250 VAC
• Input - Response threshold: 80 mA
• Input - Response time: 40 ms
• Input voltage drop: 10 … 100 mV
• Output (digital) - Continuous current (DO) max.: 50 mA (DC)
• Output (digital) - Switching voltage (DO) max.: Supply voltage applied
• Power supply - Current consumption at nominal supply voltage: ≤ 22 mA (+ I_DO)
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Supply voltage range: ±10 %
• Signaling - Status indicator: Green LED; Output: 0 V (operation; current > 80 mA)|Red LED; Output: 24 VDC (current flow interruption; current < 80 mA)
