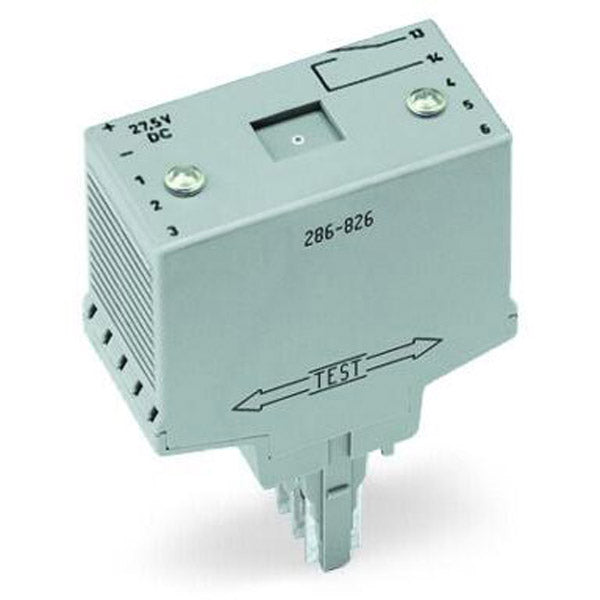

AND gate module with 6 inputs - WAGO (286 series) - supply voltage 16.8-26.4Vdc (24Vdc nom.) - Light Gray color - Plug-in mounting - equivalent to 286826

Specifications

  • Primary brand: WAGO
  • Functions: AND gate module
  • Design: 6 inputs
  • Supply voltage (DC): 16.8-26.4Vdc (24Vdc nom.)
  • Color: Light Gray
  • Rated Voltage (DC): 24-27.5Vdc
  • Mounting mode: Plug-in
  • Dimensions: H52mm x W25mm x D82.5mm
  • Ambient air temperature for operation: -25°C...+40°C
  • Humidity: 5-95% relative humidity (RH; non-condensing)
  • Current consumption: 34.6mA (24Vdc; at nominal load)
  • ETIM code: EC001417
  • eClass code: 27-24-22-16
  • GTIN code: 4045454344269
  • Customs Tariff Number: 85369010000
  • Order code / Manufacturer SKU: 286-826
  • Manufacturer product status: Commercialized
  • Equivalent to: 286826
  • EAN code: 4045454344269
  • Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Electrical components
  • Product title: AND gate module - 6 inputs - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-24-22-16
  • eCl@ss 9.0: 27-24-22-16
  • ETIM 8.0: EC001417
  • ETIM 9.0: EC001417
  • GTIN: 4045454344269
  • Packaging type: box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 10 (1) pcs

Electrical data

  • Current consumption at nominal supply voltage: ≤ 34.6 mA
  • Limiting continuous current: 3 A
  • Nominal operating voltage: 24 VDC
  • Number of make/switch-on contacts: 1
  • Operating voltage: 24 … 27.5 VDC
  • Specialty functions: with 6 inputs
  • Switching power (resistive) max.: AC 750 VA; DC 120 W
  • Switching Voltage, Max.: 250 VAC; 120 VDC

Environmental Product Compliance

  • CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8|79-94-7
  • REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
  • SCIP notification number (Austria): 5281a55b-a487-4781-82ca-b7efb8bf6945
  • SCIP notification number (Belgium): 3c4c817a-5423-4b70-8a25-2f68a7fd56c3
  • SCIP notification number (Bulgaria): d745c98a-b3fc-4f20-9022-0bf84d30970f
  • SCIP notification number (Czech Republic): 548abcc0-6789-49d4-bc1e-40ce39006448
  • SCIP notification number (Denmark): a52d66fb-bc3f-437d-85f7-d31590f006a3
  • SCIP notification number (Finland): fc9abcf3-d8e4-422d-8ed0-ab00d3fee734
  • SCIP notification number (France): c4a4cb73-79de-4571-8ded-f12abf68cb59
  • SCIP notification number (Germany): d8934dff-2cc3-4281-83d8-eb2f14d22ccc
  • SCIP notification number (Hungary): 7e3abc24-6569-4ec2-b9a3-06fa697cc59b
  • SCIP notification number (Italy): 8dcced28-7054-4217-b826-47875b8bdf82
  • SCIP notification number (Netherlands): 7ae47f24-1057-4539-bfe8-94614be395be
  • SCIP notification number (Poland): 0b3fc289-1cbe-480a-bc65-8915abb8f00c
  • SCIP notification number (Romania): aba71ace-dd54-4214-a66d-d1aef1189139
  • SCIP notification number (Sweden): dc8cc014-b686-4859-a119-e32db94a3065

Environmental requirements

  • Ambient temperature (operation): -25 … +40 °C
  • Operating altitude (max.): 2000m
  • Relative humidity: 5 … 95 % (no condensation permissible)

Material data

  • Color: light gray
  • Fire load: 0.467MJ
  • Weight: 34g

Mechanical data

  • Housing design: Plug for carrier terminal blocks
  • Mounting type: Pluggable module for receptacle terminal blocks

Physical data

  • Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
  • Height: 52 mm / 2.047 inches
  • Note (dimensions): Depth including carrier terminal block
  • Width: 25 mm / 0.984 inches

Safety and protection

  • Dielectric strength, input/output (AC, 1 min): 2.5kVrms
  • Pollution degree: 2
  • Rated impulse withstand voltage: 4kV
  • Rated voltage: 250V
