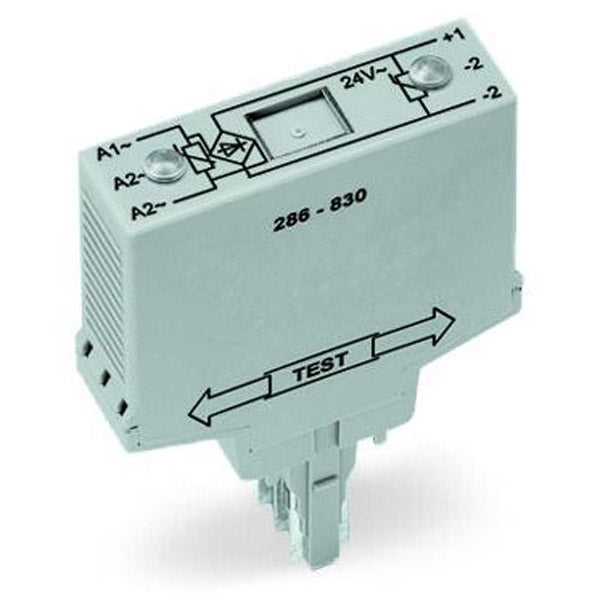

WAGO - 286-830

Bridge rectifier module with varistor protective circuit - WAGO (286 series) - control voltage 24Vac - Gray color - Plug-in mounting - equivalent to 286830

Specifications

• Primary brand: WAGO
• Functions: Bridge rectifier module with varistor protective circuit
• Color: Gray
• Control Voltage (AC): 24Vac
• Mounting mode: Plug-in
• Dimensions: H52mm x W15mm x D82.5mm
• Ambient air temperature for operation: -25°C...+40°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• eClass code: 27-04-07-01
• Customs Tariff Number: 85369010000
• GTIN code: 4045454549848
• ETIM code: EC002540
• Order code / Manufacturer SKU: 286-830
• Manufacturer product status: Commercialized
• Equivalent to: 286830
• EAN code: 4045454549848
• Compliant with standard(s): RoHS compliant with exemption (7(a))
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Bridge rectifier module with varistor protective circuit - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4045454549848
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 15 (1) pcs

Electrical data

• Nominal current: 1A
• Nominal operating voltage: 24 VAC
• Operating voltage: ≤ 35 VAC
• Specialty functions: with varistor protective circuit
• Switch-on capacity: < 2200 µF

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)
• SCIP notification number (Bulgaria): 0eeb444a-f734-44df-b87e-e101d818615a
• SCIP notification number (Czech Republic): 2f85f016-c0bd-4538-b224-c47eda8ae1b4

Environmental requirements

• Ambient temperature (operation): -25 … +40 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.336MJ
• Weight: 21.6g

Mechanical data

• Housing design: Plug for carrier terminal blocks
• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.25 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 15 mm / 0.591 inches
