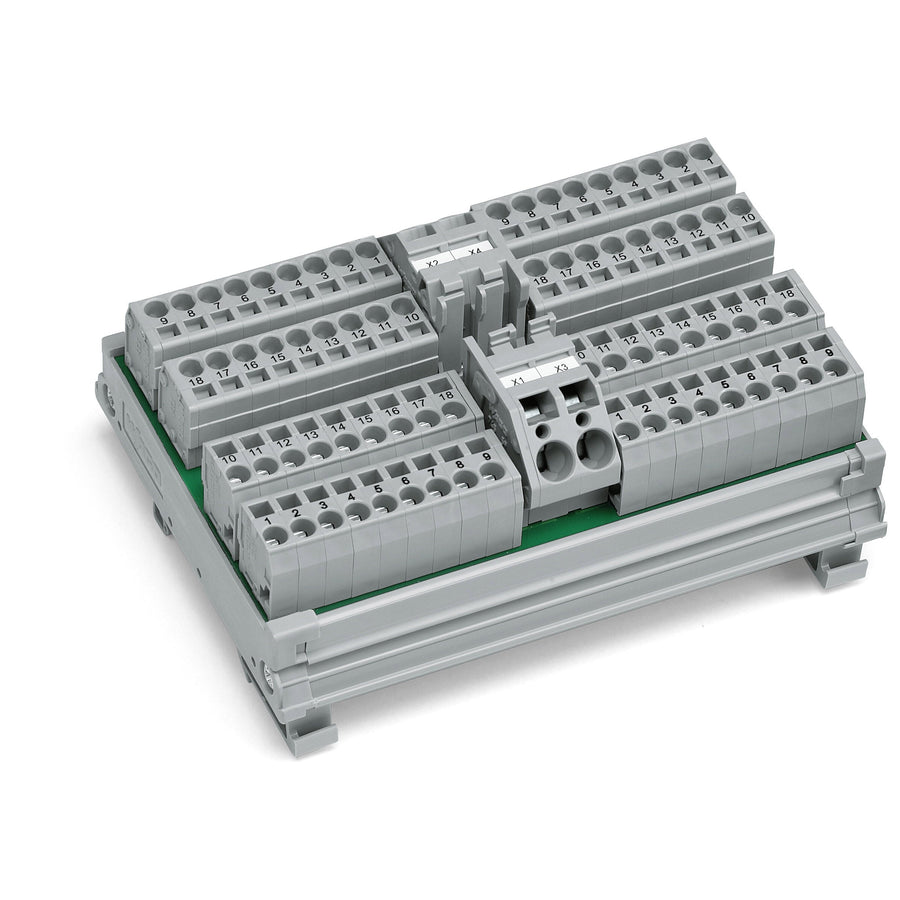

WAGO - 288-837

Potential distribution module - WAGO (288 series) - Gray color - with CAGE CLAMP spring connections - DIN-35 rail mounting (115mm width) - equivalent to 288837

Specifications

• Primary brand: WAGO
• Functions: Potential distribution module
• Color: Gray
• Rated Voltage (DC): 250Vdc
• Rated voltage (AC): 250Vac
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...6mm2 / 0.08mm2...2.5mm2 conductors
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W115mm x D45mm
• Net Width (mm): 115mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+80°C
• Customs Tariff Number: 85369010000
• GTIN code: 4045454287092
• ETIM code: EC002780
• eClass code: 27-14-11-52
• Order code / Manufacturer SKU: 288-837
• Manufacturer product status: Commercialized
• Equivalent to: 288837
• EAN code: 4045454287092
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Potential distribution module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454287092
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 4 (1) pcs

Connection data

• Clamping units: 19
• Connection technology: CAGE CLAMP^®|CAGE CLAMP^®
• Connection type: Connection points
• Connection type 1: Power supply
• Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Mating direction: 45°
• Mating direction 2: 45°
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 11 … 12 mm / 0.43 … 0.47 inches|8 … 9 mm / 0.31 … 0.35 inches
• Total number of potentials: 4
• WAGO connector: WAGO 745 Series
• WAGO connector 2: WAGO 739 Series

Electrical data

• Current per connection (max.): 12A
• Operating voltage: ≤ 250 VAC/VDC
• Total current per potential (max.): 32A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +80 °C

Material data

• Fire load: 1.475MJ
• Weight: 178.2g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 45 mm / 1.772 inches
• Height: 85 mm / 3.346 inches
• Width: 115 mm / 4.528 inches

Safety and protection

• Pollution degree: 2
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V
