Wago - 289-436

WAGO

WAGO - 289-436

Part number: 51183311

$245.00

Ships in manufacturer lead time. Contact us for an ETA.

51183311

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

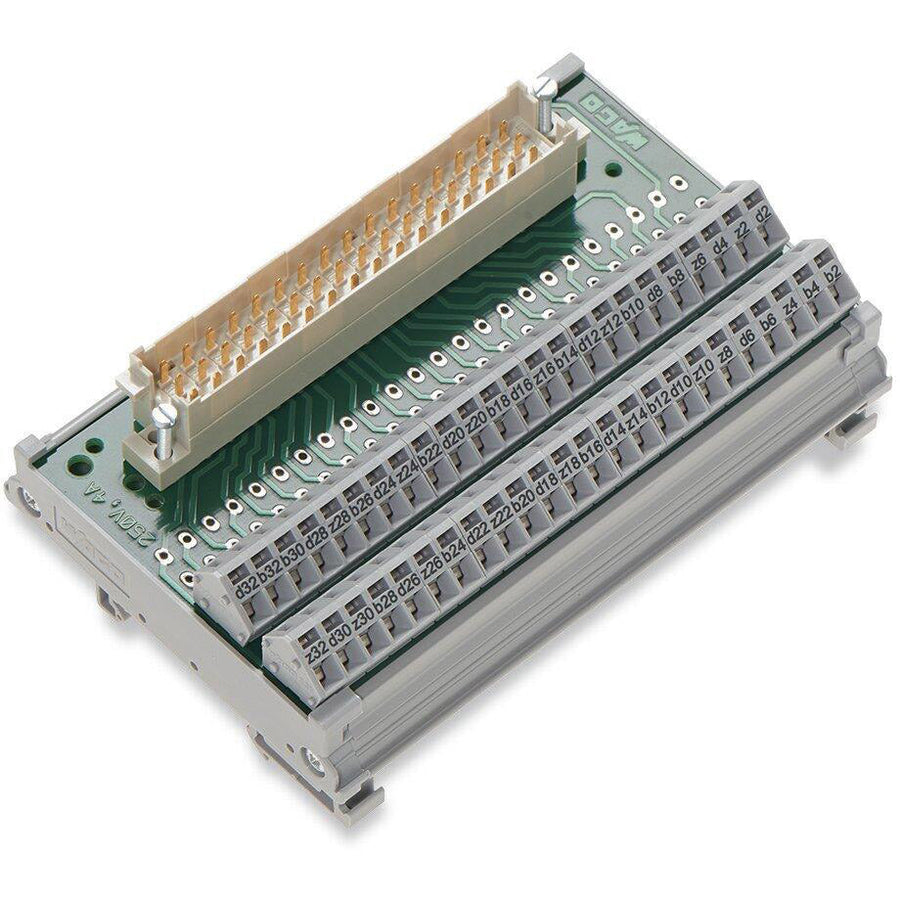

Interface module - in mounting carrier - WAGO (289 series) - 48-poles (48P) - with DIN 41612 (Type E) 48-pin male connector (system; vertical connection) + 2-row spring CAGE CLAMP 48-pin for 0.08...2.5mm2 cables (field) - Rated current 4A - DIN-35 rail mounting (128mm width) - equivalent to 289436

Specifications

  • Primary brand: WAGO
  • Functions: Interface module
  • Design: in mounting carrier
  • Poles: 48-poles (48P)
  • Rated current: 4A
  • Rated Voltage (DC): 50Vdc
  • Rated voltage (AC): 30Vac
  • Connection type: DIN 41612 (Type E) 48-pin male connector (system; vertical connection)|2-row spring CAGE CLAMP 48-pin for 0.08...2.5mm2 cables (field)
  • Mounting mode: DIN-35 rail
  • Dimensions: H85mm x W128mm x D39mm
  • Net Width (mm): 128mm
  • Humidity: ≤85% relative humidity (RH; non-condensing)
  • Customs Tariff Number: 85366990990
  • ETIM code: EC002780
  • GTIN code: 4045454432829
  • eClass code: 27-14-11-52
  • Order code / Manufacturer SKU: 289-436
  • Manufacturer product status: Commercialized
  • Equivalent to: 289436
  • EAN code: 4045454432829
  • Compliant with standard(s): RoHS compliant with exemption (6(c))
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Product title: Interface module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85366990990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-52
  • eCl@ss 9.0: 27-14-11-52
  • ETIM 8.0: EC002780
  • ETIM 9.0: EC002780
  • GTIN: 4045454432829
  • Packaging type: box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 3 (1) pcs

Connection data

  • Connection 1 - Connection type 1: System
  • Connection 1 - Mating direction: vertical
  • Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
  • Connection 1 - Pluggable connector: Pluggable connector per DIN 41612; Type F; Male connector
  • Connection 1 - Pole number 1: 48
  • Connection 2 - Connection technology: CAGE CLAMP®
  • Connection 2 - Connection type: Field
  • Connection 2 - Design 2: PCB terminal blocks (double-row)
  • Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 2 - Pole number 2: 48
  • Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
  • Connection 2 - WAGO connector 2: WAGO 236 Series
  • Performance level: 1 / 500 mating cycles

Electrical data

  • Contact resistance (max.): 16 mΩ
  • Nominal current: 4A
  • Operating voltage: ≤ 30 VAC; ≤ 50 VDC

Environmental Product Compliance

  • CAS-No.: 7439-92-1
  • REACH Candidate List Substance: Lead
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)
  • SCIP notification number (Austria): 7b7d912b-f443-4c5b-82ba-8a46e3547f4d
  • SCIP notification number (Belgium): faf975f6-24ff-4397-a609-b8c26dc29f80
  • SCIP notification number (Bulgaria): a8362302-e96c-4fd0-bb64-e7d1a8629b74
  • SCIP notification number (Czech Republic): 289c4c75-b3b1-4f88-a29d-aec9c80cde49
  • SCIP notification number (Denmark): 25f6f79c-9fbf-482f-8597-56556af1d0c3
  • SCIP notification number (Finland): 22622f05-1bb6-48bd-926e-3542eab493ec
  • SCIP notification number (France): 9275b0a6-46ee-4bbf-9b71-73c0391c6cd3
  • SCIP notification number (Germany): 74135dfb-3e3d-4247-8103-5f7596266082
  • SCIP notification number (Hungary): 55886a55-ce19-48ed-9b1f-4d71601ac192
  • SCIP notification number (Italy): b7ad57bb-1847-428d-9c51-b70896c72ec1
  • SCIP notification number (Netherlands): 289cfee0-3284-44b1-b045-d71989bfec69
  • SCIP notification number (Poland): 9a2d4b44-0f5c-4a7c-8cb6-9956ba366005
  • SCIP notification number (Romania): 20798123-ffeb-42d9-906d-57bcabdd2666
  • SCIP notification number (Sweden): a80010b1-088e-4c23-8e60-dc1d5c1b3d9e

Environmental requirements

  • Relative humidity: ≤ 85 % (non-condensing)

Material data

  • Contact material (connector): Copper alloy; gold plated
  • Fire load: 1.57MJ
  • Weight: 140.9g

Mechanical data

  • Housing design: PCB with mounting feet
  • Mounting type: DIN-35 rail

Physical data

  • Depth from upper-edge of DIN-rail: 39 mm / 1.535 inches
  • Height: 85 mm / 3.346 inches
  • Width: 128 mm / 5.039 inches

Safety and protection

  • Pollution degree: 2
  • Protection type: IP00
  • Rated impulse withstand voltage: 1.5kV
  • Rated voltage: 50V
