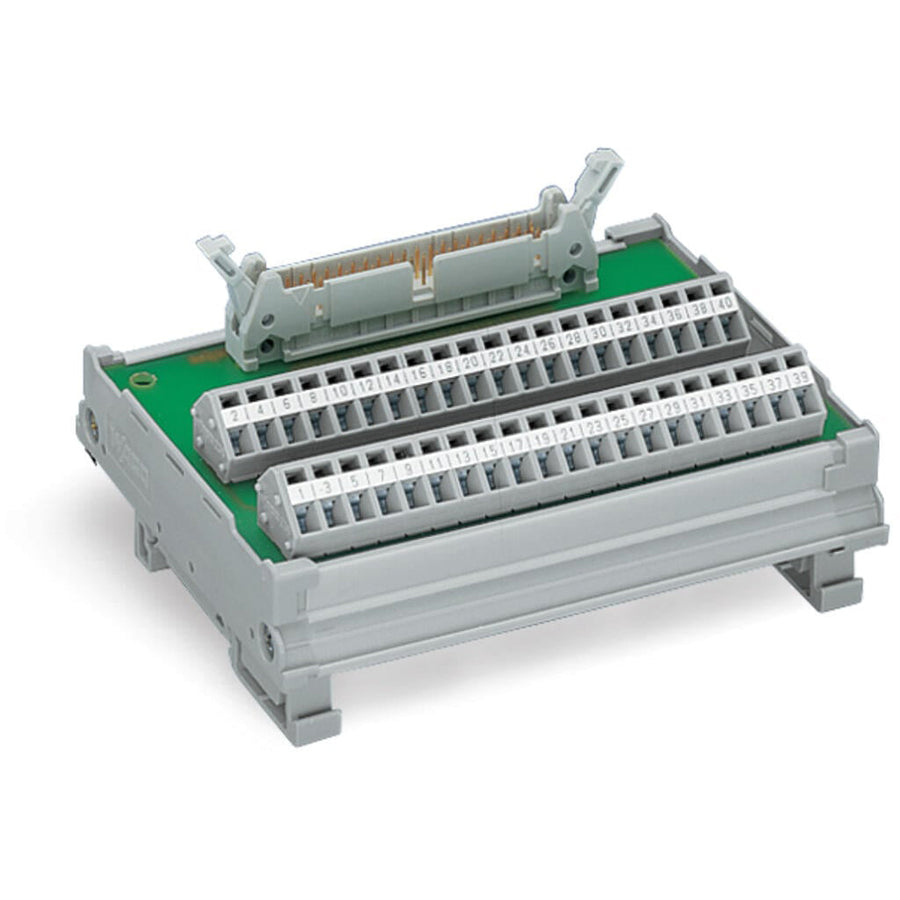

WAGO - 289-509

Interface module - in mounting carrier - WAGO (289 series) - 64-poles (64P) - with DIN 41651 64-pin male connector (system; vertical connection) + 2-row spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (170mm width) - rated for -20°C...+55°C ambient - equivalent to 289509

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier
• Poles: 64-poles (64P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: DIN 41651 64-pin male connector (system; vertical connection)|2-row spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W170mm x D36mm
• Net Width (mm): 170mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• GTIN code: 4045454343255
• eClass code: 27-14-11-52
• Order code / Manufacturer SKU: 289-509
• Manufacturer product status: Commercialized
• Equivalent to: 289509
• EAN code: 4045454343255
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454343255
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 3 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: DIN 41651 connector; male connector
• Connection 1 - Pole number 1: 64
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (double-row)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 64
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 236 Series
• Performance level: 3 / 50 mating cycles

Electrical data

• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 1.903MJ
• Weight: 167g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 36 mm / 1.417 inches
• Height: 85 mm / 3.346 inches
• Width: 170 mm / 6.693 inches

Safety and protection

• Dielectric strength (channel/channel) (AC, 1 min.): 0.75kV_rms
• Insulation type: Functional insulation
• Pollution degree: 2
• Protection type: IP00
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
