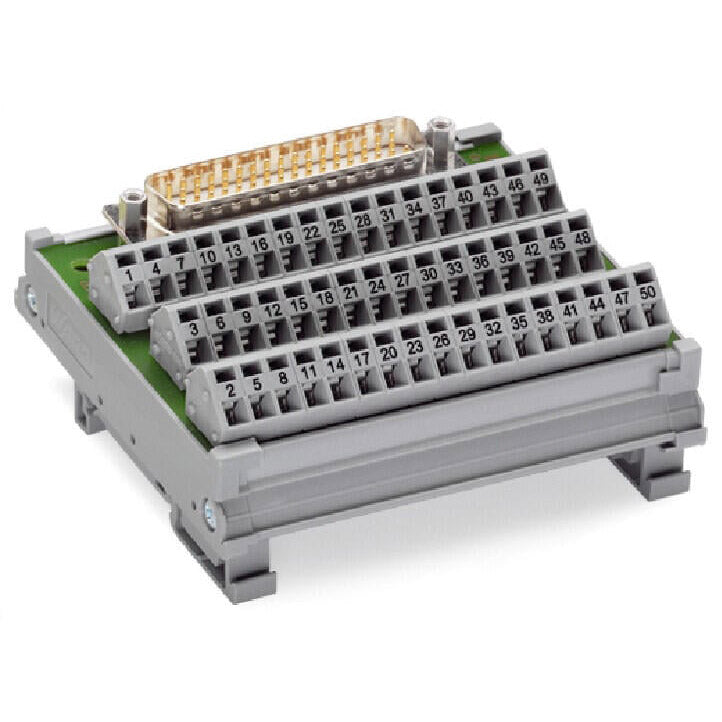

WAGO 289-544 Interface module with mating IDC connectors - in mounting carrier

Interface module with mating IDC connectors - in mounting carrier - WAGO (289 series) - 50-poles (50P) - with 50-pin D-sub male connector (system; vertical connection) + 3-row spring CAGE CLAMP 50-pin for 0.08...2.5mm2 cables (field) - Rated current 2A - DIN-35 rail mounting (94mm width) - rated for -20°C...+50°C ambient - equivalent to 289544

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: mating IDC connectors|in mounting carrier
• Poles: 50-poles (50P)
• Rated current: 2A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 50-pin D-sub male connector (system; vertical connection)|3-row spring CAGE CLAMP 50-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W94mm x D34mm
• Net Width (mm): 94mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85369010000
• ETIM code: EC002780
• eClass code: 27-14-11-52
• GTIN code: 4045454452216
• Order code / Manufacturer SKU: 289-544
• Manufacturer product status: Commercialized
• Equivalent to: 289544
• EAN code: 4045454452216
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.2 Sec.1|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454452216
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 3 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: D-subminiature male connector
• Connection 1 - Pole number 1: 50
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-row)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 50
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 236 Series
• Performance level: 2 / 200 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 30 mΩ
• Nominal current: 2A
• Operating voltage: ≤ 125 VAC/VDC

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 8bebd6e9-0e05-4fdf-811c-c5dba1336061
• SCIP notification number (Belgium): 1d5364e5-40a2-42f1-9a8c-0a701b7351f2
• SCIP notification number (Bulgaria): 9862e7f8-588b-4846-b592-95fda5f5358b
• SCIP notification number (Czech Republic): 5e3085b6-bbc1-4eb0-8b33-6042c5593337
• SCIP notification number (Denmark): 657cde4d-0221-47e6-b60f-949a5a95c85d
• SCIP notification number (Finland): 5b7ecd8d-9faf-45a2-ad55-a0516bdbc4f5
• SCIP notification number (France): 390fd549-2e39-4b57-a047-e1dd392ff083
• SCIP notification number (Germany): ba33c737-df4e-4840-a3ea-7137eef4b5a9
• SCIP notification number (Hungary): c873c66a-91f6-4e54-ace1-fcb04fd21cb2
• SCIP notification number (Italy): 962eb620-d19a-4cb7-a302-229d921905a0
• SCIP notification number (Netherlands): d5a3c85f-2626-403c-aa04-35017d70a01d
• SCIP notification number (Poland): 55f60432-5532-4bf8-a386-9ff01ec9cbb3
• SCIP notification number (Romania): 62c70e42-5127-4358-8741-e26fe3aa7535
• SCIP notification number (Sweden): dac45454-af16-4194-940a-05dec65e861f

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 1.318MJ
• Weight: 126.8g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 34 mm / 1.339 inches
• Height: 85 mm / 3.346 inches
• Width: 94 mm / 3.701 inches

Safety and protection

• Dielectric strength (channel/channel) (AC, 1 min.): 0.75kV_rms
• Insulation type: Functional insulation
• Pollution degree: 2
• Protection type: IP00
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
