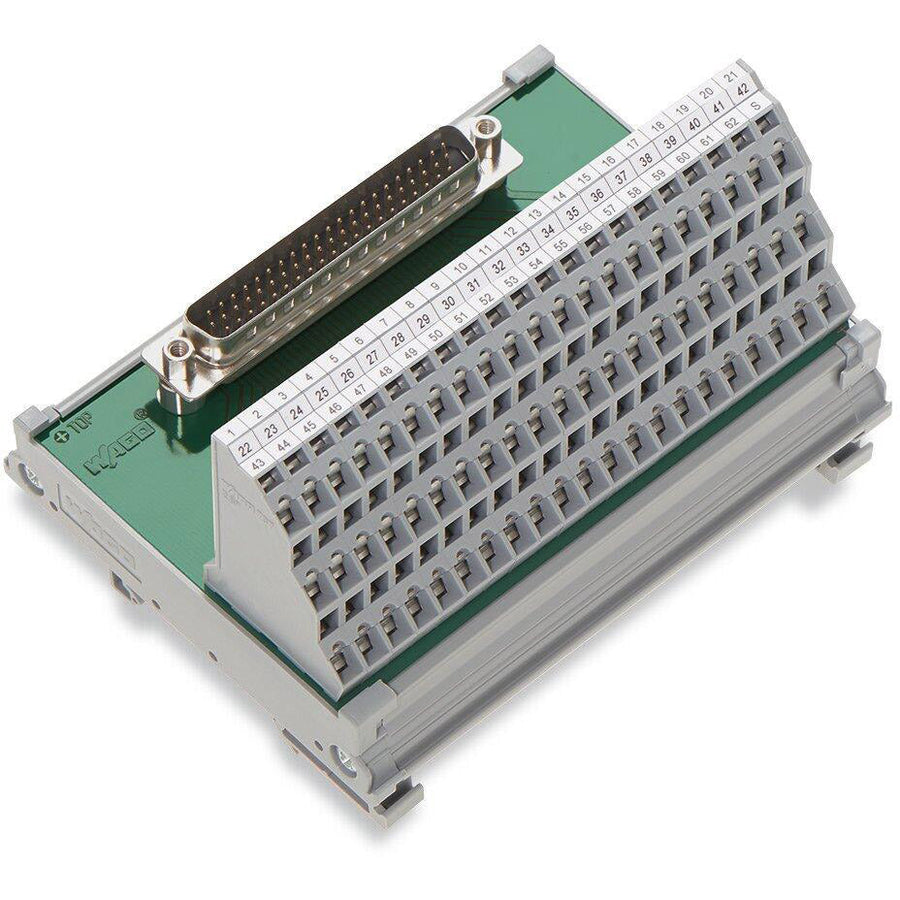

WAGO 289-710 Interface module with shielded connection - in mounting carrier

Interface module with shielded connection - in mounting carrier - WAGO (289 series) - 62-poles (62P) - with 62-pin HD-sub male connector (system; vertical connection) + triple-deck spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field) - Rated current 1A - DIN-35 rail mounting (62mm width) - IP20 - rated for -20°C...+55°C ambient - equivalent to 289710

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|in mounting carrier
• Poles: 62-poles (62P)
• Rated current: 1A
• Rated Voltage (DC): 125Vdc
• Rated voltage (AC): 125Vac
• Connection type: 62-pin HD-sub male connector (system; vertical connection)|triple-deck spring CAGE CLAMP 64-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W62mm x D62mm
• Net Width (mm): 62mm
• Ambient air temperature for operation: -20°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• eClass code: 27-14-11-52
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• GTIN code: 4017332817202
• Order code / Manufacturer SKU: 289-710
• Manufacturer product status: Commercialized
• Equivalent to: 289710
• EAN code: 4017332817202
• Compliant with standard(s): EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4017332817202
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 4 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: HD D-sub male connector
• Connection 1 - Pole number 1: 62
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (triple-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 64
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 737 Series
• Performance level: 3 / 50 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 15 mΩ
• Nominal current: 1A
• Operating voltage: ≤ 125 VAC/VDC
• Specialty functions: with shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 008238af-7e58-409b-a80f-1d465ad920f9
• SCIP notification number (Belgium): 41b525f5-0928-4d5d-a4af-da18e543a037
• SCIP notification number (Bulgaria): 38839f4f-a31f-407d-8738-c3eeac1a8d87
• SCIP notification number (Czech Republic): e326402f-f3fb-46ab-83ea-aca01d3ebcf3
• SCIP notification number (Denmark): 49121548-7b27-48bf-a2e3-e1d6c93e469b
• SCIP notification number (Finland): ce7fd2c5-4a29-4c22-89dd-a6f575590b05
• SCIP notification number (France): f1a581ef-1f7a-4179-8006-d04fa2e77e4a
• SCIP notification number (Germany): 220fb34a-b523-4db3-b4d4-22140de252f2
• SCIP notification number (Hungary): c777e863-b321-445b-9d02-4ed2af5b8186
• SCIP notification number (Italy): eacaaaa2-5393-490b-bcd7-26707cae2c1b
• SCIP notification number (Netherlands): ff6511c9-72db-475f-a6df-3efaf96e36f1
• SCIP notification number (Poland): a9a9a2e8-13f0-45d0-ae91-df17105702ad
• SCIP notification number (Romania): 4daef53c-1d5b-4d7a-9a2e-ca477024ae22
• SCIP notification number (Sweden): 64e4a169-dbd3-4304-a6da-e0573cfda631

Environmental requirements

• Ambient temperature (operation): -20 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 1.433MJ
• Weight: 170.8g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 62 mm / 2.441 inches
• Height: 85 mm / 3.346 inches
• Width: 62 mm / 2.441 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 0.8kV
• Rated voltage: 125V

Standards and specifications

• Standards/specifications: EN 61010-2-201
