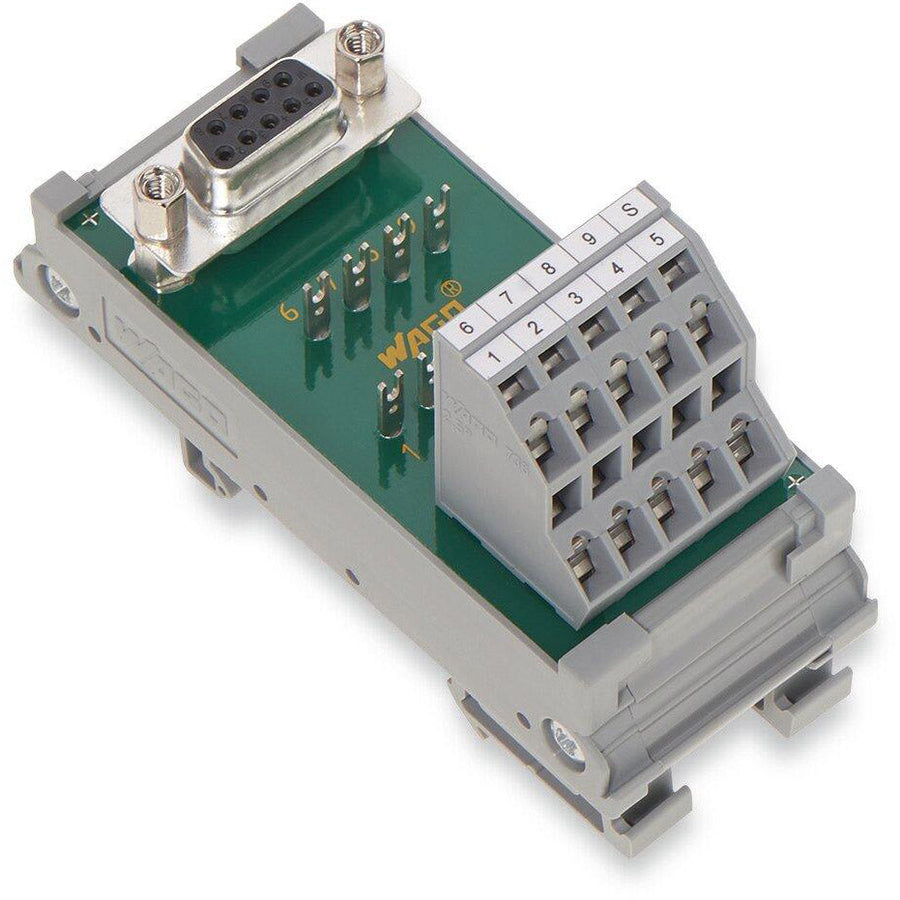

WAGO 289-725 Interface module with solder pin + shielded connection - in mounting carrier

Interface module with solder pin + shielded connection - in mounting carrier - WAGO (289 series) - 9-poles (9P) - with 9-pin D-sub female connector (system; vertical connection) + double-deck spring CAGE CLAMP 10-pin for 0.08...2.5mm2 cables (field) - Rated current 2A - DIN-35 rail mounting (33.5mm width) - rated for -20°C...+50°C ambient - equivalent to 289725

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: solder pin|shielded connection|in mounting carrier
• Poles: 9-poles (9P)
• Rated current: 2A
• Rated Voltage (DC): 50Vdc
• Rated voltage (AC): 30Vac
• Connection type: 9-pin D-sub female connector (system; vertical connection)|double-deck spring CAGE CLAMP 10-pin for 0.08...2.5mm2 cables (field)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W33.5mm x D48mm
• Net Width (mm): 33.5mm
• Ambient air temperature for operation: -20°C...+50°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• eClass code: 27-14-11-52
• ETIM code: EC002780
• GTIN code: 4045454371227
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-725
• Manufacturer product status: Commercialized
• Equivalent to: 289725
• EAN code: 4045454371227
• Compliant with standard(s): EN 61010-2-201|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: Interface module - solder pin - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454371227
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 8 (1) pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Mating direction: vertical
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Pluggable connector: D-subminiature female connector
• Connection 1 - Pole number 1: 9
• Connection 2 - Connection technology: CAGE CLAMP^®
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: PCB terminal blocks (double-deck)
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Pole number 2: 10
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - WAGO connector 2: WAGO 736 Series
• Performance level: 2 / 200 mating cycles
• Strain relief: UNC 4-40 stud bolt

Electrical data

• Contact resistance (max.): 30 mΩ
• Nominal current: 2A
• Operating voltage: ≤ 30 VAC; ≤ 50 VDC
• Specialty functions: With solder pin|with shield connection

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): a1c979d0-7c2c-4a0a-9a12-e7de467e4d80
• SCIP notification number (Belgium): 73a3e206-15bc-4ec0-ab0e-676e8c2c9f32
• SCIP notification number (Bulgaria): 16be40d4-c9cf-4b86-a737-4b7774a8026c
• SCIP notification number (Czech Republic): 893ceba5-bede-4281-b096-858f1302c88e
• SCIP notification number (Denmark): 95219cac-224e-4002-bc18-e86800609176
• SCIP notification number (Finland): bac88b6b-f458-405f-9ee2-e8415f7d00ae
• SCIP notification number (France): 23c555c5-d4b4-461a-9e14-7d5268768377
• SCIP notification number (Germany): a799dc4c-a9dd-4f40-a998-48918b8b4411
• SCIP notification number (Hungary): f18314c4-adc0-464b-9475-67cc096446eb
• SCIP notification number (Italy): 1c34d755-b188-452c-9a33-2eae8a52ac64
• SCIP notification number (Netherlands): fc83c792-aad5-42cc-bf5b-abc18fe536cf
• SCIP notification number (Poland): e77e6278-1e75-47e2-becc-1f5e5cf2d60c
• SCIP notification number (Romania): 5739de6d-e3a8-4afa-a24d-09260754f306
• SCIP notification number (Sweden): 6385a8bd-0ba7-48b3-83cc-d6684e57e41e

Environmental requirements

• Ambient temperature (operation): -20 … +50 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Fire load: 0.856MJ
• Weight: 50.9g

Mechanical data

• Housing design: Mounting carrier
• Mounting type: DIN-35 rail

Notes

• Note: One solder terminal per pole is available for testing and patching (except for shield contact).

Physical data

• Depth from upper-edge of DIN-rail: 48 mm / 1.89 inches
• Height: 85 mm / 3.346 inches
• Width: 33.5 mm / 1.319 inches

Safety and protection

• Dielectric strength (channel/channel) (AC, 1 min.): 1.3kV_rms
• Insulation type: Functional insulation
• Pollution degree: 2
• Protection type: IP00
• Rated voltage: 50V

Standards and specifications

• Standards/specifications: EN 61010-2-201
