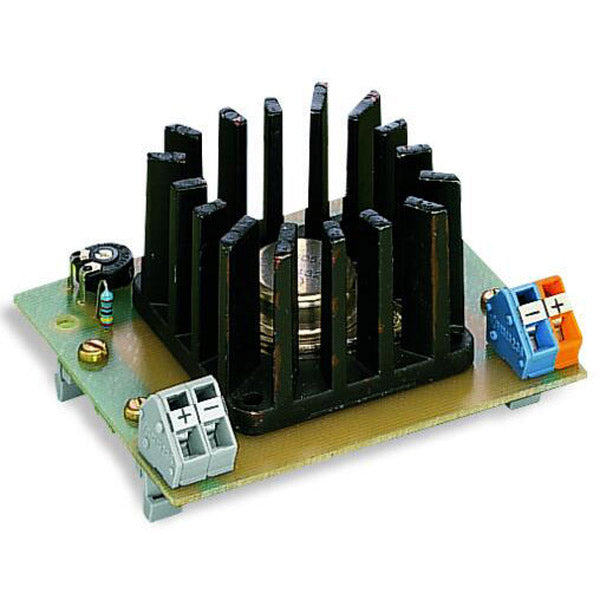

WAGO - 289-907

Constant DC voltage source module - WAGO (289 series) - 24Vdc / 3A / 48W output - Input voltage 27-35Vdc (DC) - with CAGE CLAMP spring connections - DIN-35 rail mounting (78.5mm width) - rated for -25°C...+40°C ambient - equivalent to 289907

Specifications

• Primary brand: WAGO
• Functions: Constant DC voltage source module
• Supply voltage (DC): 27-35Vdc
• Type of network: DC
• Rated current: 3A
• Rated power: 48W
• Output voltage (DC): 24Vdc|21.6-26.4Vdc
• Connection type: CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Dimensions: H39mm x W78.5mm x D66mm
• Net Width (mm): 78.5mm
• Ambient air temperature for operation: -25°C...+40°C
• Customs Tariff Number: 85044083900
• ETIM code: EC002540
• eClass code: 27-04-07-01
• GTIN code: 4050821157557
• Order code / Manufacturer SKU: 289-907
• Manufacturer product status: Commercialized
• Equivalent to: 289907
• EAN code: 4050821157557
• Compliant with standard(s): CE|RoHS compliant with exemption (7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: Constant DC voltage source module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4050821157557
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 236 Series

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): 2dfe8c6c-8af9-4667-a2b2-239ac06daa6b
• SCIP notification number (Belgium): 69dc9620-5adc-4bdf-86c3-4af1dc991829
• SCIP notification number (Bulgaria): 9c65da16-107c-41cc-881c-b963a0beea2e
• SCIP notification number (Czech Republic): 9cbd42be-360e-48c8-a2ba-a89cedc26980
• SCIP notification number (Denmark): 92ee9086-8727-4ea1-b8f9-918e3b1e8d58
• SCIP notification number (Finland): 75ff3c3a-9d5f-4bbb-ab89-916596539fa2
• SCIP notification number (France): 9b2d5da7-eb0d-4968-9c3d-92664fc3eef5
• SCIP notification number (Germany): 11ca3c5f-1f86-4a07-bd96-6b1f65ffbb59
• SCIP notification number (Hungary): 688585c9-b954-46d0-ab5b-58de8d2e0c22
• SCIP notification number (Italy): c448831e-a0ea-4567-ae8a-571e7eb30085
• SCIP notification number (Netherlands): 54aad77c-75f6-437a-b357-9aeee094730e
• SCIP notification number (Poland): a55a37df-225d-4646-9609-c36ca14dd34d
• SCIP notification number (Romania): 811c5318-3fd1-4222-9ec7-7a2eb0d1cf8c
• SCIP notification number (Sweden): c47744d8-ac4a-418f-a858-6df75f86d0b2

Environmental requirements

• Ambient temperature (operation): -25 … +40 °C

Material data

• Fire load: 0.056MJ
• Weight: 170.7g

Mechanical data

• Housing design: PCB with mounting feet
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 66 mm /
• Height: 39 mm
• Width: 78.5 mm / 3.091 inches

Safety and protection

• Pollution degree: 2
• Protection type: IP00; per EN 60529
• Series operation: No

Standards and specifications

• Conformity marking: CE

Technical data

• Input - Input voltage range: 27 … 35 VDC
• Input - Nominal mains frequency range: 0 Hz
• Output - Nominal output current I_{o nom}: 3 A
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Output - Output voltage range: ±10 %
