WAGO - 294-4032

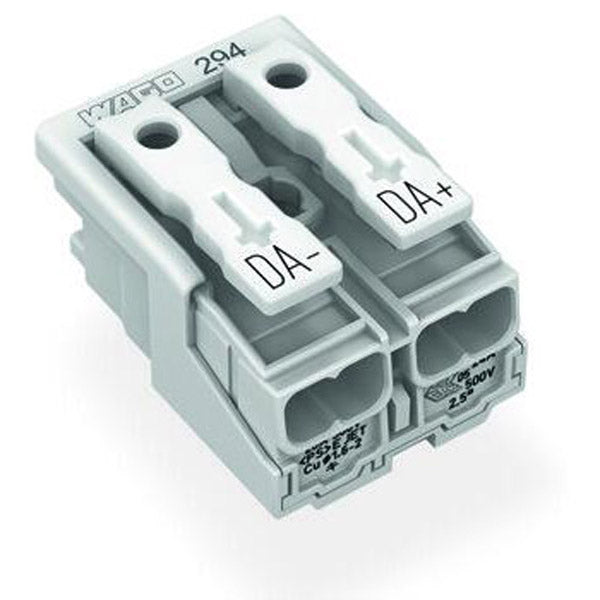

Lighting connector - with "DA / DA+" marking - WAGO (294 series) - 2-poles (2P) - for 0.5mm2...2.5mm2 / for #18AWG...#14AWG - Rated current 24A - White color - with Push-in CAGE CLAMP spring connections - Snap-in mounting - equivalent to 2944032

Specifications

• Primary brand: WAGO
• Functions: Lighting connector
• Poles: 2-poles (2P)
• Rated current: 24A
• Color: White
• Rated operating voltage (Ue): 500V
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...2.5mm2 conductor|for #18AWG...#14AWG fine stranded and stranded conductors|for #18AWG...#12AWG fine solid conductors
• Mounting mode: Snap-in
• Dimensions: H17mm x W20mm x D27.3mm
• Material: Polycarbonate (PC)|Halogen-free materials
• eClass code: 27-14-11-06
• ETIM code: EC001284
• Customs Tariff Number: 85369010000
• GTIN code: 4050821097730
• Order code / Manufacturer SKU: 294-4032
• Manufacturer product status: Commercialized
• Equivalent to: 2944032
• EAN code: 4050821097730
• Compliant with standard(s): General approvals|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC16003151782|- ENEC 05 - DEKRA Certification B.V. - EN 60998 - certificate 2128791.01|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group IIIa|V-0 flammability rating
• Location of origin: Switzerland
• Marking: "DA / DA+"
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Lighting connector - WAGO

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4050821097730
• Packaging type: Foil
• Product Group: 8 (Misc. Chassis Mount Blocks)
• PU (SPU): 1000 pcs

Connection data

• Clamping units: 10
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Connection type 1: External 1
• Connection 1 - Fine-stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.5 mm² / 18 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
• Connection 1 - Number of connection points: 2
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.5 … 2.5 mm² / 18 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.5 … 2.5 mm² / 18 … 12 AWG
• Connection 1 - Stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Connection 2 - Actuation type: Push-in
• Connection 2 - Connection technology: PUSH WIRE^®
• Connection 2 - Connection type: Internal 2
• Connection 2 - Fine-stranded conductor; with insulated ferrule: 0.5 … 1 mm² / 18 … 16 AWG
• Connection 2 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 14 AWG
• Connection 2 - Number of connection points: 1
• Connection 2 - Solid conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
• Connection 2 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 3 - Actuation type: Push-in
• Connection 3 - Connection technology: PUSH WIRE^®
• Connection 3 - Connection type: Internal 3
• Connection 3 - Fine-stranded conductor; with insulated ferrule: 0.5 … 0.75 mm² / 18 AWG
• Connection 3 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1 mm² / 18 AWG
• Connection 3 - Number of connection points: 1
• Connection 3 - Solid conductor: 0.5 … 1.5 mm² / 18 … 16 AWG
• Connection 3 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 4 - Actuation type: Push-in
• Connection 4 - Connection technology: PUSH WIRE^®
• Connection 4 - Connection type: Internal 4
• Connection 4 - Number of connection points: 1
• Connection 4 - Solid conductor: 0.5 … 0.75 mm² / 18 AWG
• Connection 4 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Number of connection types: 4
• PE function: without PE contact
• Total number of potentials: 2

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 500V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60998-1
• Ratings per IEC/EN – Notes - Ratings (note): Connection points
• Ratings per IEC/EN 2 - Rated current: 24A
• Ratings per IEC/EN 2 - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN 2 - Rated voltage (II/2): 500V
• Ratings per IEC/EN 2 - Ratings (note): Connection points
• Ratings per IEC/EN 2 - Ratings per: IEC/EN 60998-2-2

Environmental Product Compliance

• REACH Candidate List Substance: Perfluorobutane sulfonic acid (PFBS) and its salts
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 41386470-7443-4075-8be2-93319fd061c3
• SCIP notification number (Belgium): 872b1208-6def-4389-ae1d-48b0a8c9fa4f
• SCIP notification number (Bulgaria): cb7dd632-f56e-4352-b7e7-66f809d94eba
• SCIP notification number (Czech Republic): 06ade38b-c9d1-4717-b8e5-e64f44eecfbe
• SCIP notification number (Denmark): aafe92df-1507-4a83-a55e-2cd912dc3840
• SCIP notification number (Finland): bafa3fb1-32fc-452f-bcee-28ea5dd61532
• SCIP notification number (France): 4362e940-d406-4d1f-9b17-1b3e752e2141
• SCIP notification number (Germany): a4abbef0-aac8-443f-8131-5456c589fad4
• SCIP notification number (Hungary): afdb5ac3-124e-432b-9875-3441bf574753
• SCIP notification number (Italy): 0176a0a4-7325-4763-9143-c78b2b472519
• SCIP notification number (Netherlands): 4f4ca581-c5a5-419b-a977-e309b70f6dd0
• SCIP notification number (Poland): b2522616-6a7b-4dcb-b3f5-6c4c8e2d6a2b
• SCIP notification number (Romania): 1223226d-5e25-4564-a07b-6bc522518645
• SCIP notification number (Sweden): 6e5e15b7-e7f4-4772-a957-f00378e7b4f8

Environmental requirements

• T marking: T85
• Temperature stability: 120°C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: white
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.121MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 6.1g

Mechanical data

• Marking: DA- DA+
• Mounting type: without snap-in mounting feet

Physical data

• Depth: 27.3 mm / 1.075 inches
• Height from the surface: 17 mm / 0.669 inches
• Pin spacing: 10 mm / 0.394 inches
• Width: 20 mm / 0.787 inches
